Description
Complete kit for automating a SLIDING GATE
1600 kg
OIL-BATH
ideal for automating gates for intensive/industrial use
Professional
Model KV16 230V
SKU: KIT-KV16
External-installation electromechanical gear motor in an OIL BATH, with all-metal gears, ensuring performance and reliability
Sophisticated pre-wired electronic control unit.
Advanced: thanks to independent management of the opening and closing travel.
Safe: thanks to the photocell monitoring function, which checks that the photocells are operating correctly before each movement.
Base made entirely of die-cast aluminium.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

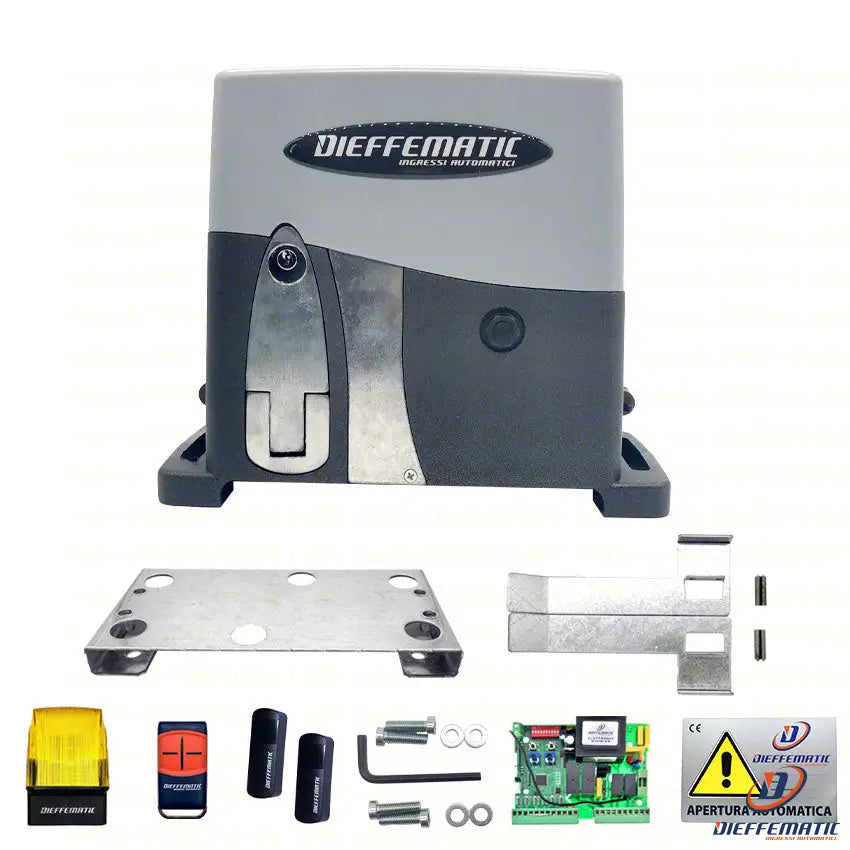

KIT CONTENTS:
1 electromechanical gear motor, 1600 kg (with built-in electronic control unit), 220V power supply with key release, dimensions H257 × W290 × D135 mm. Speed 12 m/min (UNI 8612 standard), weight 13 kg
1 galvanised foundation plate
1 control unit located in the motor housing, with motor force adjustment trimmer and obstacle detection, opening and closing slow-down, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges
1 single-channel radio receiver built into the control unit (433.9 MHz)
1 antenna built into the control unit, range 20 metres (433.9 MHz)
1 4-channel Rolling Code remote control
1 pair of wall-mounted photocells
1 230V flashing light
1 warning sign
1 set of installation accessories
1 set of instructions for installing the mechanical and electronic parts in ITALIAN
24-month warranty
