Description
Complete kit for sliding gate automation
1000 kg
OIL-BATH LUBRICATED
ideal for automating gates in intensive-use applications.
Model KV10 230 V
SKU: KIT-KV10
External-installation electromechanical gear motor with all-metal gears, ensuring performance and reliability.
Pre-wired and protected electronic control unit.
Simple, reliable and compact control unit with integrated radio receiver, able to store up to 1000 remote controls.
Advanced control unit with extensive motion adjustment options. Integrated radio receiver.
Reliable, thanks to all-metal gears.
Base made entirely of die-cast aluminium.
ABS cover with UV-protective additive.
Custom key release: convenient, intuitive and secure.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL
KIT CONTENTS:
No. 1 1000 kg electromechanical gear motor (with integrated electronic control unit), 220 V power supply with key release, dimensions H257XL290XP135 mm. Speed 12 m/min (UNI 8612 standard), weight 13 kg
No. 1 galvanized foundation plate
No. 1 control unit housed in the motor casing, with motor force adjustment trimmer and obstacle detection, slowdown on opening and closing, 4 operating modes: step-by-step, semiautomatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, inputs for photocells and safety edges
No. 1 single-channel radio receiver integrated into the control unit (433.9 MHz)
No. 1 antenna integrated into the control unit, range 20 metres (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 pair of wall-mounted photocells

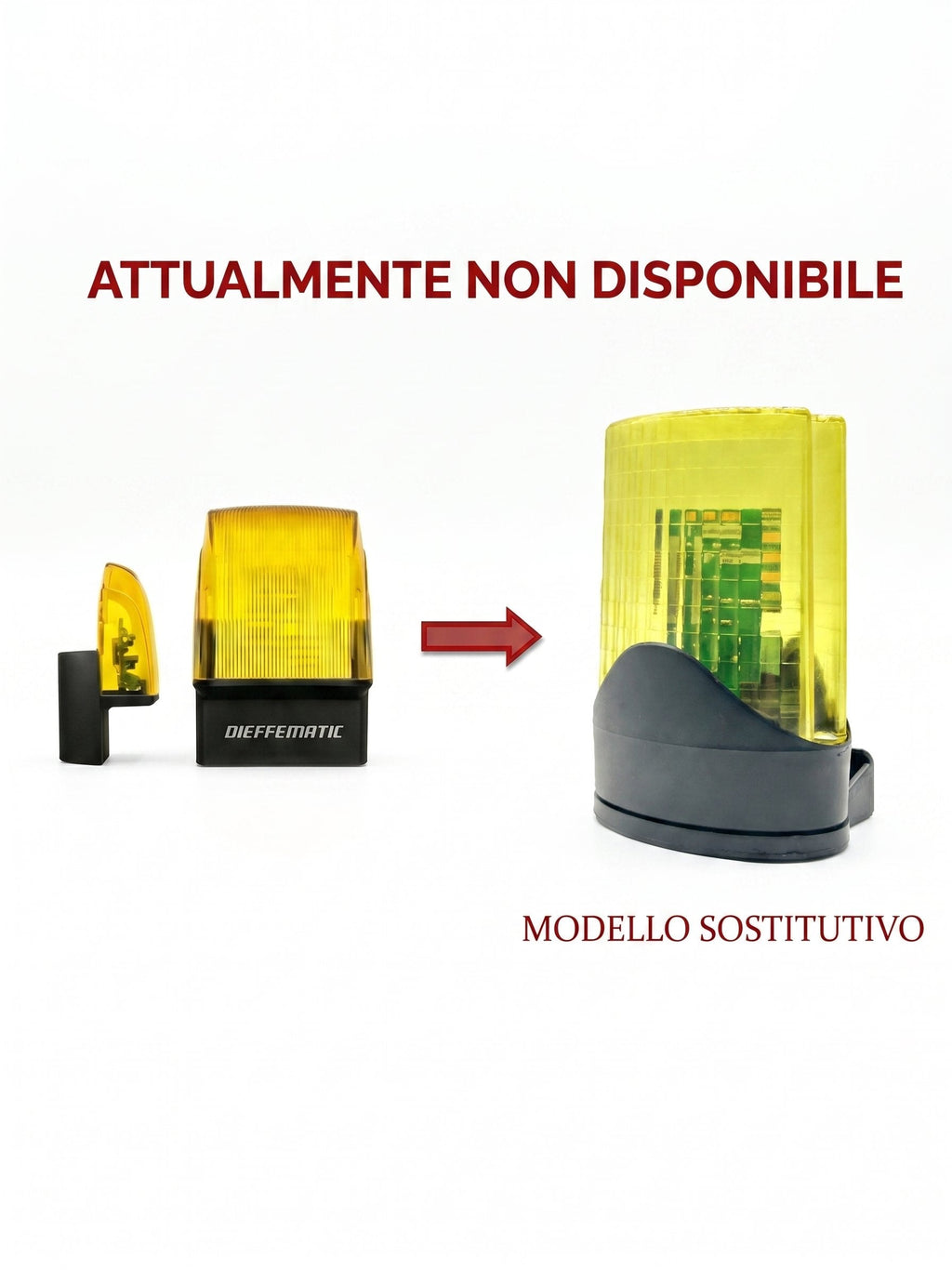

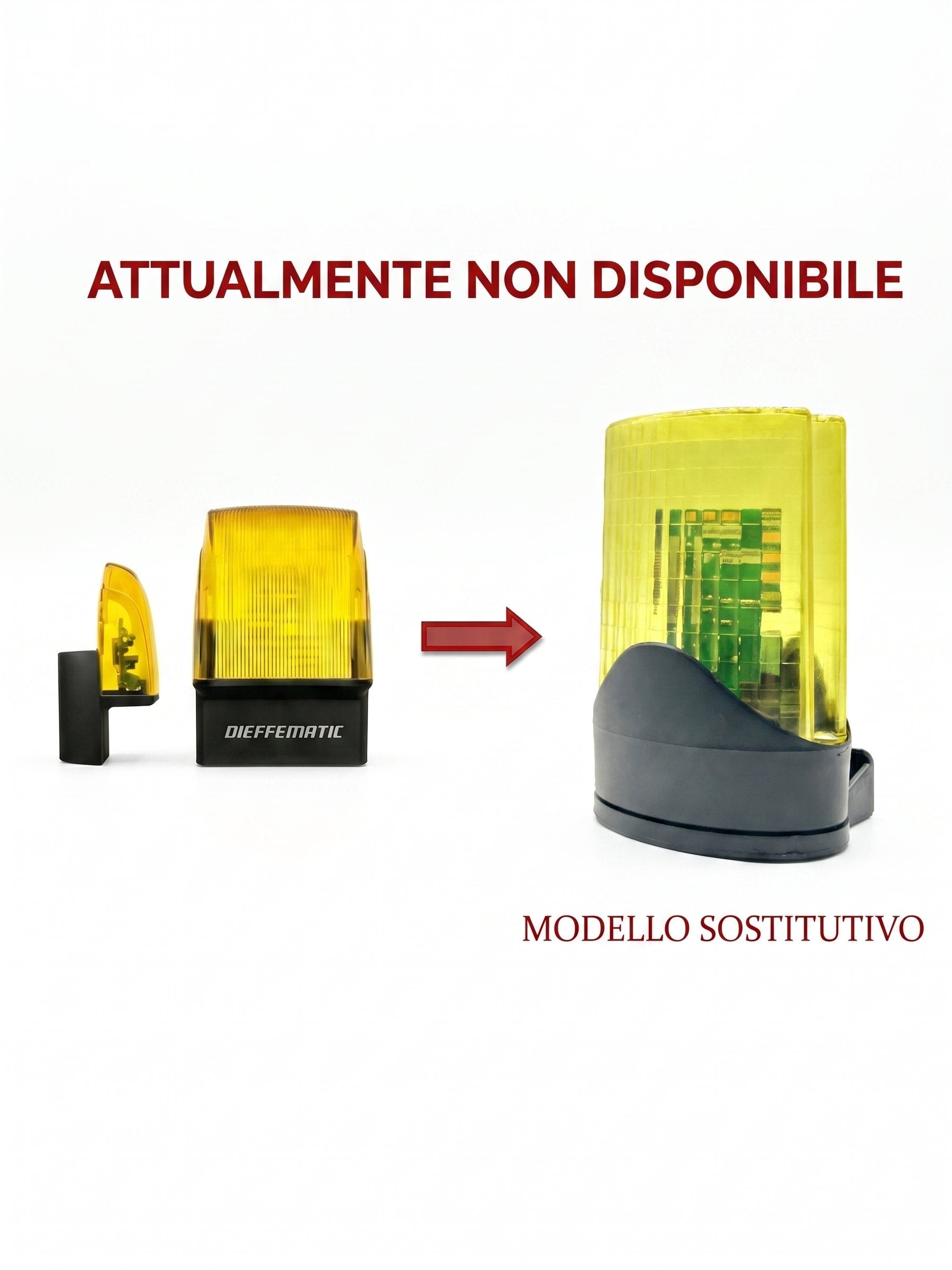

No. 1 230 V LED flashing light
No. 1 warning sign
No. 1 installation accessories
No. 1 mechanical and electronic installation manual in ITALIAN
24-month warranty
