Description
Outdoor Traffic Light IP65, 2 Lights, Red and Green, 24 Red LEDs, 24 Green LEDs, Ø 124 mm Lens, Extruded Aluminum Housing, ABS Mounting Brackets, 180° Adjustable, Replacement for Parking Garage Traffic Light System
Mod. SS-SDLS2LRIRE
SKU: SS-SDLS2LRIRE

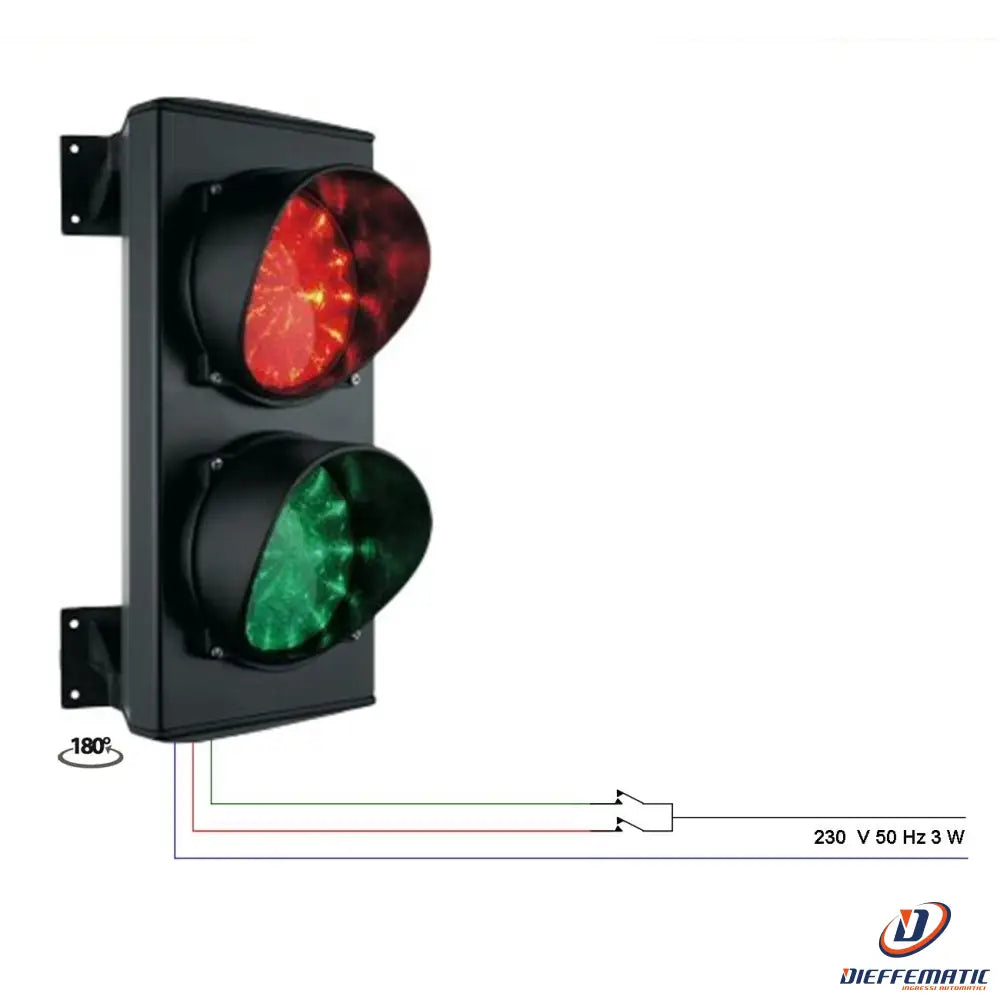

SS-SDL 2-Light LED Traffic Light. Traffic Light Features: Point-source light emitted by a circuit board with 24 red LEDs and a circuit board with 24 green LEDs. LED lifespan (laboratory tests): 100,000 hours. Front glass panel with lens effect, Ø 124 mm. Individual traffic light housing made of extruded aluminum. Supplied with self-extinguishing ABS wall-mounting brackets. Horizontal rotation; 90° right and 90° left. IP65 protection rating. Traffic light dimensions H345XL160XP280 mm. Weight 1.58 kg. Power supply 230 V 50 Hz 3 W. Use as a replacement; or as a manually controlled traffic light system to regulate the passage of vehicles and people in apartment buildings, garage ramps, private roads, car washes, parking lots, shops, and loading and unloading areas with an attendant. Product assembled and selected at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults. Complies with all European directive standards: UNI EN 12453-EN 12445 CEE 89/336 + 93/68 D.L. 04/12/1992 N. 476. ETSI EN 301 489-3 V1.4.1 (08-2002), EN 60730-1: 2003. Radio Equipment Directive 2014/53/EU. Electromagnetic Compatibility Directive 2014/30/EU. Compliance with regulations for garages and apartment buildings: D.M. 01-02-1986 (G.U. n. 38 of 15 February 1986) and D. LGS 81 del 2008
LIST OF COMPONENTS FOR SALE:
01 SS-SDL 2-Light Traffic Light with 24 Green and 24 Red LED Circuit Boards, 230 V. 3 W, Adjustable Wall Mount (Pole Brackets Optional)
01 SH-SRS Circuit Board with 24 High-Brightness Red LEDs, Point-Source Light, Wired Inside the Traffic Light, Power Supply 230 V 50 Hz 3 W
01 SH-SVS Circuit Board with 24 High-Brightness Green LEDs, Point-Source Light, Wired Inside the Traffic Light, Power Supply 230 V. 50 Hz 3 W
01 SV-GAR 24-Month Warranty Certificate. Lifetime Coverage Against Manufacturing Defects and Faults: Must Be Installed by Qualified Personnel D.M.37/2008
01 SV-IST Detailed Assembly Instructions Must Be Followed: Fasteners, Particularly the Connections
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
