Description

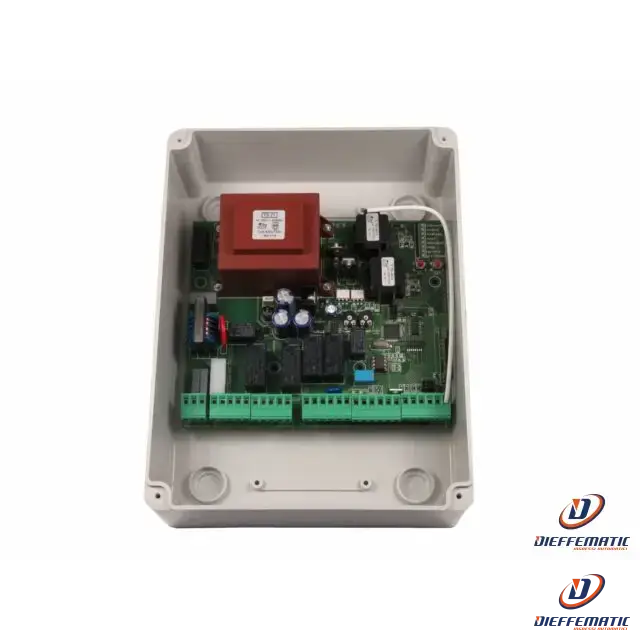

Electronic control unit for gates
Mod. LRS 2299 SET/NT 433,92 MHz
SKU: 93830003
Electronic control unit for swing and sliding gates with built-in radio receiver. 12V electric lock output. Initial motor torque boost, adjustable motor force, adjustable slowdown, two limit switch inputs for each of the two motors, management of control button operating modes, obstacle detection and adjustable intervention sensitivity. Numerous other functions available.
Optional modules can be added to provide additional functions.
• Power supply: 230Vac 50/60 Hz 2000 W max.
• Flashing light output: 230 Vac 50-60 Hz 500W max.
• Motor output: 230Vac 750 W max.
• Electric lock output: 12 Vdc 15 W max.
• Photocell power supply: 24 Vdc 5 W max.
• Indicator light output: 24 Vdc 4 W max.
• Command, safety device and low-voltage limit switch inputs: 24Vdc
• Number of radio controls that can be stored: 120 max.
• Box dimensions: 240x185x110 mm.
24-month warranty
