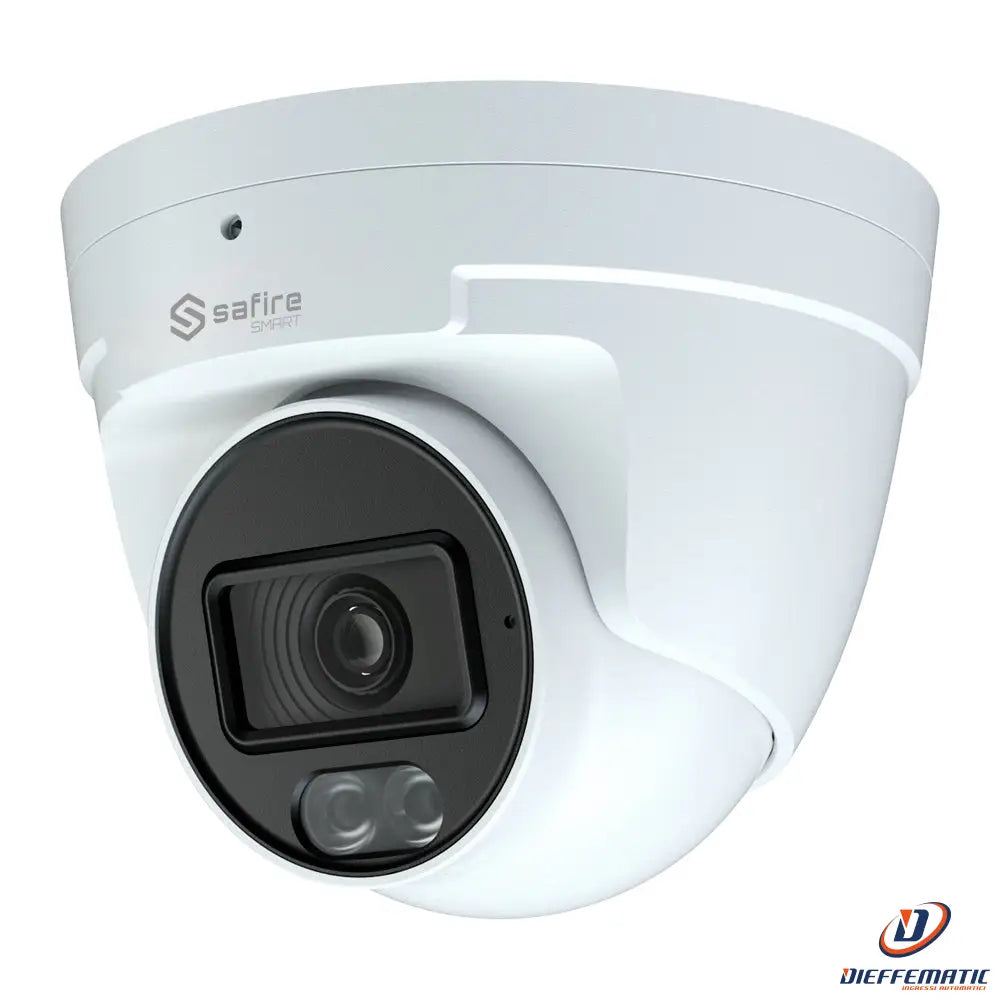

Safire Smart Sf-T020Ca-5B1-0360 Turret camera

Turret camera

Model SF-T020CA-5B1-0360

SKU: SF-T020CA-5B1-0360

• Safire Smart

• B1 range 3-in-1 turret camera

• 5 MP (2560x1936), 1/2.5" CMOS

• 3.6 mm lens | 30 m white LED illumination

• DWDR, HLC, BLC, AGC

• Waterproof IP67


DESCRIPTION:

• Safire Smart

• B1 Economy Night Color range

• HDTVI, HDCVI and AHD turret camera

• 1/2.5" CMOS

• 5 MP (2560x1936)

• 3-in-1 output

• 3.6 mm lens

• 24/7 color image

• 0 Lux

• 30 m range with white LED

• 2D DNR

• Mirror

• HLC, BLC, AGC, DWDR

• Built-in microphone, audio over coaxial cable

• Waterproof IP67


SPECIFICATIONS:

Brand
Safire Smart

Range
B1 Economy Night Color

Image sensor
1/2.5" CMOS

Maximum resolution
5 MP (2560x1936)

Resolution
5MP@20fps /4MP@30fp

Lens
3.6 mm (H: 88.6°, V: 72.4°, D: 101.3°)

Minimum illumination
0.01 Lux @(F1.2, AGC ON)

LED illumination
Up to 30 m with white LED

Day / Night
Auto / Color / B&W (Black and white)

Video output
1 x switchable BNC HDTVI / HDCVI / AHD

Video output switching
Via switch

Audio
Built-in microphone, audio over coaxial cable

Basic functions
OSD menu (remote)

Configurable OSD functions
DWDR, 2D/3D-DNR, AWB, ATW, BLC, AGC, Mirror

Lens positioning
3 Axis

Power supply
DC 12 V / 250 mA, 3W max

Protection rating
Waterproof IP67

Operating temperature
-30° C ~ +50° C

Material
Metal body and plastic bracket

Dimensions
82.8 (L) x 94.6 (Ø) mm

Weight
390 g


CONTENTS:

• Safire Smart turret camera

• 3 wall plugs and 3 mounting screws

• Quick installation guide

• Installation template

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
