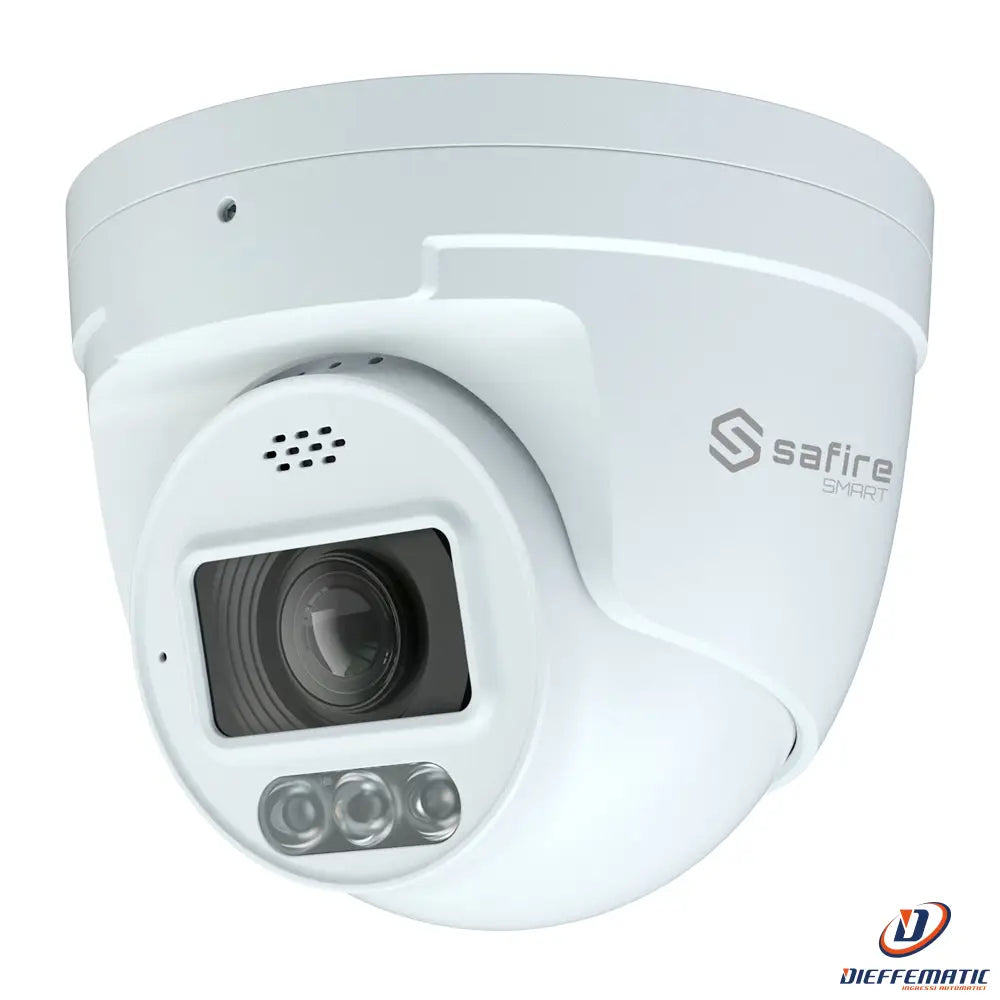

Safire Smart SF-IPT511ZCA-8I1-SL I1 IP Turret Camera

I1 IP Turret Camera

Mod. SF-IPT511ZCA-8I1-SL

SKU: SF-IPT511ZCA-8I1-SL

• Safire Smart

• I1 range IP Turret Camera with Active Deterrence

• 8 Megapixel resolution (3840x2160)

• 2.8-12 mm lens | MIC & Speaker | Dual light 40m

• AI: People and vehicle classification

• IP67 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I1 range with Artificial Intelligence

• IP Turret Camera

• 1/1.8" Progressive Scan CMOS

• 8 Megapixel (3840x2160)

• Motorized 2.8-12 mm lens

• 0 Lux

• Dual illumination: IR and white LED with 40 m range

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Built-in microphone and speaker

• Audio

• Alarms

• Advanced Artificial Intelligence: detection of people, vehicles and non-motorized vehicles

• Face capture

• Video metadata

• People, vehicles and non-motorized vehicles counting

• Active deterrence: Red and blue flashing lights with custom audio message

• WEB, CMS, Smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• IP67 waterproof


SPECIFICATIONS:

Brand
Safire Smart

Range
I1 with active deterrence

Image sensor
1/1.8" Progressive Scan CMOS

Maximum resolution
8 Megapixel (3840x2160)

Minimum illumination
Color: 0.03 Lux @(F1.6, AGC ON), 0 Lux with LEDs

Illumination
IR: 40m
White LED: 40m

Day/night
Removable ICR mechanical filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
25 FPS (8Mpx, 6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P)
HFR mode: 60 FPS (1080P / 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, CIF, VGA, 480x240)

Third Stream Frame Rate
25 FPS (720P, D1, 480x240, CIF)

Compression
H.265+, H.264+, H.265, H.264

Bitrate
64 Kbps ~ 8 Mbps

Lens
Motorized 2.8 ~ 12 mm

Field of View (FOV)
H: 96-32.33°, V: 53.67-19.63°, D: 114.17-36.33°

DORI
W: 60 m (D), 24 m (O), 12 m (R), 6 m (I)
T: 175 m (D), 70 m (O), 35 m (R), 18 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Advanced AI based on the classification of people, vehicles and non-motorized vehicles for: area intrusion, line crossing, area entry, area exit
Face detection and capture
People, vehicles and non-motorized vehicle counting
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Active deterrence
Red and blue LED flash / Customizable audible alert
Triggered by an AI event
*Messages can be customized via the web interface or the Safire Smart app

Audio
Built-in microphone and speaker, 1 Input / 1 Output

Audio compression
G711A / U

Alarm
1 Input / 1 Relay

Network interface
Ethernet 10 / 100M BaseT

Internal storage
MicroSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 1000mA / 12 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
111.5 (Ø) x 99.6 (H) mm

Weight
640 g


CONTENTS:

Safire Smart I1 IP turret camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual 8MP I1 SL EN

Safire Smart VMS User Manual EN

24-month warranty
