Shipping
Shipping in 5-10 business days
Description

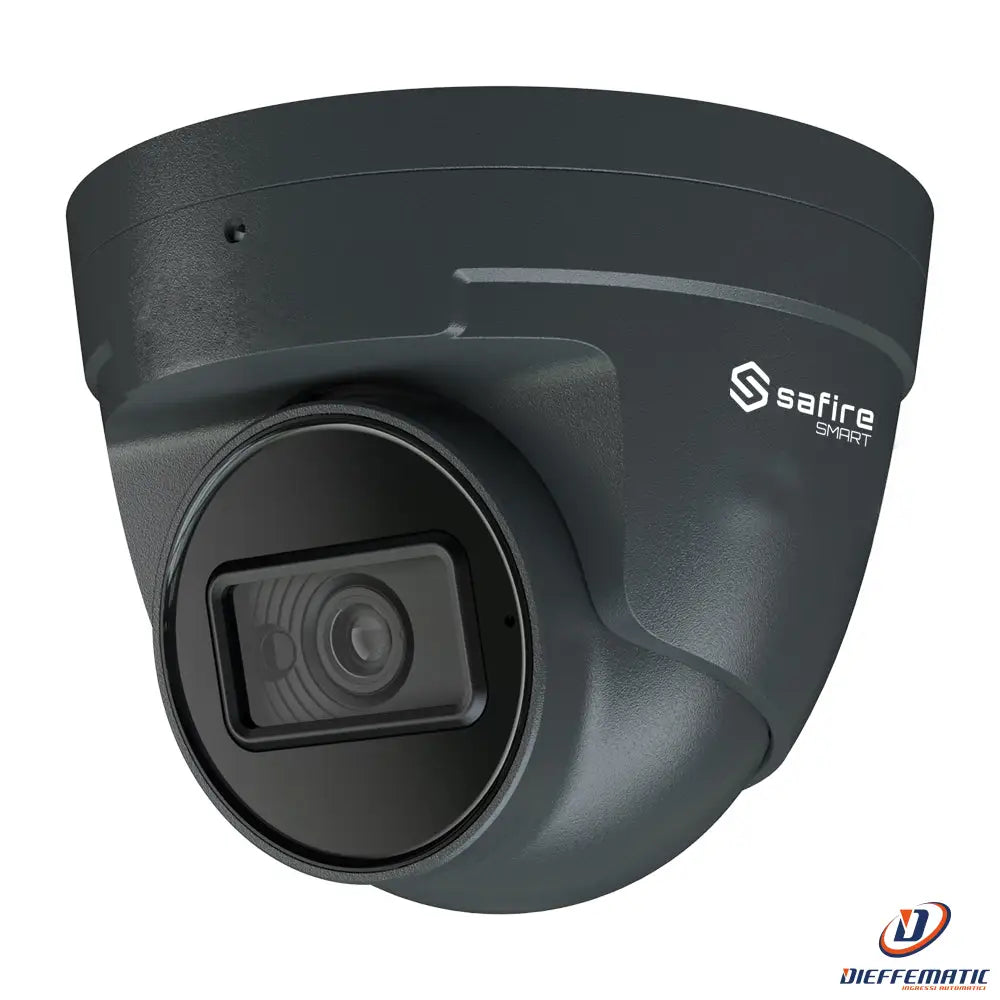

E1 IP Turret Camera
Mod. SF-IPT020A-4E1-GREY
SKU: SF-IPT020A-4E1-GREY
• Safire Smart
• E1 range IP Turret Camera with Artificial Intelligence
• 4 Megapixel resolution (2566x1440)
• 2.8 mm lens | Built-in microphone | IR 30m
• AI: Classification of people and vehicles
• Waterproof IP67 | PoE (IEEE802.3af)
DESCRIPTION:
• Safire Smart
• E1 range with Artificial Intelligence
• IP Turret Camera
• 1/3" Progressive Scan CMOS
• 4 Megapixel (2560x1440)
• 2.8 mm lens
• 0 Lux
• IR range 30 m
• H.265 / H.264 compression
• WDR
• 3DNR
• Built-in microphone
• Artificial Intelligence: classification of people and vehicles
• WEB, CMS, smartphone and NVR interface
• ONVIF compatible
• PoE (IEEE802.3af)
• Waterproof IP67
• Gray color
SPECIFICATIONS:
Brand
Safire Smart
Range
E1
Image sensor
1/3" Progressive Scan CMOS
Maximum resolution
4 Megapixel (2560x1440)
Minimum illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR
IR range
30 m
Day/night
Removable mechanical ICR filter
Electronic shutter
1/2~1/100.000 s
Main stream frame rate
25 FPS (4Mpx, 3Mpx, 1080P, 720P)
Substream frame rate
25 FPS (720P, D1, CIF)
Third stream frame rate
25 FPS (D1, 480x240, CIF)
Compression
H.265 / H.264
Bitrate
64 Kbps ~ 8 Mbps
Lens
2.8 mm
Field of view (FOV)
H: 94°, V: 50°, D: 115°
DORI
61 m (D), 24 m (O), 12 m (R), 6 m (I)
Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI
Motion detection
Yes
Smart functions
AI-based classification of people and vehicles for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)
Audio
Built-in microphone
Audio compression
G711A / U
Network interface
Ethernet 10 / 100M BaseT
Internal storage
microSD card up to 256GB
Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software
Interoperability
ONVIF
Power supply
DC 12 V / 416 mA / 5 W max. / PoE IEEE802.3af
Protection rating
Waterproof IP67
Material
Metal and plastic
Operating temperature
-30° C ~ +60° C
Dimensions
118.5 (Ø) x 93.7 (H) mm
Weight
460 g
CONTENTS:
• Safire Smart E1 IP Turret Camera
• Installation materials
• Quick installation guide
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF data sheet
User Manual 4MP E1 EN
Safire Smart VMS User Manual EN
24-month warranty
