Description

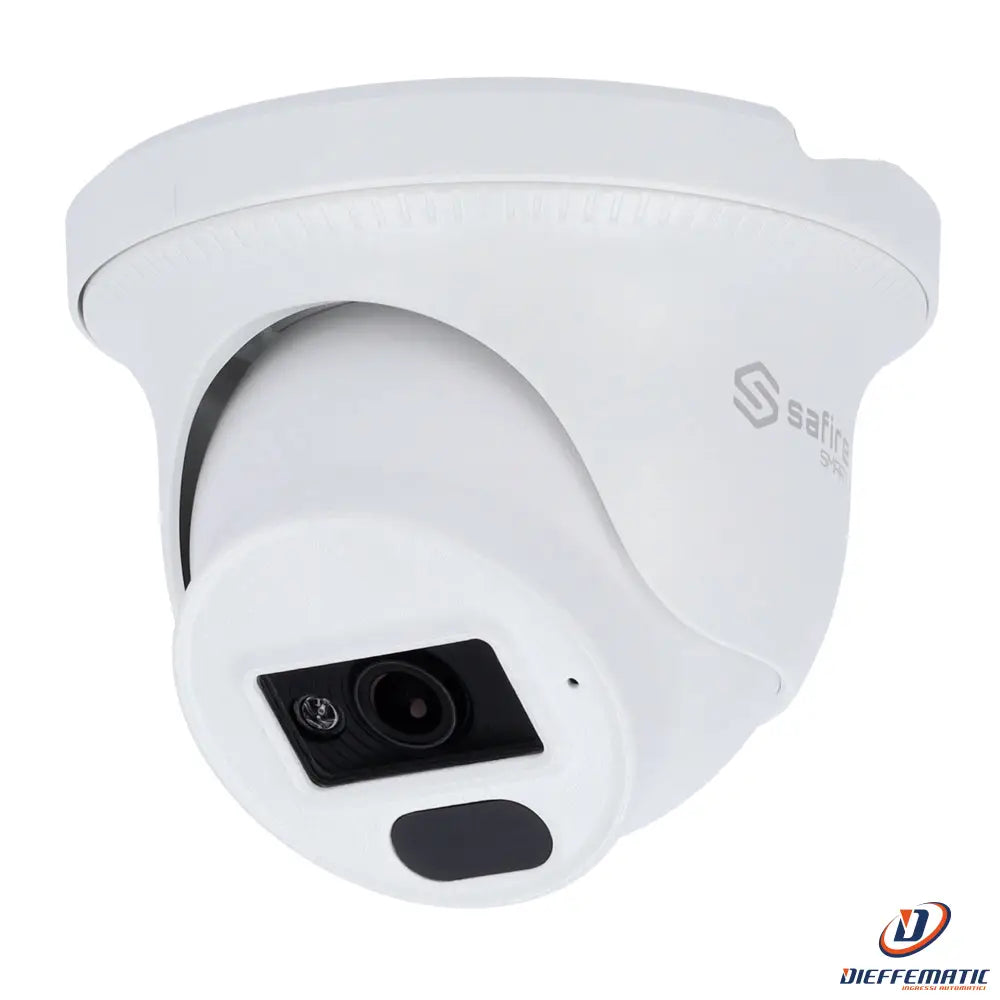

B1 IP Turret Camera
Model SF-IPT010A-2B1
SKU: SF-IPT010A-2B1
• Safire Smart
• B1 range IP Turret Camera
• 2 Megapixel resolution (1920x1080)
• 2.8 mm lens | Built-in microphone
• IR range 20 m | PoE (IEEE802.3af)
• IP67 waterproof
DESCRIPTION:
• Safire Smart
• B1 range
• IP Turret Camera
• 1/3" Progressive Scan CMOS
• 2 Megapixels (1920x1080)
• 2.8 mm lens
• 0 Lux
• 20 m IR range
• H.265+ / H.264+ compression
• DWDR
• 3DNR
• Built-in microphone
• WEB, CMS, smartphone and NVR interface
• ONVIF compatible
• PoE (IEEE802.3af)
• IP67 waterproof
SPECIFICATIONS:
Brand
Safire Smart
Range
B1
Optical sensor
1/3" Progressive Scan CMOS
Maximum resolution
2 Megapixels (1920x1080)
Minimum illumination
Color: 0.0462 Lux @(F1.6, AGC ON), 0 Lux with IR
IR range
20 m
Day/night
Removable mechanical ICR filter
Electronic Shutter
1/3~1/100.000 s
Main Stream frame rate
25 FPS (1080P, 720P)
Sub Stream frame rate
25 FPS (D1, VGA, CIF, 480x240)
Third Stream frame rate
25 FPS (D1, 480x240, CIF)
Compression
H.265+, H.265, H.264+, H.264
Bitrate
64 Kbps ~ 8 Mbps
Lens
2.8 mm
Field of view (FOV)
H: 87°, V: 48°, D: 103°
DORI
49 m (D), 19 m (O), 8 m (R), 5 m (I)
Image enhancements
DWDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI
Motion detection
Yes
Smart Functions
Area intrusion, Line crossing, Abandoned object, Removed object, Video exceptions (scene change, video loss, ...)
Audio
Built-in microphone
Audio compression
G711A / U
Network interface
Ethernet 10 / 100M BaseT
Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software
Interoperability
ONVIF
Power supply
DC 12 V / 375 mA / 4.5 W max. / PoE IEEE802.3af
Protection rating
IP67 waterproof
Material
Plastic
Operating temperature
-20° C ~ +55° C
Dimensions
94.8 (ø) x 82.8 (H) mm
Weight
287 g
CONTENTS:
Safire Smart B1 IP Turret Camera
• Installation Materials
• Quick Installation Guide
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF Datasheet
2MP B1 User Manual IT
User Manual 2MP B1 EN
Safire Smart VMS User Manual EN
24-month warranty
