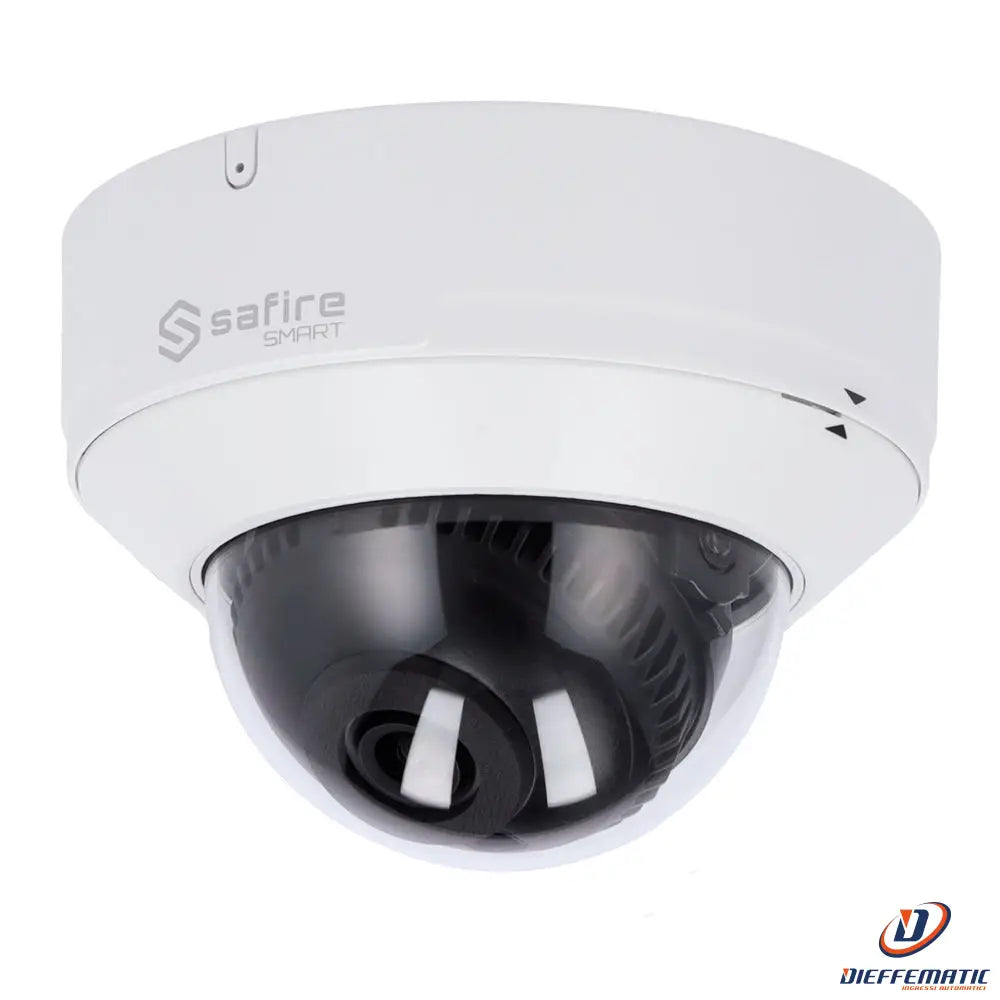

Safire Smart Sf-Ipd040A-8I1 I1 IP Dome Camera

I1 IP dome camera

Model SF-IPD040A-8I1

SKU: SF-IPD040A-8I1

• Safire Smart

• I1 range IP dome camera with advanced AI

• 8 Megapixel resolution (3840x2160)

• 2.8 mm lens | Microphone | 30 m IR

• Advanced AI: people, vehicles and two-wheeled vehicles

• IP67 waterproof & IK10 | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I1 range

• IP dome camera

• 1/2.8" Progressive Scan CMOS

• 8 Megapixels (3840x2160)

• 2.8 mm lens

• 0 Lux

• 30 m IR range

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Built-in microphone

• Audio

• TrueSense: Person and vehicle classification

• WEB, CMS, smartphone and NVR interface

• ONVIF compatible

• PoE (IEEE802.3af)

• 3-axis

• IP67 waterproof

• IK10 vandal-resistant


SPECIFICATIONS:

Brand
Safire Smart

Range
I1

Image sensor
1/2.8" Progressive Scan CMOS

Maximum resolution
8 Megapixels (3840x2160)

Minimum illumination
Color: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
30 m

Day/night
Removable ICR mechanical filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
20 FPS (8Mpx)
25 FPS (6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, 480x240)

Third Stream Frame Rate
25 FPS (720P, D1, CIF, 480x240)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 12 Mbps

Lens
2.8 mm

Field of View (FOV)
H: 101°, V: 53°, D: 120°

DORI
87 m (D), 35 m (O), 17 m (R), 9 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Advanced AI based on classification of people, vehicles, and two-wheeled vehicles for: area intrusion, line crossing, area entry, area exit
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
Built-in microphone / 1 input

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
MicroSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

3-axis
Yes

Power supply
DC 12 V / 583 mA / 7 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67, vandal-resistant IK10

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
119 (Ø) x 87.80 (H) mm

Weight
640 g


CONTENTS:

Safire Smart I1 IP Dome Camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

8MP I1 User Manual EN

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
