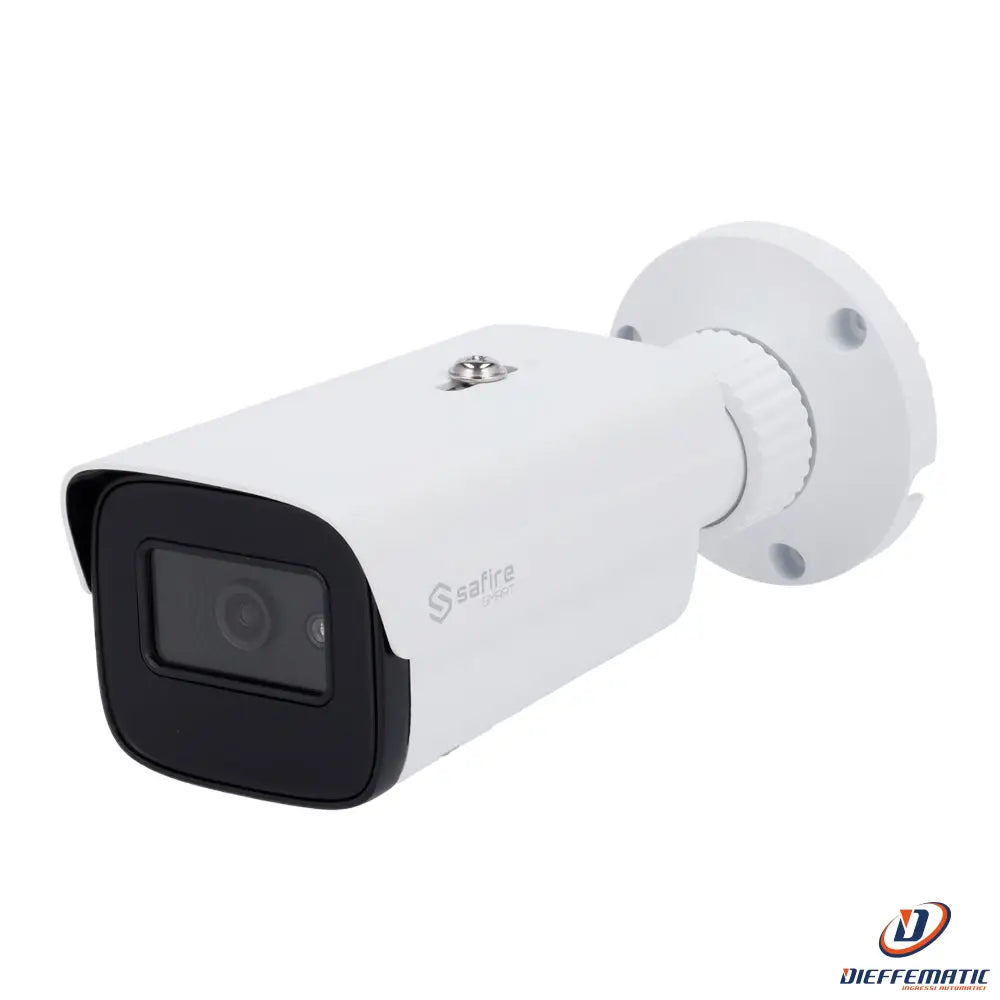

Safire Smart SF-IPB380A-8I2 I1 IP bullet camera

I1 IP Bullet Camera

Model SF-IPB380A-8I2

SKU: SF-IPB380A-8I2

• Safire Smart

• IP Bullet Camera, I2 range, Advanced AI

• 8 Megapixel resolution (3840x2160)

• 2.8 mm lens | Audio | 50 m IR

• Advanced AI: Video metadata and Face Detection

• IP67 waterproof | PoE (IEEE802.3af)


DESCRIPTION:

• Safire Smart

• I2 range with Advanced Artificial Intelligence

• IP Bullet Camera

• 1/2.8" Progressive Scan CMOS

• 8 Megapixel (3840x2160)

• 2.8 mm lens

• 0 Lux

• IR distance 50 m

• H.265+ / H.264+ compression

• WDR

• 3DNR

• Audio

• Advanced Artificial Intelligence: people, vehicle and non-motorized vehicle detection

• Face capture

• Video metadata

• People, vehicle and non-motorized vehicle counting

• WEB interface, CMS, Smartphone and NVR

• MicroSD card up to 256GB

• ONVIF compatible

• PoE (IEEE802.3af)

• IP67 waterproof


SPECIFICATIONS:

Brand
Safire Smart

Range
I2

Image sensor
1/2.8" Progressive Scan CMOS

Maximum resolution
8 Megapixel (3840x2160)

Minimum illumination
Color: 0.02 Lux @(F1.6, AGC ON), 0 Lux with IR

IR range
50 m

Day/night
Removable mechanical ICR filter

Electronic Shutter
1/2~1/100,000 s

Main Stream Frame Rate
25 FPS (8Mpx, 6Mpx, 5Mpx, 4Mpx, 2K, 3Mpx, 1080P, 720P)
HFR mode: 60 FPS (1080P / 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, CIF, VGA, 480x240)

Third Stream Frame Rate
25 FPS (720P, D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 12Mbps

Lens
2.8 mm

Field of View (FOV)
H: 104°, V: 55°, D: 125°

DORI
83 m (D), 33 m (O), 17 m (R), 8 m (I)

Image enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI

Motion detection
Yes

Smart functions
Advanced Artificial Intelligence: Classification of people, vehicles and non-motorized vehicles for: area intrusion, line crossing, area entry, area exit
Face detection and capture
People, vehicles and non-motorized vehicle counting
Video metadata (Feature extraction):
- Person: up to 13 characteristics (clothing color, hat, backpack, ...)
- Vehicle: up to 5 characteristics (color, type, make, model and direction)
- Non-motorized vehicle: Up to 1 characteristic
Other intelligent events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
1 input

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
MicroSD card up to 256GB

EIS (Electronic Image Stabilization)
Yes

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 702 mA / 9W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
80.30 (H) x 80.50 (W) x 217.80 (L) mm

Weight
680 g


CONTENTS:

Safire Smart I1 IP Bullet Camera

• Installation materials

• Quick installation guide

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

User Manual SERIES I EN

IP MANAGER TOOL - tool for SAFIRE SMART devices_IT

Safire Smart VMS User Manual EN

24-month warranty
