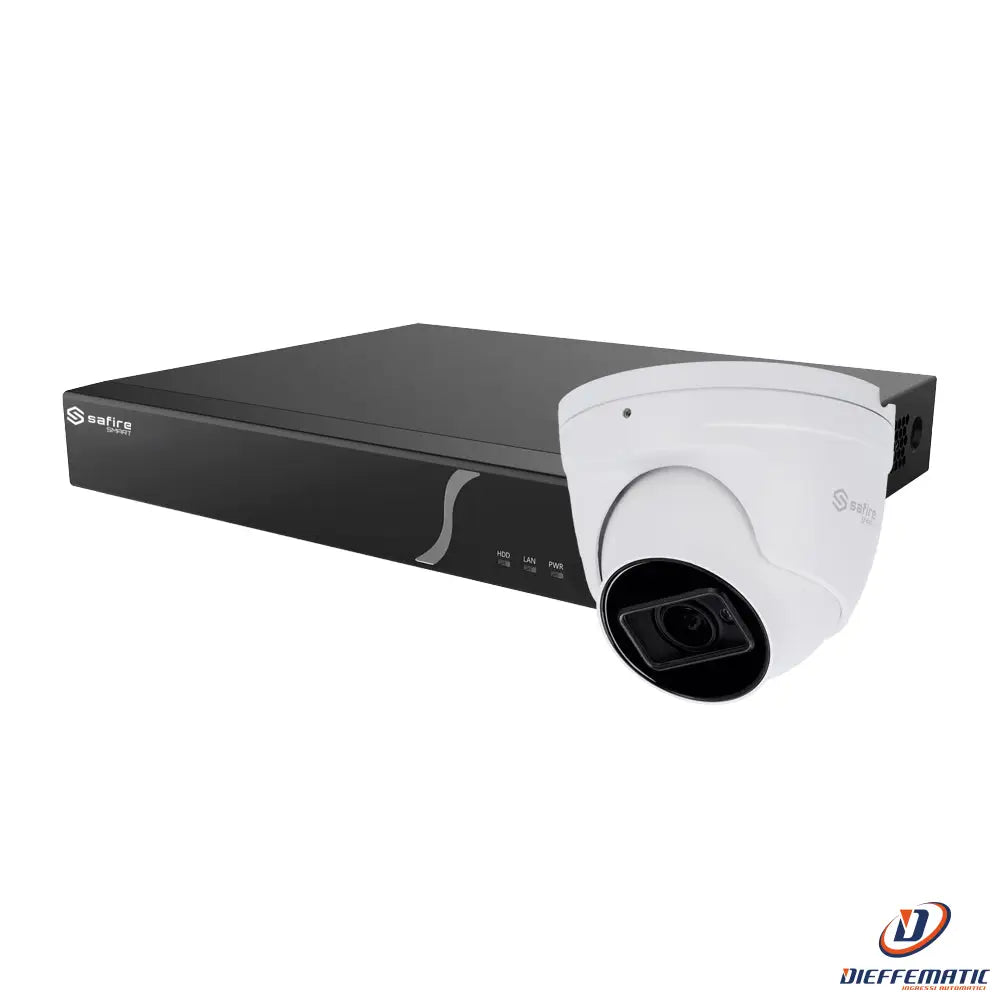

Safire Smart Sf-Demosmart-D Artificial Intelligence Kit

Artificial Intelligence Kit

Model SF-DEMOSMART-D

SKU: SF-DEMOSMART-D

• Safire Smart Artificial Intelligence Kit

• 1 4Mpx Turret camera

• 1 8-channel NVR with audio and alarm

• 1 1TB hard drive

4K HDMI video output

• Advanced classification of people and vehicles


DESCRIPTION:

• Safire Smart

• Advanced artificial intelligence kit

• Includes SF-NVR8108A-B2 video recorder and SF-IPT520ZA-4I1 Turret camera

• Resolution up to 4Mpx

• Motorized lens 2.8~12mm

• Includes 1TB hard drive

• Artificial intelligence based on the classification of people, vehicles, and non-motorized vehicles

• Facial recognition with a database of up to 5000 faces

• Video metadata with identification of people and vehicle characteristics

• Compatible with the Safire Smart app

• Search for faces and intrusion events from the same app

• ONVIF compatible


SPECIFICATIONS:

HD1TB

Capacity
1TB

Interface
SATA

Transfer Rate
6 Gb/s

Model
WD10PURX

Brand
Western Digital

Buffer Size
64 MB

Operating temperature
0° C ~ +65° C


SF-IPT520ZA-4I1

Brand
Safire Smart

Range
I1

Image Sensor
1/3" Progressive Scan CMOS

Maximum Resolution
4 Megapixels (2592x1520)

Minimum Illumination
Color: 0.005 Lux @(F1.6, AGC ON), 0 Lux with IR

IR Range
50 m

Day/Night
Removable ICR mechanical filter

Electronic Shutter
1/2~1/100.000 s

Main Stream Frame Rate
25 FPS (4Mpx, 2K, 3Mpx, 1080P, 720P)
HFR mode: 60 FPS (1080P / 720P)

Sub Stream Frame Rate
25 FPS (720P, D1, CIF, 480x240)

Third Stream Frame Rate
25 FPS (D1, 480x240, CIF)

Compression
H.265+ / H.265 / H.264+ / H.264

Bitrate
64 Kbps ~ 8 Mbps

Lens
Motorized lens 2.8~12 mm

Field of View (FOV)
H: 100-28.9°, V: 54.5-16.7°, D: 104.8-33.1°

DORI
W: 59 m (D), 24 m (O), 12 m (R), 6 m (I)
T: 206 m (D), 82 m (O), 41 m (R), 21 m (I)

Image Enhancements
WDR, BLC, HLC, 3D-DNR, AWB, ROI, Mirror Function, Privacy Mask, ROI

Motion Detection
Yes

Smart Functions
Advanced AI based on the classification of people, vehicles, and non-motorized vehicles for: area intrusion, line crossing, area entry, area exit
Face detection and capture
People, vehicles, and non-motorized vehicle counting
Feature identification:
- Person: up to 13 characteristics
- Vehicle: up to 5 characteristics
- Non-motorized vehicle: Up to 1 characteristic
Other smart events: abandoned object, removed object, video exceptions (scene change, video loss, ...)

Audio
Built-in microphone, 1 input

Audio compression
G711A / U

Network interface
Ethernet 10 / 100M BaseT

Internal storage
MicroSD card up to 256GB

Remote access
Web browser, Safire Smart smartphone app, Safire Smart VMS PC software

Interoperability
ONVIF

Power supply
DC 12 V / 792qwsaa mA / 9.5 W max. / PoE IEEE802.3af

Protection rating
Waterproof IP67

Material
Metal

Operating temperature
-30° C ~ +60° C

Dimensions
131 (Ø) x 99.60 (H) mm

Weight
670 g


SF-NVR8108A-B2

Brand
Safire Smart

Range
B2

IP camera inputs
8CH IP

Compatible IP cameras
Safire Smart (native protocol), ONVIF

Two-way audio
1 RCA input / 1 RCA output

Main Stream Recording
12MP/8MP/6MP/5MP/4MP/3MP/1080P/1280x1024/960P/720P/
960H/D1/CIF

Decoding capacity
1CH 12Mpx @ 20FPS
4CH 1080P @ 30FPS

Video compression format
H.265+ / H.265 / H.264+ / H.264

Audio compression
G.711(U/A)

Total bandwidth
80 Mbps incoming / 80 Mbps outgoing

Video output
1 HDMI 4K / 1 VGA

Display resolution
HDMI: 3840x2160@30FPS, 1920x1080, 1280x1024, 1024x768
VGA: 1920x1080, 1280x1024, 1024x768
*HDMI and VGA can be configured to output the same or different video sources

Multifunction
Pentaplex: Live view, recording, playback, backup, and remote access

Multi-screen
Main output: 1 / 4 / 6 / 8 / 9 (Live view)
Sub-output: 1 / 4 / 6 / 8 / 9 (Live view)
AI mode ("Default"): Max. 8CH (simultaneous HDMI and VGA) NVR AI available
Independent video output: Max. 16CH (independent HDMI and VGA) NVR AI unavailable

Recording Method
Manual, scheduled, motion detection, smart events, alarm input, POS

POS Function
Yes

Perimeter Protection
Safire Smart cameras with artificial intelligence must be used
Artificial intelligence based on classification of people, vehicles and two-wheeled vehicles:
- Area intrusion
- Line crossing
- Entry into area
- Exit from area
Detailed searches for intelligent events

Facial recognition
Face detection with Safire Smart 4I1 or 8I2 cameras, up to 8CH (all channels)
Face detection by the NVR itself using any camera, up to 2CH
Facial recognition on up to 6CH
Processing up to 18 images per second
32 libraries and up to 10000 face images
Image search via NVR, app and PC software
Face tracking on map
Statistical information on facial recognition results by day, week, month or a custom period

Video metadata
Safire Smart 4I1 or 8I2 cameras must be used
Person and vehicle attribute recognition
For people: can extract up to 13 characteristics (glasses, clothing color, etc.)
For vehicles: can extract up to 5 characteristics (color, type, etc.)

License plate recognition
Yes (Safire Smart license plate recognition camera required)

Dewarping
Supports dewarping of Fisheye cameras

Alarms
8 Inputs / 4 Outputs

External backup
USB memory / USB HDD / USB CD-RW / USB DVR-RW

Internal storage
1x 3.5" SATA3.0 HDD up to 10 TB (not included)

Communication
1 x USB 3.0 / 2 x USB 2.0 / 2 x RJ45 10/100/1000M (Ethernet) / RS485

Remote access
Web browser, Safire Smart smartphone app and Safire Smart VMS PC software

Power supply
DC 12V / 2A, ? 20W (Without hard drive)

Operating temperature
-10°C ~50°C, Humidity 10~90%

Dimensions / Weight
48.1 (W) x 300 (L) x 248.5 (H) mm / 1.18 kg


CONTENTS:

• 1 SF-IPT520ZA-4I1 turret camera

• 1 SF-NVR8108A-B2 NVR

• 1 1 TB HDD

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
