Description

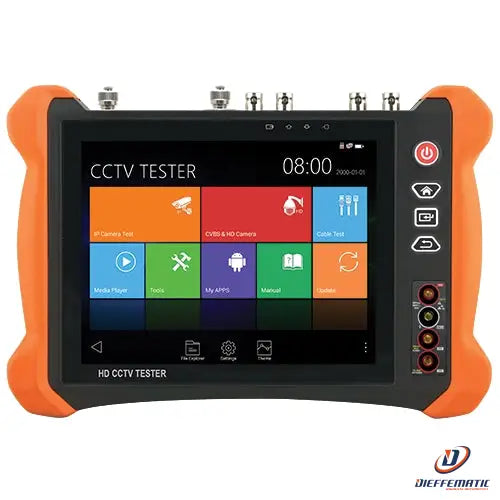

Multitasking CCTV tester
Model SF-TESTER8-5N1-4K
SKU: SF-TESTER8-5N1-4K
• Multitasking CCTV tester
• Supports HDTVI, HDCVI, AHD, CVBS and IP cameras
• Tester resolution up to 4K
• 8" color LCD screen
• Built-in 7000 mA battery
• Cable locator
DESCRIPTION:
• Safire
• Multifunction CCTV tester for HDTVI, HDCVI, AHD, analog CVBS and IP cameras
• 8" touch LCD screen
• 2048x1536 resolution
• Decodes images from cameras up to 8 Mpx HDTVI, HDCVI, AHD, CVBS and IP
• H.264 / H.264+ H.265 / H.265+ decoding
• Built-in WiFi
• Audio input/output
PTZ controller and analyzer with multiple protocols
• Multilingual menu
• BNC video input/output (loop)
• 1 HDMI input
• 1 HDMI output
• Digital multimeter
• UTP cable tester
• Cable locator
• DC 12 V power outputs and PoE power supply
• 7.4 V 7 Ah rechargeable lithium battery
SPECIFICATIONS:
Brand
SAFIRE
Screen
8" TFT-LCD, 2048x1536 resolution
Formats
HDTVI / HDCVI (8 Mpx, 12.5 / 15 FPS), AHD (8 Mpx, 15 FPS), analog CVBS, IP (8 Mpx)
Video adjustments
Brightness, contrast and saturation
Inputs
1 x BNC (TVI/CVI/AHD/CVBS), 1 x RS485, 1x
Outputs
1 x BNC (loop with BNC input), 1 x HDMI (1080p), 1 x audio, 1 x USB 5V/2A, 1 x 12VDC/2A, 1 x PoE
Analog video test
Color bar generator
TDR test
Yes
PoE voltage tester
Yes
Digital multimeter
Voltage, current, resistance, conductivity and capacitance
PTZ
RS485
Communication
WiFi, RJ45 10/100/1000M
Tester cable
Standalone accessory
Power supply
7.4 V 7000 mAh lithium battery
Charger
DC 12 V 2 A
Operating temperature
-10° C ~ +50° C
Dimensions / Weight
264 mm x 182 mm x mm x mm x 43 mm / 1 kg
CONTENTS:
• SAFIRE multifunction CCTV tester
• Cable locator
• 12 V / 2.0 A AC/DC adapter
• Carrying case
• Tester probes
• Fiber optic connector adapters
• Cables and connectors for tester
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF data sheet
Manual SF-TESTER8-5N1-4K - English Version
24-month warranty
