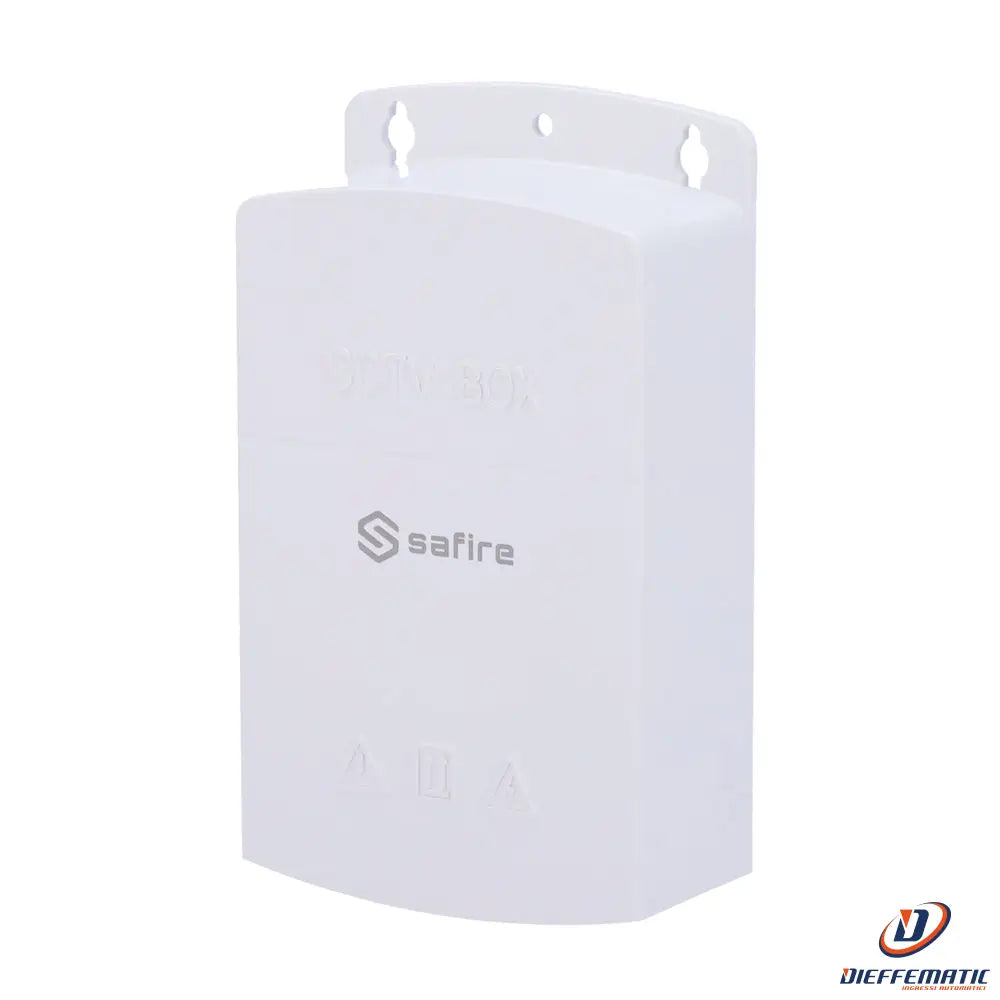

Safire SF-POE-EXT0302-60W-OUT Outdoor PoE extender

Outdoor PoE Extender

Model SF-POE-EXT0302-60W-OUT

SKU: SF-POE-EXT0302-60W-OUT

• Safire Outdoor PoE Extender

• Extends the PoE power supply range up to 650 meters

• 2 PoE Out ports + 1 RJ45 PoE In Uplink

• IEEE 802.3 af/at/bt

• Maximum output power 60 W

• 10/100 Mbps ports


DESCRIPTION:

• Safire

• Outdoor PoE Extender Switch

• Extends the PoE power supply range to 3 100 Mbps RJ45 ports (1 uplink + 2 PoE ports at 30 and 60W)- IEE 802.3 af/at/bt

• Transmission distance up to 130 meters using Category 5 UTP cable

• Output power up to 60W

• Requires PoE power


SPECIFICATIONS:

Brand
Safire

Interface
1 PoE Out Port, Hi-PoE up to 60W
1 PoE Out Port, PoE+ up to 30W
1 PoE In Uplink Port, 60W

Port speed
3x 10/100 Mbps

Power supply
30 and 60W

PoE features
Complies with IEEE 802.3at / IEEE 802.3af / IEEE 802.3bt PoE standard

Power supply
Requires PoE power

Dimensions
156 x 92 x 42 mm

Distance
Each extender increases the distance by up to 130m
If the extender is powered by PoE+ (30W), up to 3 extenders can be daisy-chained.
If the extender is powered by Hi-PoE (60W), up to 5 extenders can be daisy-chained.


CONTENTS:

• Safire Outdoor PoE Extender Switch

• User manual

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
