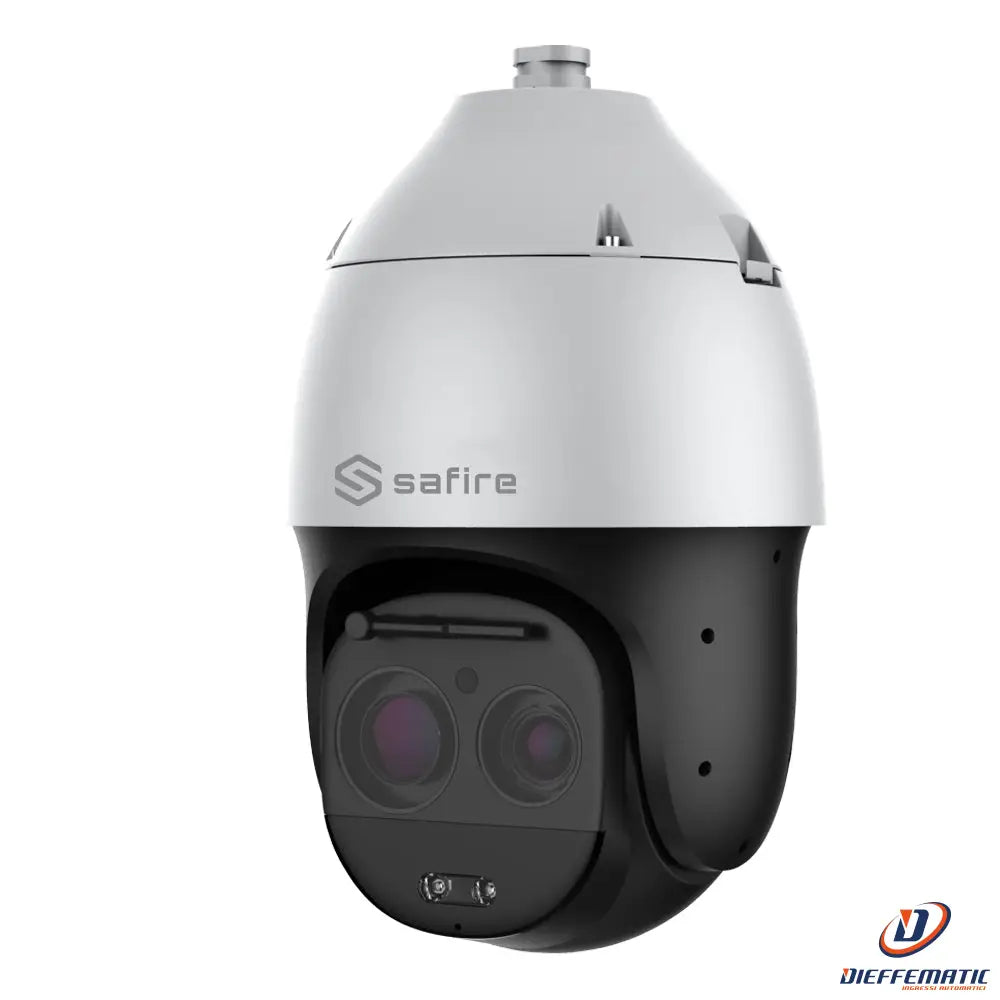

Safire Sf-Ipsd63Ita-4Y-L500 Motorized dome PTZ IP camera

Motorized PTZ dome IP camera

Model SF-IPSD63ITA-4Y-L500

SKU: SF-IPSD63ITA-4Y-L500

• SAFIRE motorized dome

• 1/1.8" Progressive Scan CMOS

• 63X optical zoom and laser illumination up to 500m

• Auto-tracking | EIS (Electronic Image Stabilization)

• Artificial intelligence and active deterrence

• ONVIF compatible | Plugin-free


DESCRIPTION:

• Safire

• PTZ IP camera

• Projects range

• 63X optical zoom

• 1/1.8" Progressive Scan CMOS

• 4 Megapixels (2560x1440)

• Laser range 500 m & IR range 300m

• Minimum illumination 0.001Lux

• H.265+/H.265/H.264+/H.264 compression

• RJ45 10/100 BaseT

• Autotracking

• MicroSD card up to 512GB

• Laser pointer

• Deterrent flash and siren

• Wiper

• EIS (Electronic Image Stabilization)

• Alarms

• Audio

• HiPoE

• ONVIF compatible

• IP66 waterproof


SPECIFICATIONS:

Brand
SAFIRE

Image sensor
1/1.8" Progressive Scan CMOS

Resolution
4Mpx (2560x1440)

Main Stream
2560x1440,2304x1296,1920x1080,1280x720

Sub Stream
704x576,704x288,352x288,640x360

Extra Stream
704x576,704x288,352x288,640x480

Minimum illumination
0.001 Lux (color), 0.0001 Lux (B/W), 0 Lux with IR

Compression
H.265+/ H.265 / H.264+/ H.264

Lens
5.7~359 mm varifocal lens (36X optical zoom)

Digital zoom
16X

Electronic shutter
1/1s~1/100000s

Day / Night
Removable mechanical ICR filter

IR range
Laser range up to 500 m
IR range up to 300 m (automatically adjusted based on zoom)
850 nm wavelength

Image enhancements
AGC, Smart Defog, WDR, BLC, HLC, WDR, 3D-NR, Privacy Masking, ROI, Flip

EIS
Yes (Electronic image stabilizer)

Face capture
Up to 30 faces captured at the same time.

Video analytics
Line crossing, double line crossing, intrusion area, abandoned object, removed object, loitering, people counting.
Smart scenes with different analytics for each scene.

Auto-tracking
YES

Pan/Tilt range
Horizontal: 0°~360°, Vertical: -21°~90° (Default -13° ~90°)

Manual speed
Horizontal: 0.1° ~ 200°/s, Vertical: 0.1° ~180°/s

Preset speed
Horizontal: 240°/s, Vertical: 180°/s

Preset positions
500 presets
16 patrols
8 scans
Auto scan

Internal storage
MicroSD card, Max. 512 GB

Audio
1 input / 1 output
G.711A/G.711U/ADPCM_D/AAC_LC
8K~48Kbps

Alarms
8 inputs / 2 relays

PTZ control
Via network access

Network interface
Ethernet 10M / 100M BaseT

Remote access
Web browser, NVR and PC software

Interoperability
ONVIF

Power supply
36VDC, Hi-PoE (Max. 37W with IR OFF, 62W with IR ON)

Operating temperature
-40° C ~ +70° C (with IR OFF)
-40° C ~ +40° C (with IR OFF)

Protection rating
IP66 / IK10

Dimensions (without bracket)
Ø 445 x 700 (H) mm

Weight (without bracket)
17.95 kg


CONTENTS:

• IP motorized PTZ camera

• Instruction manual

• Wall bracket

• 36V DC power supply

• Installation materials

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

Safire Control Center user manual

Safire Control Center datasheet

Setting up VCA rules on a Safire video recorder

24-month warranty
