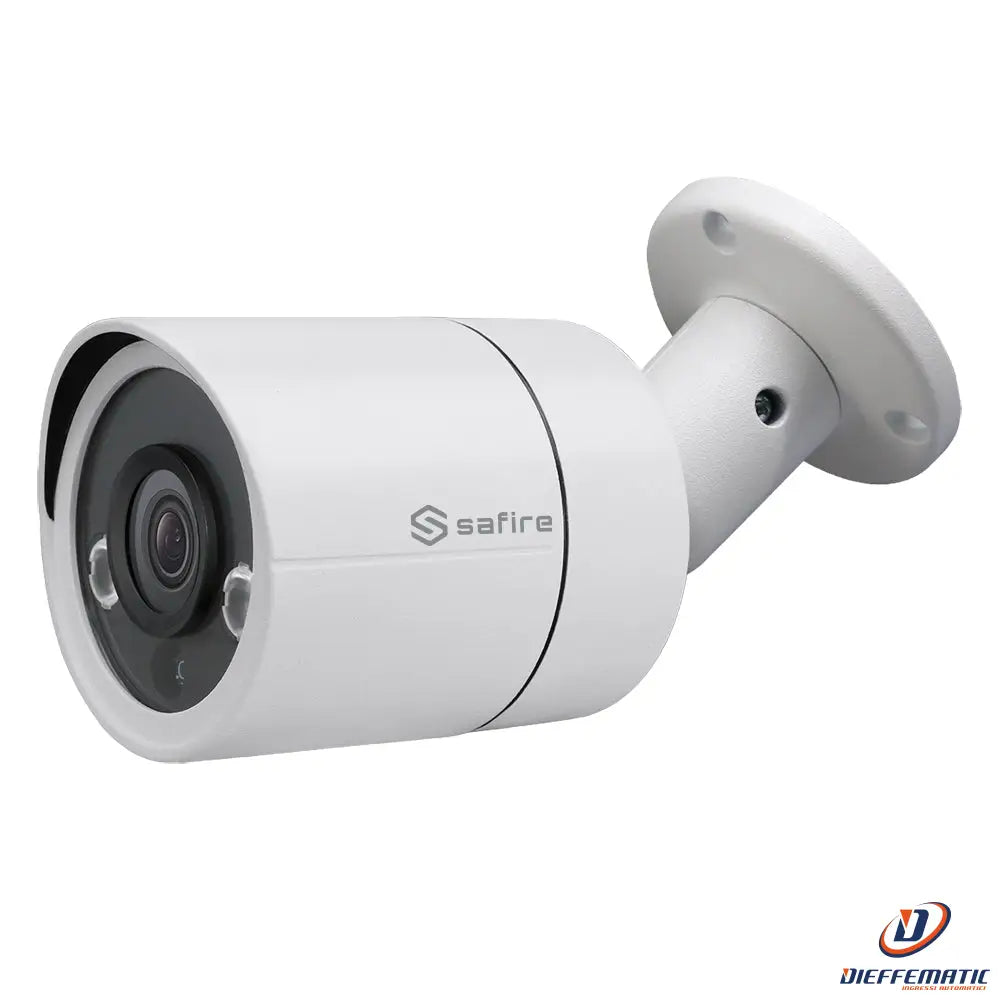

Safire Sf-B027-3Ke Eco Range Bullet Camera

ECO Range Bullet Camera

Mod. SF-B027-3KE

SKU: SF-B027-3KE

• ECO Range Bullet Camera


• 4-in-1 output / Resolution (2880x1620)

• High Performance 3K (5Mpx 16:9)

• 2.8 mm lens

• IR Matrix LED range 30 m

• Waterproof IP66


DESCRIPTION:

• Safire

• HDTVI, HDCVI, AHD and Analog Bullet Camera

• ECO range

• High Performance CMOS 3K (5Mpx 16:9)

• 3K (2880x1620)

• 4-in-1 output

• 2.8 mm lens

• 0 Lux

• IR Matrix range 30 m

• 2D DNR

• IR CUT

• Waterproof IP66


SPECIFICATIONS:

Brand
Safire

Range
ECO

Image sensor
3K High Performance CMOS (5Mpx 16:9)

Maximum resolution
3K (2880x1620) at 20 fps

Resolution
TVI: 3K (20 fps) / 4 Mp (15~30 fps) / 1080p (25~30 fps)
CVI: 4 Mp (25~30 fps) / 1080p (25~30 fps)
AHD: 4 Mp (15~30 fps) / 1080p (25~30 fps)
CVBS: PAL/NTSC

Lens
2.8 mm

Field of view (FOV)
105° (H), 56° (V), 125° (D)

Minimum illumination
0.01 Lux @ (F1.2, AGC ON)

Infrared illumination
0 Lux / IR Matrix LED (range 30 m)

Day / Night
Auto / Color / BW (black and white)

Video output
1 x switchable BNC HDTVI / HDCVI / AHD / CVBS

Video output switching
Via switch

Basic functions
OSD menu (remote)

Configurable OSD functions
DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip

Alarm
Not available

Audio
Not available

Power supply
DC 12 V / 333 mA, 4 W max.

Protection rating
Waterproof IP66

Operating temperature
-10° C ~ +50° C

Material
Metal

Dimensions
145 (D) x 62 (Ø) mm

Base diameter
55 (Ø) mm / 3 screws

Weight
242 g


CONTENTS:

• Safire 4N1 Bullet Camera

• Mounting materials

• Instructions for use

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF sheet

24-month warranty
