Description

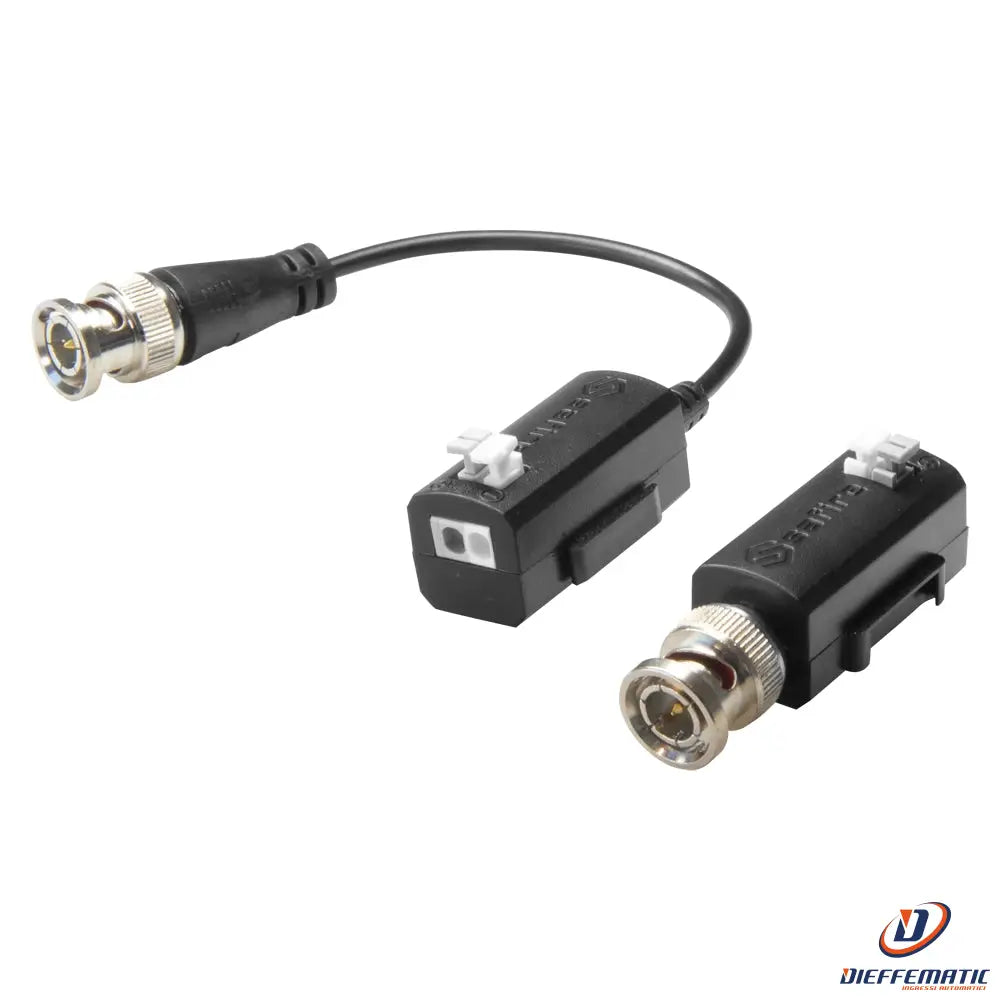

Passive twisted-pair transmitter
Model BA610-HAC
SKU: BA610-HAC
• SAFIRE passive twisted-pair transmitter
• 4-in-1 (HDTVI HDCVI AHD CVBS)
• 1 video channel
• Passive, 2-pin connector
• Distance: 150 ~ 400 m
• 2 units
DESCRIPTION:
• SAFIRE balun (transceiver)
• Optimized for 4-in-1 (HDTVI HDCVI AHD CVBS)
• 1 channel
• Passive
• BNC/UTP 2 pins
• Video
• Maximum distance: HDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p)
• 2 units (transmitter and receiver, one without extension cable)
SPECIFICATIONS:
Brand
SAFIRE
Number of channels
1 channel
Power supply
Not required (passive)
Video input / output
BNC (male)
Transmission distance
HDTVI 150/250 m (3Mpx/1080p), HDCVI 150/250/400 m (4Mp/1080p/720p) and AHD 200/350 m (1080p/720p)
Twisted-pair connector
2-pin connector
Operating temperature
-10° C ~ +55° C
Humidity
0 ~ 95 %
Input impedance
75 Ohm
Output impedance
100 Ohm
Cable category
UTP Category 5E/6
CONTENTS:
• HD passive transmitter with extension cable
• HD passive transmitter without extension cable
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF sheet
24-month warranty
