Description

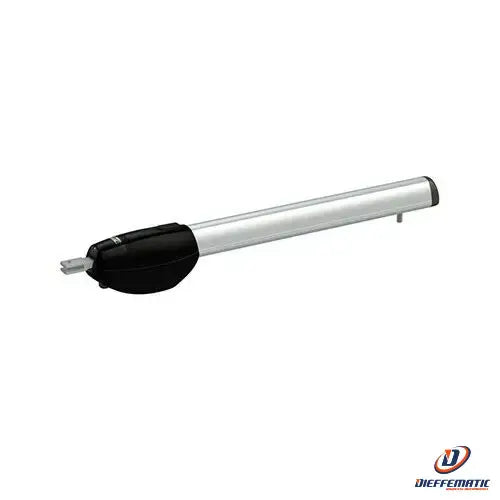

Low voltage BRUSHLESS electromechanical actuator, for super intensive use, with native encoder on board, irreversible, ideal for swing gates with leaves up to 4 m with mechanical stops in opening and closing
Model BE20/400
SKU: BE20/400
IRREVERSIBLE BRUSHLESS 36V DC - with leaf up to 4 m - with mechanical stops for opening and closing
Brushless
Intensive use
Native Digital Encoder
Residential
Industrial
Commercial
Line power supply: 230V AC - 50Hz
Motor power supply: 36V
Rated power: 200W
Frequency of use: Intensive use
Thrust: 100 - 2800N
Operating temperature: -20 C° +55 C°
Degree of protection: IP43
Type of reducer: Irreversible
Maneuvering speed: 1.66 cm/s
Opening time for 90°: 17-26 s
Stroke: 550 mm
Limit switch: Mechanical stop in opening and closing
Recommended digital controller: 230V: EDGE1/BOX - 115V: EDGE1/BOX/115
Encoder: 48 PPR SENSORLESS native digital encoder
Operating cycles per day (opening/closing - 24 hours non-stop): 1000
Maximum product dimensions mm (L x W x H): 1019 x 105 x 155
Standard accessories:
MC781 - Kit of 2 mechanical stops series BR20, BE20, R20/300MS and R20/500MS.
KT205/R - Long adjustable rear bracket kit for screwing and long welded front bracket for screwing.
24 months warranty
