Retractable Motor for Sliding Gates 400kg With Nice Nksl400 Control Unit

Retractable sliding gate motor 400kg with Nice control unit

Retractable motor for sliding gates up to 400 kg and leaf length up to 6 m

Mod. NKSL400

Irreversible, 24 Vdc, with integrated control unit and absolute encoder, which can be integrated into a column

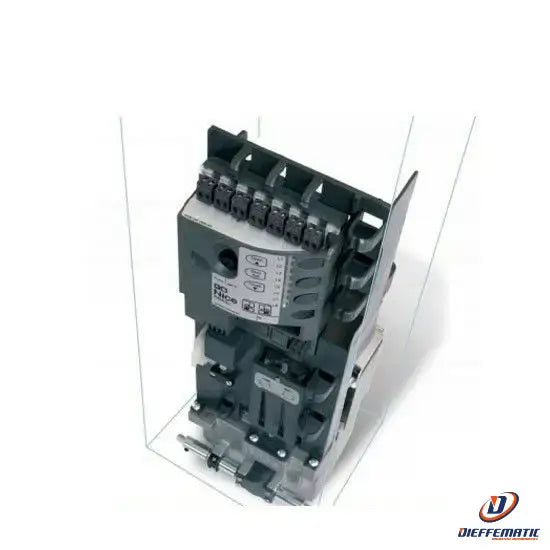

The first retractable Nice motor for sliding gates up to 400 kg and leaf length up to 6 m. Motor with integrated control unit and absolute encoder, which can be installed inside a small, suitably drilled column. The very small size allows the motor to be housed in very thin columns, with a minimum internal dimension of 140X140 mm. Simple: thanks to the BlueBUS system which allows connections with just two wires between the control unit and up to 7 pairs of photocells from the MoonBus series, control, safety and signaling devices. Master/slave selection: also automatically synchronizes 2 motors, allowing the automation of sliding gates with two opposing leaves. Intelligent: thanks to obstacle detection and automatic programming of working times. Self-diagnosis with warning through the flashing light. Safe: adjustable acceleration and deceleration at the start and end of each manoeuvre. Simple and precise limit switch adjustment: integrated absolute limit switch, quick learning with a single maneuver with the motor unlocked. Practical: control unit and PS124 buffer batteries (optional) that can be connected via a convenient guided connector. Flexible: it is possible to set up the release on both sides of the column and/or on the outside (with the KIO and KA1 accessories). Easy installation even on existing columns.

24 month warranty
