Proximity Key Kit 3 Universal Readers Rj45 Lan Securvera Sv-kpd3luxcpe

Proximity Key Kit 3 Universal RJ45 LAN Readers 10 Transponder TAG Keys 12/24 Vac Power Supply Relay Contact C.NC.NO 1AX24V Monostable or Bistable Output - SV-KPD3LUXCPE

Mod. SV-KPD3LUXCPE

SKU: SV-KPD3LUXCPE

SV-KPD electronic proximity key. Automatically learns 400 high-security-code proximity keys. With the learning function enabled, present the key to the reader; the LED lights up to confirm recognition of the new key. Three O.C. negative outputs, 100 mA, for zone partitioning or microrelay activation. Negative output for invalid key. INB input +/- control panel status signal. Standby current consumption: 3 mA. 12/24 Vacdc power supply. Changeover relay output, 2 A at 24 V. 3 (universal) readers to fit in a 503 box of any make or type, RJ45; on request, they can be supplied already fitted in a blanking plate specified by the customer. 10 keys with unique Securvera codes. Compatible with any make or type of alarm control panel. Other security activations for opening doors and gates. Board dimensions L80XL58XS16 mm. Weight 58 gr. Complies with safety standards CEI 79/2-3. CEI EN 50130-4 directives. CE marking, directive 99/5/CE. Product assembled and tested at the Securvera facility in Rome. Guaranteed by law against manufacturing defects and faults

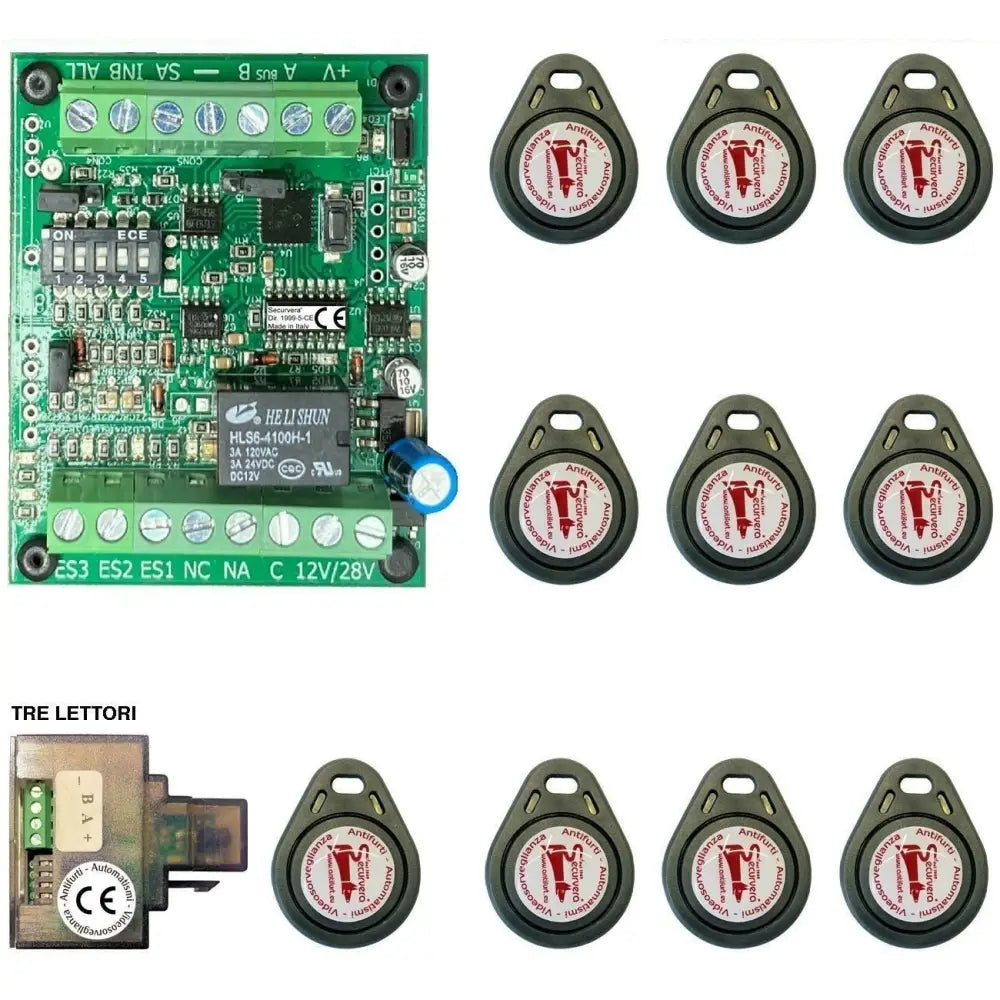

LIST OF COMPONENTS OR ACCESSORIES IN THE PROXIMITY KEY KIT FOR SECURE ACTIVATION OF SECURITY SYSTEMS:
00 SV-KPD Electronic Key Kit Processor, 12 Vac power supply, stores 400 keys, supports 8 remote readers, 2A relay output
01 SV-CPD Processor stores 400 SV-RKM keys, supports max. 3 SV-LPU remote readers, 12 Vcc power supply, 2A relay output
03 SV-LPD Proximity Key Transponder Reader Works only with our SV-EKP processor, unique Securvera codes
10 SV-RKM TAG proximity key with Securvera codes, Fr. 125 KHz. We advise against using non-original keys; the unit will lock out
01 SV-GAR 24-month warranty certificate, lifetime coverage against manufacturing defects: installation by qualified personnel, D.M.37/2008
01 SV-IST Detailed installation instructions; the specified mounting and special connections must be followed (PDF manual)


Securvera Registered Trademark 663069: Automation, Access Control, Wired and Wireless Alarm Sensors, Fire Protection
Instructions or Installation Manual: Find it below under "CLICK TO GET THE GUIDE OR MANUAL"
Use and Functions: Proximity key for activating, triggering and switching off the alarm system
Italian Manufacturer of CE Products: Fire alarm control panels, smoke and temperature sensors, Badenie sirens
Electrical stress protection: Reverse polarity, invalid key control, sabotage inhibition circuit
Country of origin and manufacture: Made in Italy at the Securvera factory and carefully selected
Payment methods or systems: Government tax deductions or tax accounting via traceable bank transfer
Warranty beyond the statutory period: Securvera provides a lifetime guarantee against manufacturing defects and faults
Compatibility with other brands: Alarm systems of any make and type, security door opening
Installation instruction manual: Read the manual carefully for weights, measurements, functions and required accessories
Item code, model, type: SV-KPD3LUXCPE Proximity Key for Alarm Systems and Door Opening
