Proximity Electronic Key Kit Universal Reader Securvera Sv-kpdeluqcpd

Electronic Proximity Key Kit Universal Reader LAN RJ45 Any Brand 4 TAG Keys Relay C.NC.NA 1AX24V Impulsive or Bistable Power Supply 12/24 Vac - SV-KPDELUQCPD

Mod. SV-KPDELUQCPD

SKU: SV-KPDELUQCPD

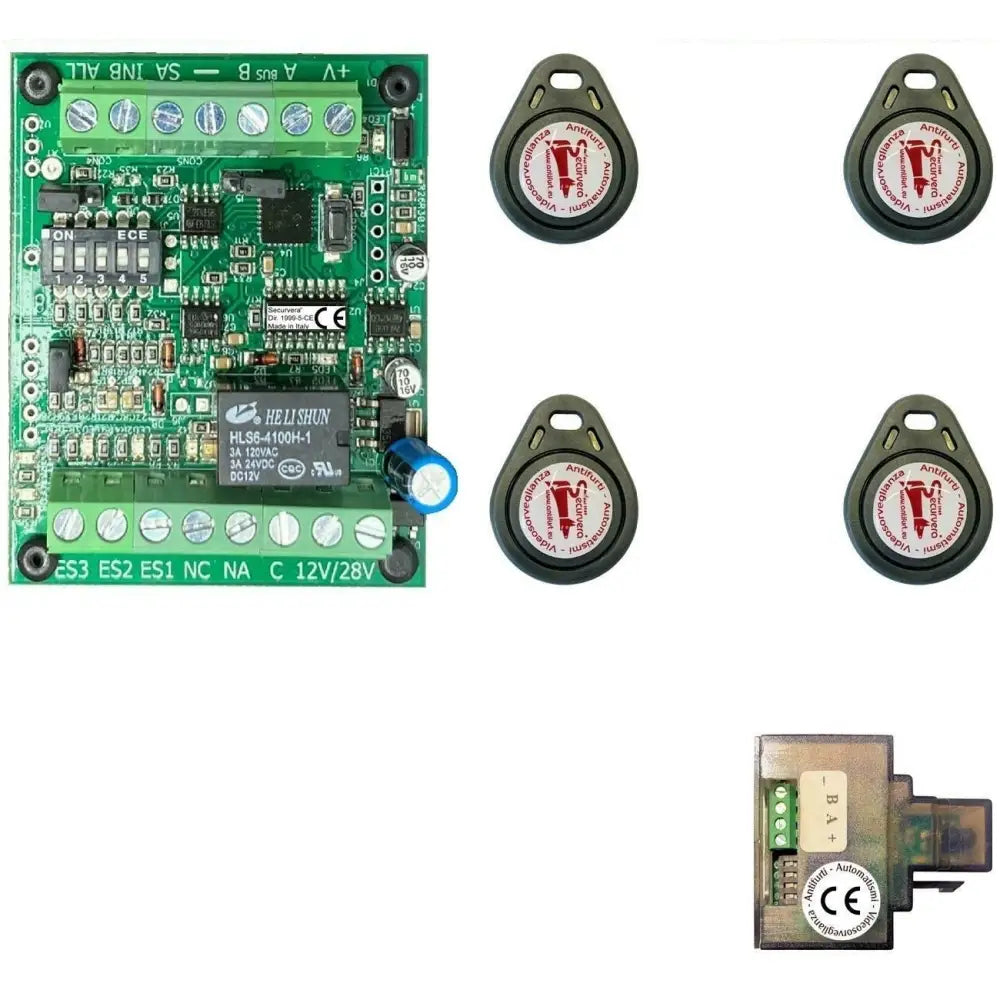

SV-KPD Electronic proximity key. Reader (universal) to be inserted into a 503 module of any brand and RJ45 type, on request it can be supplied already inserted into a cap indicated by the customer. 4 unique Securvera code keys. Self-learns 400 high security code proximity keys. With the Learning function activated; the key is brought closer to the inserter; the LED turns on which confirms recognition of the new key. Three negative OC 100 mA outputs, for partitioning of zones. Negative output for false key. INB Input +/- control unit status signalling. Sleep absorption 3 mA. Power supply 12/24 Vacdc. Free exchange relay output 2 A at 24 V. Compatible with any type and brand of alarm control unit. Other Security Activations for opening doors and gates. Board dimensions L80XL58XS16 mm. Weight 58 g. Compliance with CEI 79/2-3 safety standards. CEI EN 50130-4 Directives CE marking directive 99/5/CE. Product assembled and selected in the Securvera Roma factory. Guaranteed by law against defects and manufacturing defects.


LIST OF COMPONENTS OR ACCESSORIES OF THE PROXIMITY KEY KIT USEFUL FOR SAFELY ACTIVATING SECURITY SYSTEMS:
00 SV-KPD Electronic Key Kit Power ECU. 12 Vac Stores 400 Keys Supports 8 Remote Readers 2A Relay Output
01 SV-CPD Computer Memorizes 400 Keys SV-RKM Supports Max 3 Remote Readers SV-LPU Power Supply. 12 Vdc Relay Output 2A
01 SV-LPD Transponder Proximity Key Reader Works Only with Our SV-EKP Computer Unique Securvera Codes
04 SV-RKM Proximity Key TAG Securvera Codes Fr. 125 KHz We do not recommend the use of non-original keys Enters Lock
01 SV-GAR 24 Month, Lifetime Warranty Certificate Against Factory Defects: Installation by Qualified Personnel DM37/2008
01 SV-IST Detailed Assembly Instructions; Must Be Respected: Fixings, Special Connections (PDF Manual)


Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You will find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Proximity Key Activation Intervention Switching Off Alarm System
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal False Key Control Sabotage Inhibition Circuit
Country of origin and Manufacture: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility with other brands: Alarm systems any brand and type of security door openings
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SV-KPDELUQCPD Proximity Key for Door Opening Alarm Systems


CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL

24 month warranty
