Description

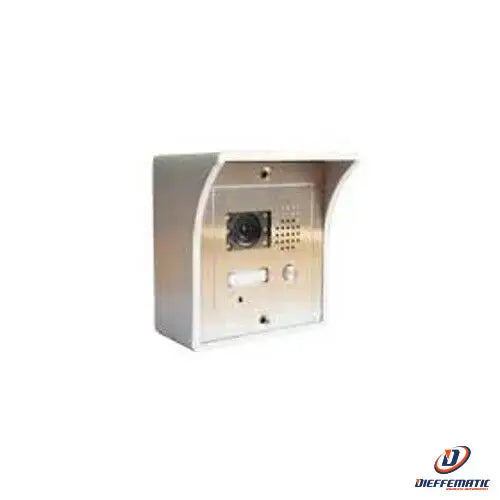

Kit comprising a color monitor with memory for 100 images, a vandal-resistant flush-mounted outdoor station with rain cover, and a DIN rail power supply (2-wire connection)
Mod. VISIODOOR-2A+
VISIODOOR2 is a color video door entry system that combines high-quality design with robustness (vandal-resistant outdoor components) and easy installation (2-wire connection). It is ideal for monitoring a residential entrance and opening an automated door or gate.
2-wire connection
Refined, elegant design
7" (18 cm) color screen, ultra-flat (30 mm thick)
Touch-sensitive buttons
Image memory (100 images)
Adjustable contrast, brightness and volume
View the entrance even without a call from the outdoor unit
DIN rail power supply
Vandal-resistant stainless steel front panel, resin-encapsulated electronics
Excellent image quality, automatic day/night modes
Adjustable lens
Reinforced protective hood
Flush mounting
Power supply: 14.5 V - 1.3 Ah (DIN rail)
Camera lens: 1/3 CCD 72°
Brightness threshold: 0.05 Lux
Available relay: 1 dry contact 20 A
Connection distance: 70 m max (6/10 1-pair cable)
Operating temperature: -20°C / +55°C
Protection rating: IP 55
Dimensions and weight: Monitor: 170x220x30 mm - 500 g, VISIODOOR2-A+ outdoor unit: 115x110x52 mm - 875g
