Description

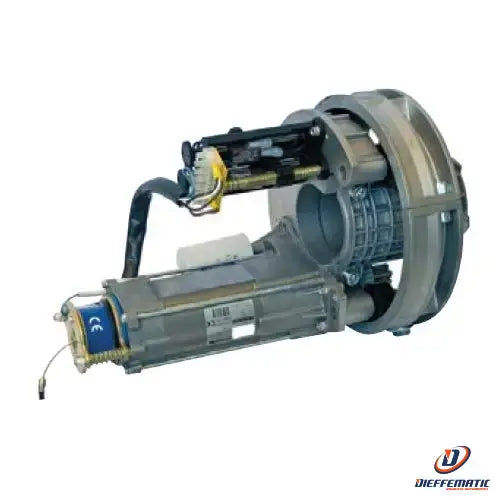

Operator for balanced roller shutters with springs
Mod. SER 24
SKU: 64000138
Complete with electric brake, cable, sheath and release knob.
TECHNICAL SPECIFICATIONS:
Power supply (V): 230 Vac - 50Hz (120Vac - 60Hz)
Motor power supply (V): 230 Vac - 50Hz
Motor current draw (A): 2.8
Motor power (W): 600
Torque (Nm): 290
Maximum shutter area (m2): 24
Maximum lifting force (kg): 240
Drive pulley speed (rpm): 9
? drive pulley (mm): 240
? shaft (mm): 76
Maximum weight (kg): 11
Recommended daily cycles (no.): 30
Duty cycle (%): 30
Operating temperature (°C): -20° +55°
Protection rating (IP): 30
Control unit: BAXS900/BAXS900L
24-month warranty
