Description
Complete Kit for Automating a Two-Leaf Swing Gate
Professional
For leaves up to 2.00 m long and weighing up to 200 kg
Electromechanical linear actuator for condominium use, with an all-metal structure.
Once correctly installed, the automation systems require virtually no maintenance. Installation requires no modifications to the existing gate!
High-performance electric motor.
The actuator is designed for leaves weighing no more than 200 kg and measuring no more than 2.00 metres in length. Its aluminium body and bronze gears ensure a long service life.
The actuator maintains the gate in the locked position when open and closed without requiring an electric lock; it features convenient release using a triangular key located on the motor assembly.
Control unit with built-in receiver for controlling 1 or 2 swing leaves.
Electronic clutch with convenient, quick travel adjustment and the option to adjust the delay of the second leaf.
Deceleration during opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to independent control of each leaf's travel.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

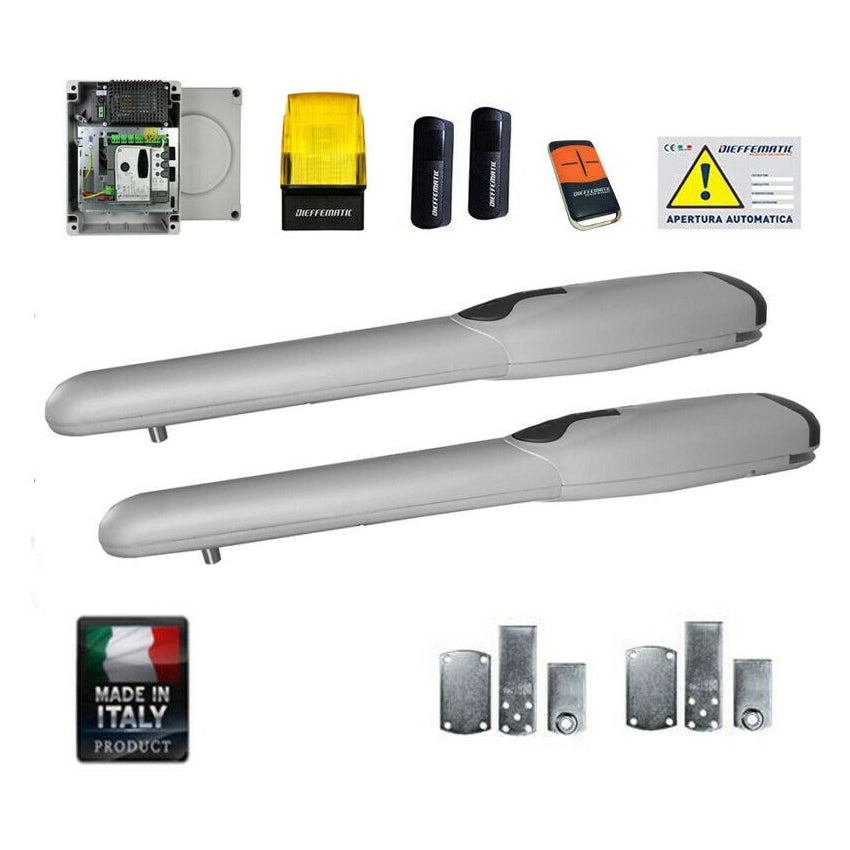

KIT CONTENTS:
No. 2 Electromechanical linear actuators for condominium use and outdoor use, with key-operated emergency release. No electric lock required. Motor speed 1,400 rpm. Power 200 W. Thrust 1500 N. Maximum opening angle 100°. Power supply 24 V.
No. 1 Control unit with watertight enclosure, motor force and deceleration adjustment trimmers, built-in obstacle detection, deceleration during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian entrance, courtesy light, overvoltage protection, input for photocells and safety edges, electric lock management, reverse stroke, adjustable leaf offset during closing/opening, closing time adjustment.
No. 1 Single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 Antenna built into the control unit, range 40 metres (433.9 MHz)
No. 1 4-channel rolling code remote control
No. 1 Pair of wall-mounted photocells
No. 1 24V LED flashing light
No. 1 Warning sign
No. 1 Installation accessories, bolt-on/weld-on mounting brackets with bracket covers
No. 1 Installation instructions for the mechanical and electronic parts in ITALIAN
24-month warranty
