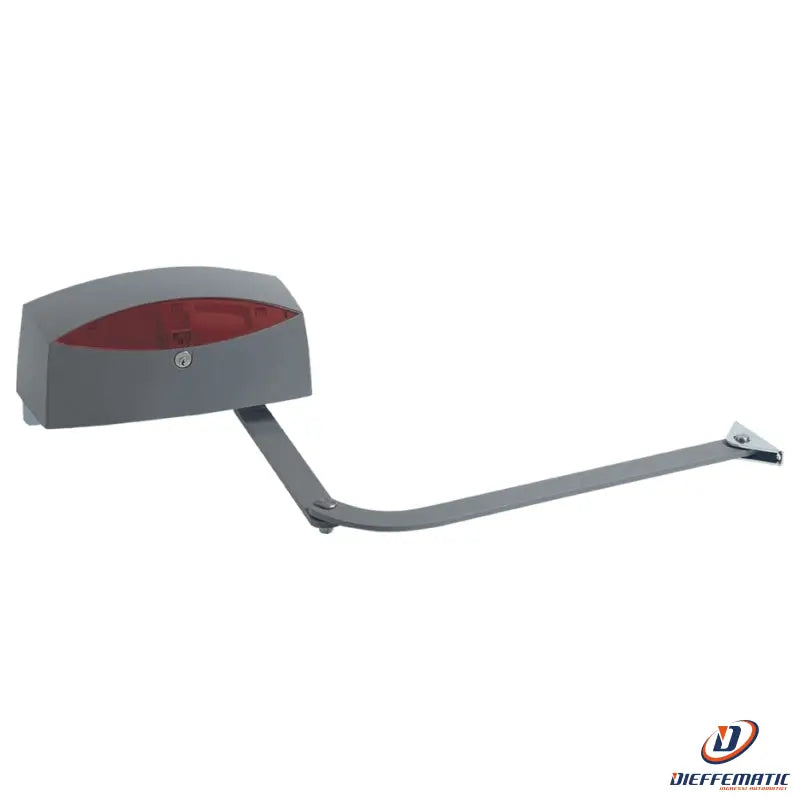

GEAR MOTOR FOR SWING DOOR 5M - 230V - IRREVERSIBLE SLOW UNI - WITH ELECTRIC LIMIT SWITCHES
Mod. SIN 5 UNI
SKU: 1SIM010000
Irreversible electromechanical gearmotor. Slow. Model with electric opening and closing limit switches. Control unit not mounted on board. External assembly.
Irreversible electromechanical gearmotor with articulated arm for swing gates.
Made of two sturdy aluminum shells.
Gearbox mechanics that allow silent rotation.
Easily removable shell.
Release device under cover.
Easy and safe unlocking action.
Sinuo is highly versatile and can be used in small spaces, but also characterized by large columns. The automation is designed to last a long time and to guarantee robustness during the use phase.
Max door length (m): 5
Motor power supply (V): 230V ac
Power consumption (W): 220
Torque (Nm): 350
Operating temperature (°C Min/Max): - 20 + 70
Degree of protection (IP): 44
Work Intermittent (%): 35
Time to complete 90° (s): 18
Speed (rpm): 1.1
Thermoprotection (°C): 140
24 month warranty
