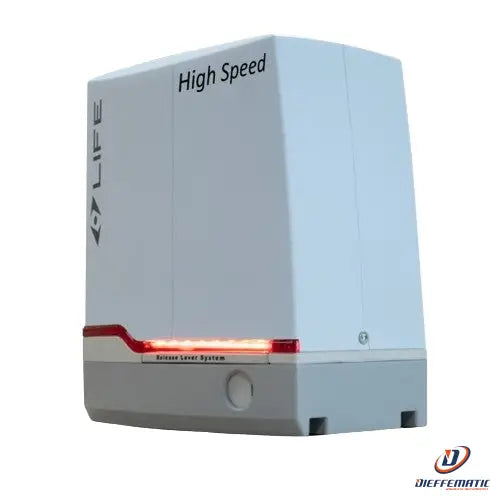

230V ELECTROMECHANICAL IRREVERSIBLE GEAR MOTOR WITH 1500KG CONTROL UNIT - MAGNETIC LIMIT SWITCH - INTEGRATED RADIO
DEUS 4HS model
SKU: 1MS0640002
Model equipped with double encoder, control unit (CT1 24VL).
Irreversible electromechanical gearmotor for sliding gates.
External mounting.
High Speed version for easy entry and safe closing.
Reduced power consumption in standby.
Aluminum structure, light and resistant.
Motor body coated with structured polyester paints for exterior use.
DEUS is the new sliding gate motor designed by LIFE that features solutions that help the installer and increase performance.
The automation stands out for the use of a double encoder that allows its use in highly safe conditions during the operating phases, and thanks to this solution we have eliminated the traditional limit switches, obtaining greater reliability and time savings.
The DEUS range also stands out for its low power consumption in stand-by and for the new display board developed by our Digital Life technical department.
Max door weight (Kg): 400
Motor power supply (V): 24V dc
Power consumption (W): 120
Thrust (N): 300
Lubrication {Type): Permanent grease
Thermal protection {0C): 140
Operating temperature {0C Min/Max.): - 20 +70
Degree of protection (IP): 55
Max speed {m/s): 0.34
Maximum starting torque (Nm): 10
Continuous working time {Min): 20
Work Intermittent (%): 80
Pinion height - h (mm): 91
