Description

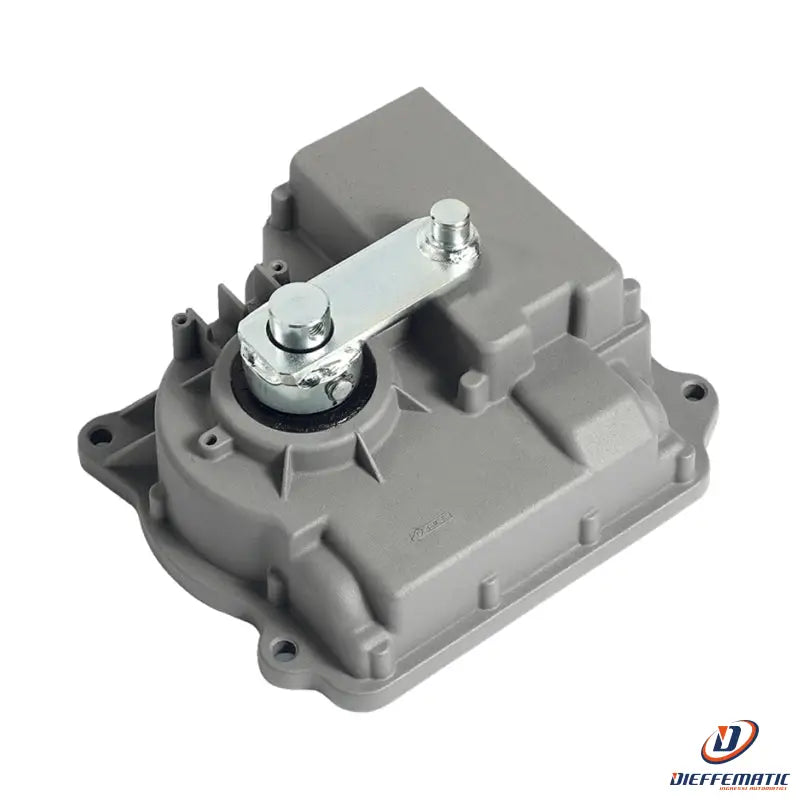

UNDERGROUND GEAR MOTOR - 24V - IRREVERSIBLE - WITH ENCODER AND MECHANICAL STOP - GREASE LUBRICATED
Mod. ER424
SKU: 1MI0080001
Irreversible electromechanical gearmotor with articulated arm for swing gates, grease lubricated, complete with mechanical opening and closing stop. Model equipped with encoder. Pre-wired cables 2.5 m long. External mounting.
Irreversible electromechanical gearmotor with articulated arm for swing gates.
Aluminum structure, light and unalterable.
Gearmotor container made of die-casting and coated with structured polyester paints for outdoor use.
Three different types of foundation boxes.
Thick bottom.
Ergo is the underground motor that does not fear the passage of time. Its mechanics are among the most robust on the market. Particular technical choices guarantee solidity, silence and reliability over time.
Max door length (m): 3
Motor power supply (V): 24V dc
Power (W): 120
Torque (Nm): 250
Lubrication (Type): Grease
Thermoprotection (°C): -
Operating temperature (°C Min/Max): - 20 + 70
Degree of protection (IP): 67
Time to complete 90° (s): 20
Intermittence (%): 80
24 month warranty
