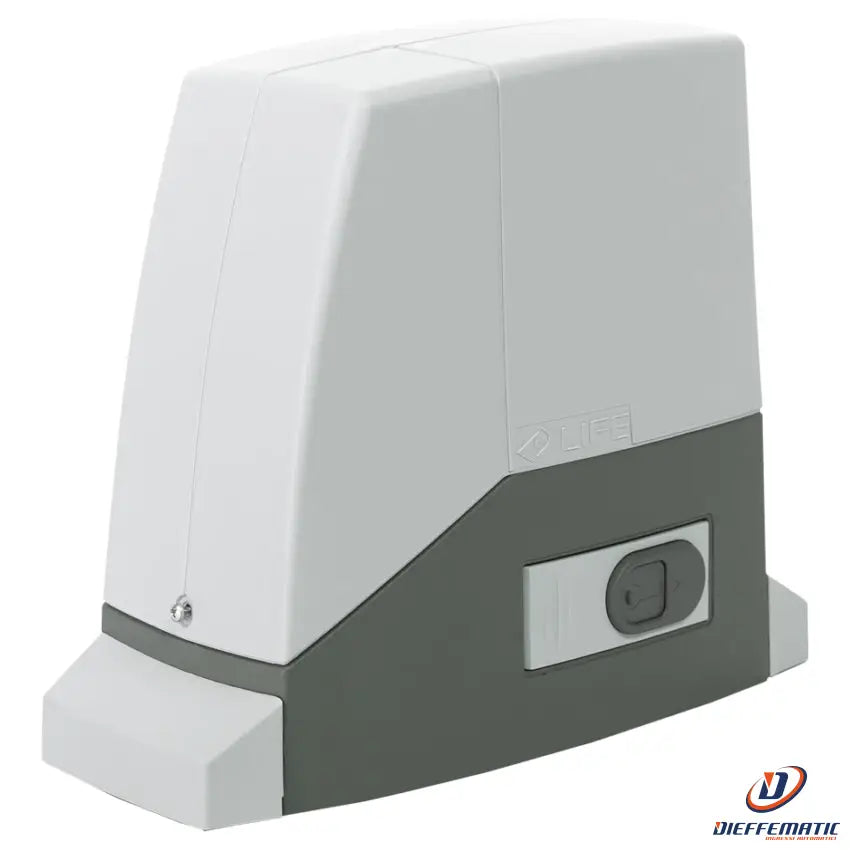

230V ELECTROMECHANICAL IRREVERSIBLE GEAR MOTOR WITH 400KG CONTROL UNIT - INTEGRATED RADIO MAGNETIC LIMIT SWITCH
Mod. AC4RM DL
SKU: 1MS0470001
Irreversible electromechanical gearmotor for sliding gates.
Aluminum structure, light and resistant.
Outer shell designed to protect against impacts.
Motor body coated with structured polyester paints for exterior use.
Model equipped with encoder, magnetic limit switch and control unit (RG1R DL). Electronic regulation of motor torque.
Acer is a high quality motor for sliding gates and is designed to last a long time. Automation of particular robustness, supported by the action of the encoder that allows its use in conditions of high safety during the operating phases; furthermore, the entire range is developed with the innovative Digital Life card.
Max door weight (Kg): 400
Motor power supply (V): 230V ac
Power consumption (W): 250
Thrust (N): 500
Lubrication (Type): Grease
Thermoprotection (°C): 140
Operating temperature (°C Min/Max.): - 20 +70
Degree of protection (IP): 55
Speed (m/min): 10
Work Intermittent (%): 35
Pinion height - h (mm): 99
24 month warranty
