Description

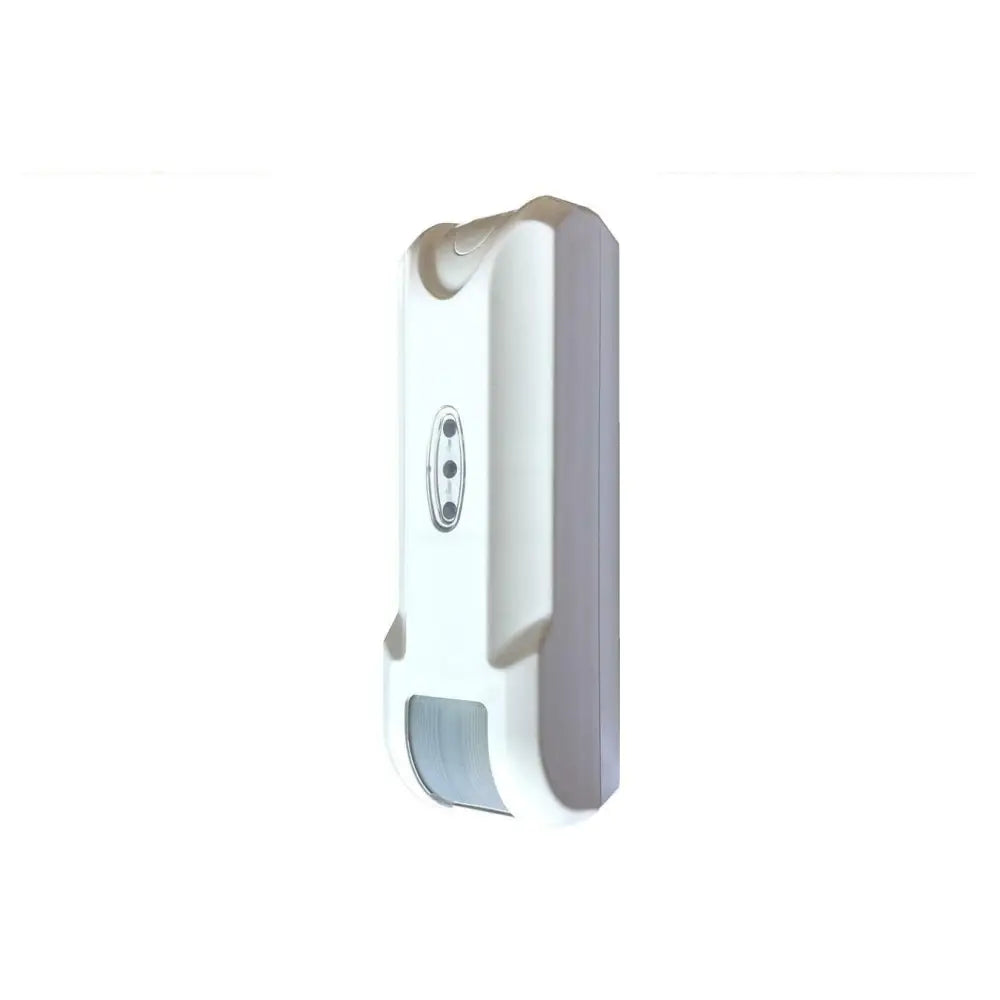

Wireless Dual-Technology Curtain Motion Detector, 6-Meter Front Coverage, 1.8-Meter Curtain Depth, Look-Down Control, 868 MHz Bidirectional Frequency, UNISAT Coding - SV-DREUDTWEPC
Mod. SV-DREUDTWEPC
SKU: SV-DREUDTWEPC
SV-DRE dual-technology wireless curtain motion sensor. Adjustable infrared sensitivity. 6-meter front coverage. Wide-angle infrared with a special 6-sided curtain lens covering 70°, curtain thickness 1.8 m. Microprocessor-controlled "look-down" detection. This volumetric detector features a microwave motion sensor and a passive infrared motion sensor. Its technology is based on digital signal analysis and a pyroelectric element that detects infrared radiation with innovative signal filtering. It detects an intruder's movement and mass and counts the programmed movements. The incremental temperature compensation system allows the detector to adapt to the specific conditions of the environment in which it is installed. One-minute reset time between alarms. 70 dB buzzer at 10 cm. Tamper protection against removal and opening, even when switched off. Bidirectional transmission, collision and jamming protection. Operating frequency 868 MHz. Securvera "UNISAT2" coding. Radio range over 300 meters in open air. Powered by a lithium battery (included, expected life 24 months), 3.6 V. Standby current 25 µA. IP50 protection rating. ABS housing. Dimensions L70XH125XP50 mm. Weight 84 g. Suitable for protecting windows and balconies. Product assembled and selected at the Securvera facility in Rome. Covered by the 24-month statutory warranty against manufacturing defects and faults. Complies with the following standards and European directives: ETSI EN 300 220-1 V2.21 (04-2008), ETSI EN 301 489-3 V1.4.1 (08-2002), ETSI EN 301 489-1 V1.4.1 (08-2002), EN 60730-1: 2003 CEE89/336 and 93/686 D.L. 04/12/1992 n. 47. Radio Equipment Directive 2014/53/EU. Electromagnetic Compatibility Directive 2014/30/EU
LIST OF COMPONENT(S) INCLUDED IN THIS LISTING FOR A REMOTE-MANAGED WIRELESS SECURITY SYSTEM:
01 SV-DRE dual-technology wireless detector, 868 MHz bidirectional frequency, 6 MT outdoor curtain type, anti-jamming, Unisat2 code
01 SV-GAR 24-month warranty certificate. Lifetime coverage against manufacturing defects: Qualified installation Dec.M. 37/2008
01 SV-IST Detailed installation instructions to follow: Fixings, measurements and connections are provided in the manual
Securvera Registered Trademark 663069: Since 1969, Securvera has been a pioneer and leader in the security sector
Instructions or Installation Manual: See below for "CLICK TO GET THE GUIDE OR MANUAL"
Use, Application and Functions: Unisat central security alarm system, home automation, HiFi, wireless/wired 868 KHz LAN
Italian Manufacturer of CE Products: Fire alarm, Sbeco, automatic gate and up-and-over door systems
Electrical Protection Against Stress: Anti-jamming, tamper and collision control, reverse polarity, LAN
Country of Origin and Manufacture: Made in Italy at the Securvera factory and carefully selected
Payment Methods or Systems: Tax deductions and fiscal accounting via traceable bank transfer
Warranty Beyond the Statutory Period: Product covered by Securvera for life against manufacturing defects and faults
Compatibility with Other Brands: Alarm systems of any brand and type, security door openings
Installation Instructions Manual: Read the manual carefully for programming, functions and useful accessories
Original Italian Product: Always save because your purchase is a lasting investment
Important Warning: We do not ship to smaller islands or abroad; collection from our premises only
Item Code, Model, Type: SV-DREUDTWEPC wireless dual-technology curtain detector, 868 MHz Unisat
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
