Description
White Micro Magnetic Contact NC. NO. 1 Piece Alarm for Frames Max. Voltage 100 V Current 1 A Housings with Mounting Holes Vacuum-Sealed Reed Switch Magnetic Sensitivity 10 mm IP65 4 Wires
Model ST-100MCMFEPD
SKU: ST-100MCMFEPD

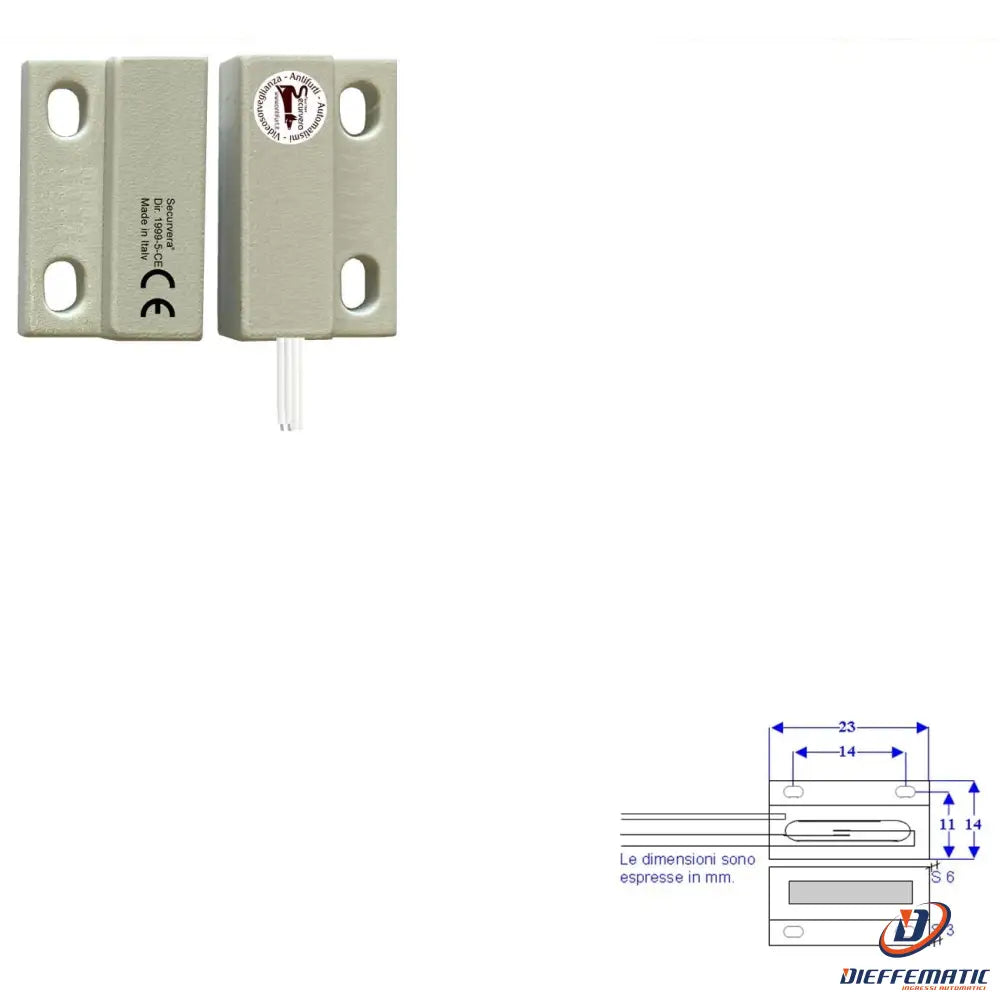

ST-100 Miniature ultra-flat NC magnetic contact. Maximum switching voltage 100 Vdc. Current 1 Ah. Magnetic gap 10 mm. Consists of 2 pieces of the same shape, each with two mounting holes. The part with the 4 wires contains a vacuum-sealed glass reed switch connected to 2 stripped wires; with the magnet nearby, the contacts are in the NC position. 2 unbroken Tamper wires. The other part contains a permanent magnet. Particularly suitable for burglar protection of non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part with the wires on the fixed part of the frame, and the magnet opposite it on the moving part (door). The protected frames must be completely closed. Operating temperature from -25 to +70°. IP 65. Made of ABS plastic, rectangular shape with mounting holes. Dimensions of the 2 pieces when installed: L14XH23XS6XS3 mm. Weight 8 gr. Assembled and inspected at the Securvera facility in Rome. Guaranteed in accordance with the law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated.
LIST OF COMPONENTS FOR SALE:
01 ST-100 RED Magnetic Sensor Contact in Vacuum-Sealed Glass Reed Switch Capsule, Max. Current 100 V 1 A, IP 65 Protection, 4 Wires, 2 N.C. 2 Tamper
01 SV-GAR Statutory Warranty Certificate: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
24-month warranty
