Description
Small Recessed Brass Magnetic Contact for Burglar Alarm Protection of Windows and Frames, Vacuum-Sealed NC Reed, 10 mm Attraction Range, Max Voltage 30 V, 1 A Resistive Load, IP65, 4 Wires: 2 NC and 2 Tamper, 2 Cylinders
Mod. ST-105UCMOCOD
SKU: ST-105UCMOCOD

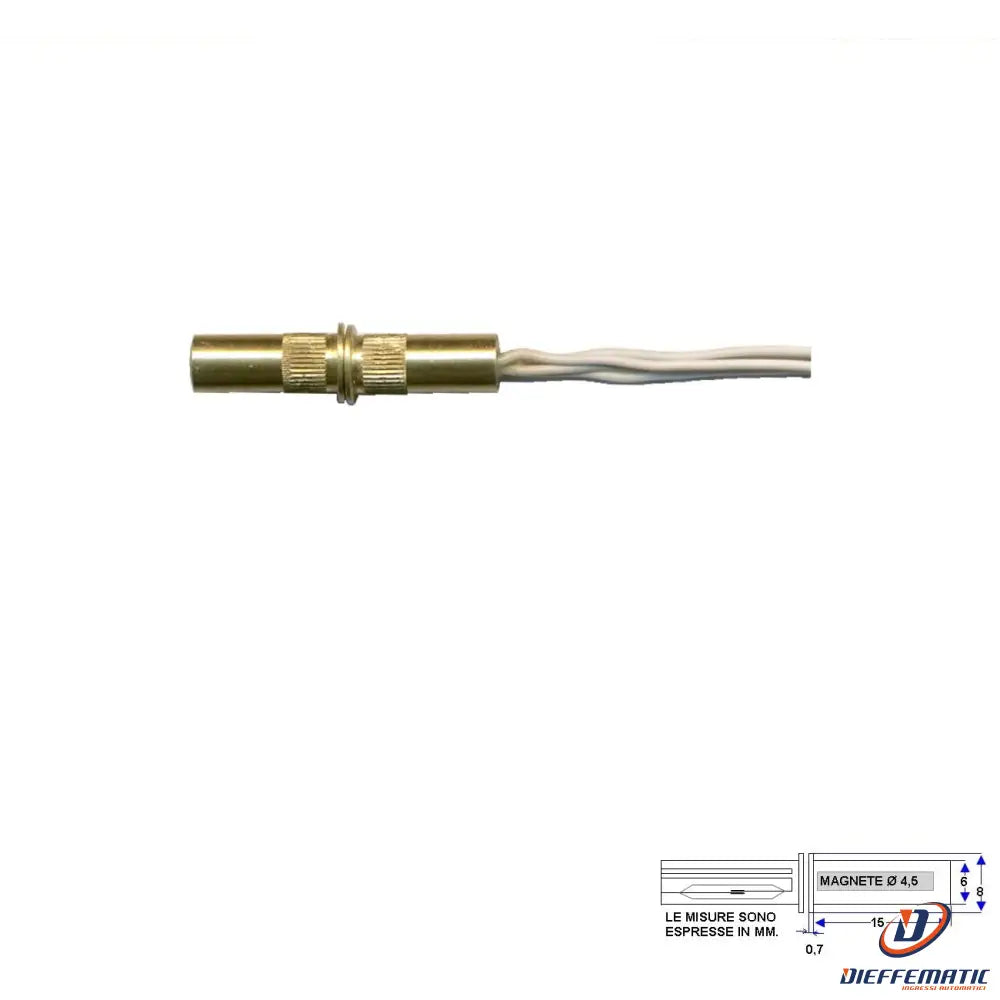

ST-105 NC Cylindrical Brass Magnetic Reed Contact, Nail-Shaped. Maximum switching current 1 A at 30 V resistive load. Magnetic field range 10 mm. Consists of 2 pieces of the same shape. Cylindrical brass housing (nail-shaped). The part with the wires contains a vacuum-sealed reed contact in a glass capsule, in the NO position. Bringing the magnet closer causes the contacts to close in the NC position. The 2 remaining wires are NC for the tamper connection. The other part contains a permanent magnet. Recessed installation. Particularly suitable for protecting non-ferrous frames in general, doors, windows, piece counters, limit switches for moving machinery, and more. The contact part, i.e. the part with the wires, must be installed on the fixed part of the frame, while the magnet must be positioned opposite it on the moving part (door). The protected frames must be fully closed. Complies with CEI 79-2 Level 1. IP65 protection rating. Operating temperature from - 25 to +70° C. Installed dimensions L30XD6, head D8 mm. Weight 7 g. Assembled and inspected at the Securvera facility in Rome. Guaranteed for 24 months against manufacturing defects and faults, as required by law. Complies with European directives: EN50131-2-6. EEC 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
LIST OF ITEMS FOR SALE:
01 ST-105 Cylindrical Brass Magnetic Reed Contact. Vacuum-Sealed REED, Max Current 30 V 1 A, IP65 Rating, Four Wires: 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as Required by Law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Observed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
