Description
Mini Cylindrical Brass Flush-Mount Magnetic Contact for Window and Frame Alarms, Vacuum-Sealed NC Reed Contact, 10 mm Operating Gap, 30 V Voltage, 1 A Resistive Load, IP65, 4 Wires, NC and Tamper
Model ST-105UCMOCOC
SKU: ST-105UCMOCOC

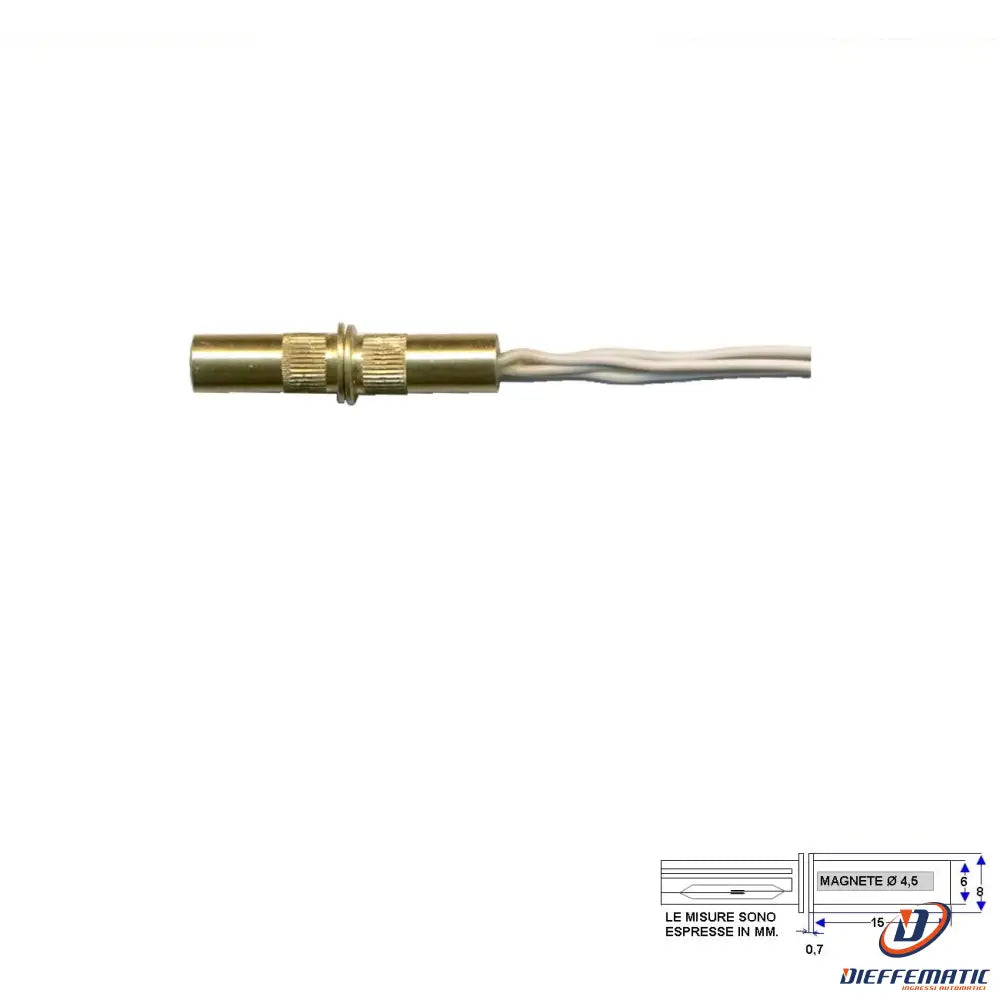

ST-105 NC cylindrical brass nail-type magnetic contact. Maximum switching current 1 A at 30 V resistive load. Magnetic gap: 10 mm. Consists of 2 parts of the same shape. Cylindrical brass housing (nail type). The part with the wires contains a vacuum-sealed glass reed switch, in the NO position. Bringing the magnet closer causes the contacts to close in the NC position. The 2 remaining wires are NC for the tamper connection. The other part contains a permanent magnet. Flush-mount installation. Particularly suitable for protecting frames in general, provided they are non-ferrous, as well as doors, windows, piece counters, limit switches for moving machinery, and more. Install the contact part, that is, the part with the wires, on the fixed part of the frame, and the magnet opposite it on the moving part (door). The protected frames must be completely closed. Complies with CEI 79-2 Level 1. Protection rating IP65. Operating temperature from - 25 to +70° C. Installed dimensions L30XD6, head D8 mm. Weight 7 gr. Product assembled and selected at the Securvera facility in Rome. Guaranteed in accordance with the law for 24 months against manufacturing defects and faults. Complies with European directives: EN50131-2-6. CEE 89/336 + 92/31 +93/68 D.L 04/12/1992 N 476. ERP 2009/125/CE; "RoHS" 2015/863/UE; R&TTE 99/05/EC. Electromagnetic Compatibility 2014/30/UE; Low Voltage 2014/35/UE and subsequent amendments, continuously updated
COMPONENTS FOR SALE:
01 ST-105 Cylindrical Brass Magnetic Reed Contact. Vacuum-Sealed REED, Max Current 30 V 1 A, IP65, Four Wires, 2 NC, 2 Tamper
01 SV-GAR Warranty Certificate as required by law: 24 Months; Qualified Installation Requirements D.M.37/2008, Lifetime Coverage Against Manufacturing Defects
01 SV-IST Detailed Installation Instructions; Must Be Followed: Connections, Polarity, Supply Voltage, Load
CLICK HERE TO DOWNLOAD THE MANUAL OR DIY GUIDE:
MANUFACTURER'S MANUAL
