Description
ADVANTAGES AND FEATURES
- high sensitivity with continuous adjustment
- different sensitivity settings for dual channels
- continuous presence setting for an unlimited time
- accurate compensation for external temperature to ensure reliable detection when the loop is occupied for extended periods.

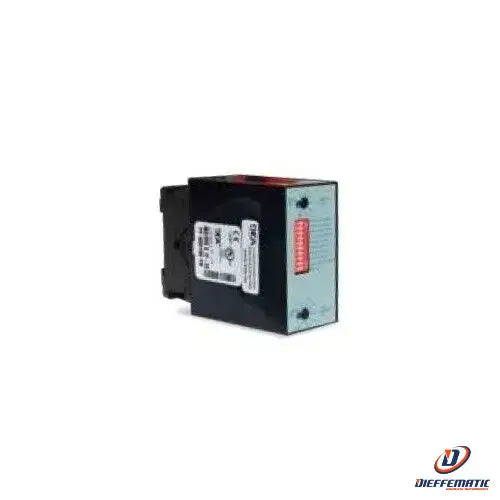

Mod. MATRIX-S
MAGNETIX is a range of precision metal mass detectors for connection to magnetic loops, which detect the presence of vehicles in a specific area.
The MAGNETIX range includes the BASIC model for single-channel 12/24V DIN rail mounting, and the DETEC and MATRIX models for Undecall socket mounting, available in single- or dual-channel 230V or 24V versions.
· Power supply: 12-24 Vac/Vdc
· Output: 1 relay output
· Inductance: 20 to 1000 µH
· Sensitivity: 250 levels
· Response time: 25 ms
· Temperature: -30°C +70°C
· Protection rating: IP40
· Max. contact voltage: 230 Vac
· Max. contact current: 5 A
· 11-pin socket for DIN rail included
· Dimensions: 77 x 40 x 75 mm
24-month warranty
