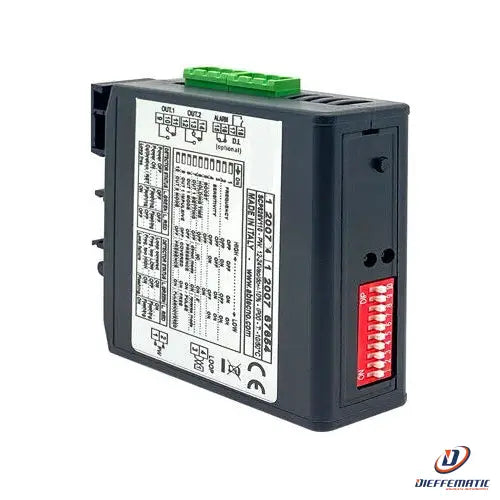

Magnetic Metal Mass Detector Module For Underground Cable Loop 12v 24v

12-24V single-channel detector for DIN rail mounting

ADVANTAGES AND FEATURES
- great sensitivity with the possibility of continuous adjustment
- different sensitivity adjustments in the case of dual channels
- continuous presence setting for an unlimited time
- Accurate external temperature compensation to ensure

a completely safe detection in case of long-term occupation of the loop.

MAGNETIX is a line of precision metal mass detectors

for connection to magnetic loops that allow the presence of vehicles in a given area to be detected.

The MAGNETIX line is divided into the BASIC model with single-channel 12/24V DIN bar mounting.

Power supply: 12-24Vac/dc
Absorption: 80mA
Loop inductance: 30µH. Ideal: 80µH to 500µH

Loop wiring: max length 100m 1.5mm min braiding 50x/m

Loop resistance: <8O with power cable
Frequency range: 20-80 KHz on 4 levels
Power supply: 12-24Vac/dc
Absorption: 80mA
Loop inductance: 30µH. Ideal: 80µH to 500µH Loop wiring:

max length 100m 1.5mm min braiding 50x/m Loop resistance: <8O with power cable
Frequency range: 20-80 KHz on 4 levels
Sensitivity range: 0.01% to 0.65% (f/f) on 4 levels
Relay output: relay OUT1 SP 5(1) A 250 Vac / relay OUT2 SP 5(1) A 250 Vac

Type of detection: impulsive (100ms) and/or presence for each output Connections: removable terminals
Signals: 1 red LED + 1 green LED
Data retention: on EEPROM memory
Container: plastic 111x28x92.5mm
Assembly: DIN - OMEGA guide
Front protection: IPOO
Conditions of use: ambient temperature:

-10/+50°C - storage temperature: -20/+70°C
Rel. humidity: ambient 30/80% without condensation
