Description
Complete kit for sliding gate automation
1600 kg
OIL-BATH
ideal for automating gates for intensive/industrial use
Professional
Mod. KV16 230v
SKU: KIT-KV16
Oil-bath electromechanical gearmotor for external installation, with all-metal gears, ensuring performance and reliability
Sophisticated pre-wired electronic control unit.
Advanced: thanks to independent management of the opening and closing travel.
Safe: thanks to the photocell monitoring function, which checks that the photocells are working correctly before each movement.
Base made entirely of die-cast aluminium.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

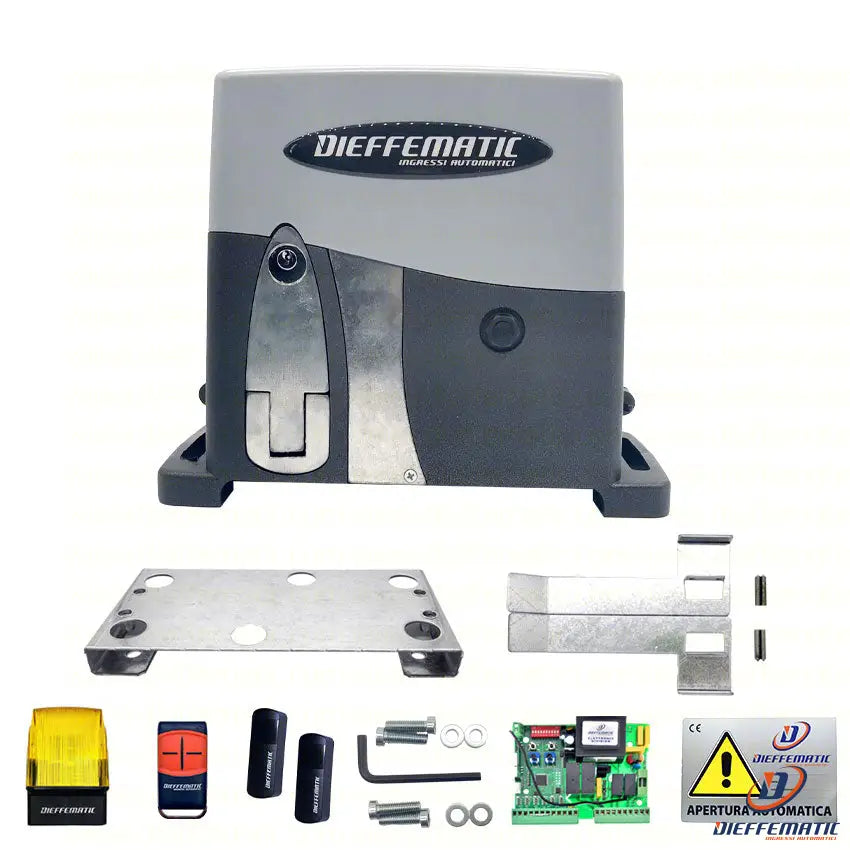

KIT CONTENTS:
No. 1 1600 kg electromechanical gearmotor (with built-in electronic control unit), 220V power supply with key release, dimensions H257 x W290 x D135 mm. Speed 12 m/min (UNI 8612 standards), weight 13 kg
No. 1 Galvanised foundation plate
No. 1 Control unit located in the motor housing, with motor force adjustment trimmer and obstacle detection, opening and closing slowdown, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, input for photocells and safety edges
No. 1 Single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 Antenna built into the control unit, range 20 metres (433.9 MHz)
No. 1 4-channel rolling-code remote control
No. 1 Pair of wall-mounted photocells
No. 1 230V flashing light
No. 1 Warning sign
No. 1 Installation accessories
No. 1 Mechanical and electronic installation instructions in ITALIAN
24-month warranty
