Description
Complete kit for automating a two-leaf SWING GATE with 230 V UNDERGROUND motors
+
2 GALVANIZED FOUNDATION BOXES
Professional
**For leaves up to 2.50 m and weighing 500 kg**
The CROMO underground gear motor automates new or existing swing gates.
Thanks to its ease of installation.
Using the gear motor does not require any changes to the aesthetic or functional structure of the gate, making it particularly popular for automating historic gates.
The gear motor consists of a single aluminium block containing the reduction gear assembly and electric motor, both of which operate continuously in an oil bath and are enclosed in a watertight IP67 steel casing.
The gear motor is suitable for operating gates weighing up to 500 kg, with a leaf length of 2.50 m (when an electric lock is installed).
The CROMO gear motor is supplied in the locked (IRREVERISIBILE) version.
TECHNICAL SPECIFICATIONS:
SUPPLY VOLTAGE: 230 V
MAX. ABSORBED CURRENT: 2.2 A
MOTOR SPEED: 1500 rpm
125° ROTATION TIME: 35 sec.
OPERATING TEMPERATURE: -30 / + 80°
ROTATION ANGLE: 125°
LUBRICATION: HD 80W/90
WEIGHT: 9 kg
THERMAL PROTECTION: 100°
Release with dedicated key
Aluminium structure, watertight
HOLE DIAMETER: 15 MM
MOUNTING BASE DIMENSIONS: 22 X 20 CM
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

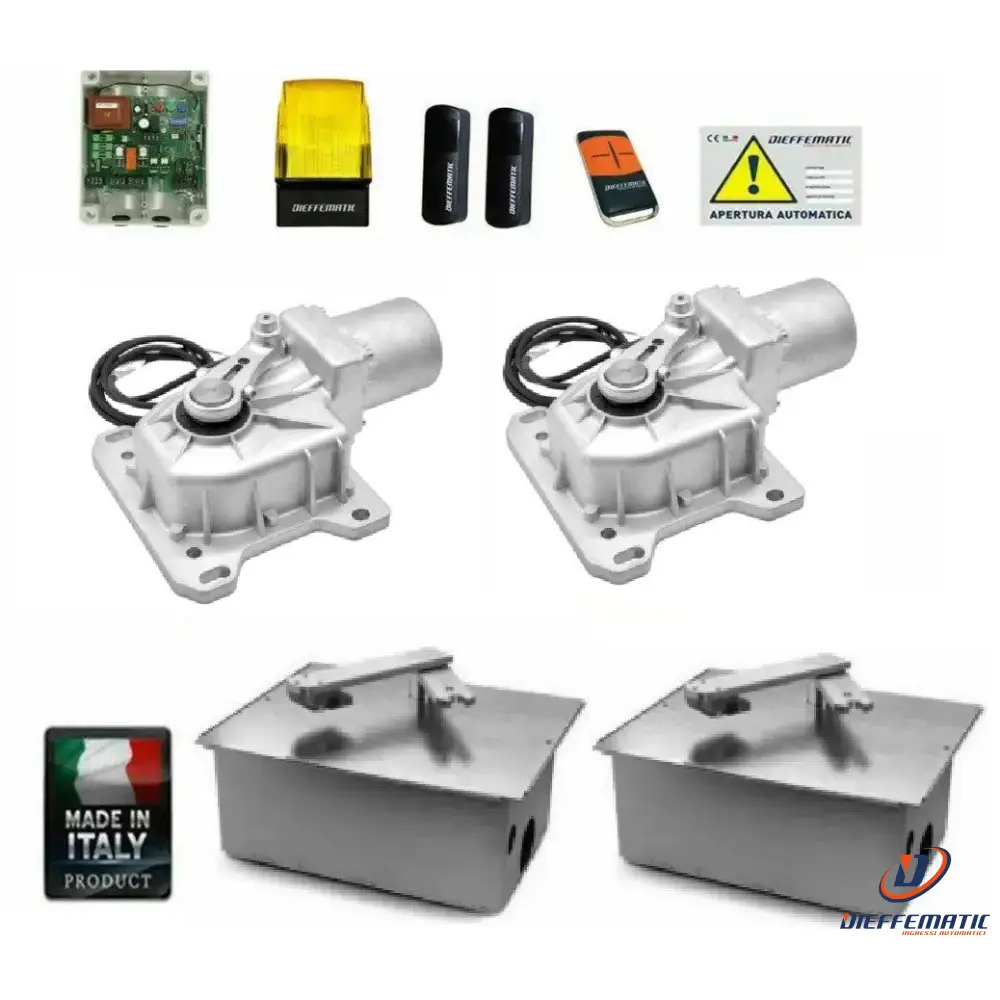

KIT CONTENTS:
2 electromechanical gear motors for residential use, high-performance electric motor. Emergency release. No electric lock required. Motor speed 1,400 rpm. Power 200 W. Adjustable thrust from 500 to 3000 N. Maximum opening angle 125°. Power supply 230 V. Weight 9.3 kg
1 control unit with watertight enclosure, featuring a motor force adjustment trimmer and obstacle detection, slowdown during opening and closing, and 4 operating modes: step-by-step, semiautomatic 1 and 2, and automatic condominium mode. Pedestrian input, courtesy light, overvoltage protection, input for photocells and safety edges, electric lock control, reverse impulse, adjustable leaf delay during closing/opening.
1 single-channel radio receiver built into the control unit (433.9 MHz)
1 antenna built into the control unit, range 20 metres (433.9 MHz)
1 4-channel Rolling Code remote control
1 pair of wall-mounted photocells
1 230 V flashing light
1 warning sign
1 set of installation accessories
1 set of instructions for installing the mechanical and electronic components in ITALIAN
24-month warranty
