Single Swing Gate Underground Automation Kit - CROMO 24V + Sonoff Mini D WiFi | Matter Smart Control
Professional kit for underground swing gate automation, for leaves up to 3.50 m and 500 kg, with CROMO 24V motors, ideal for residential installations, including historic gates. Without Foundation Boxes. Thanks to the Sonoff Mini D WiFi dry-contact module, the system can be integrated with Matter smart home systems and controlled via smartphone, voice commands (Alexa and Google), or the eWeLink app.
CROMO 24V motor technical specifications
Power supply: 24V
Max. current draw: 2,2 A
Motor speed: 1500 rpm
125° opening time: 35 sec
Operating temperature: -30° / +80°
Max. opening angle: 125°
Lubrication: HD 80W/90 oil bath
IP67 protection - aluminium housing
Emergency release with dedicated key
Motor weight: 9,3 kg
Mounting base dimensions: 22 x 20 cm
Smart control via Sonoff Mini D WiFi
WiFi relay with dry contact, compatible with all control units
Compatible with Matter, Alexa, Google Assistant, SmartThings
Remote control via the eWeLink app and voice commands
Scheduling functions, real-time status and multi-user control
Remains compatible with conventional push buttons
Simple, compact installation in an electrical panel

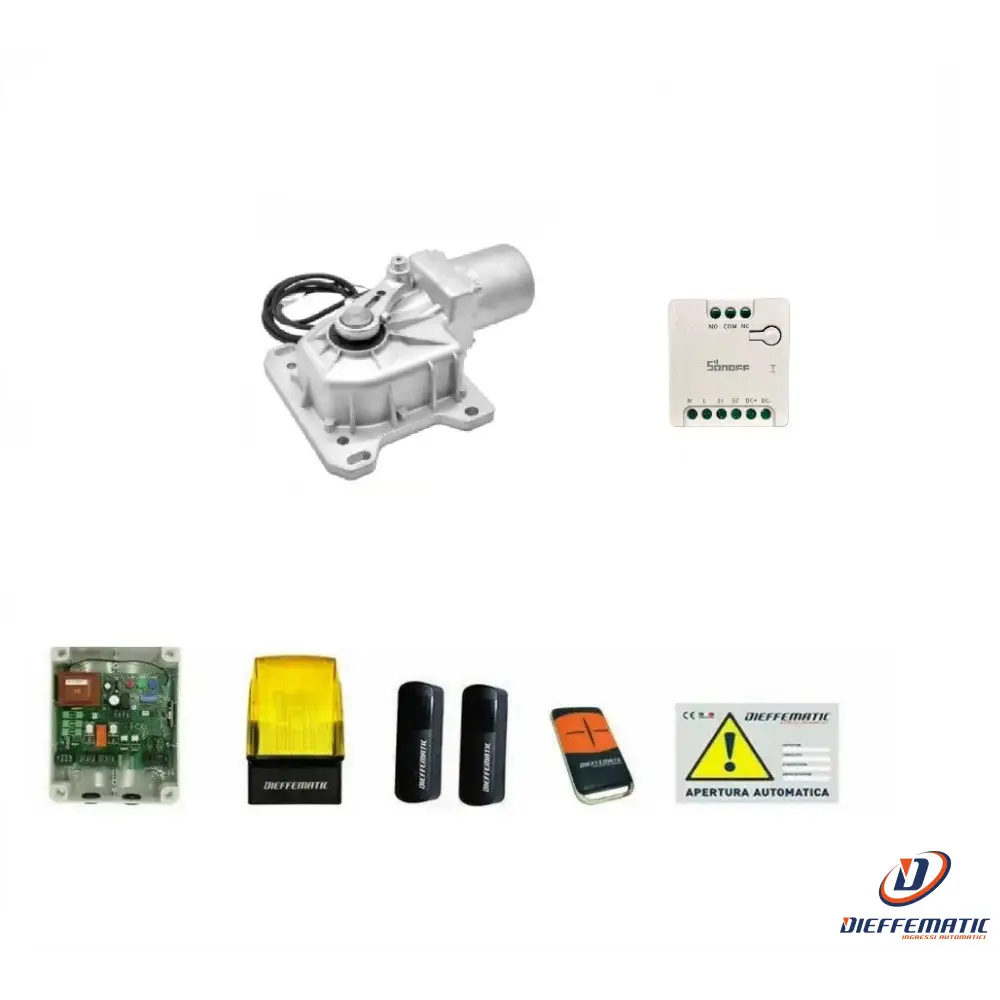

Kit contents
1 x CROMO 24V electromechanical gear motors with irreversible lock
1 x Electronic control unit with IP-rated enclosure and adjustment trimmers
1 x Integrated 433.9 MHz radio receiver
1 x Integrated antenna (20 m range)
1 x 4-channel rolling code remote control
1 x Pair of wall-mounted photocells
1 x 230V flashing light
1 x Warning sign
1 x Sonoff Mini D WiFi dry-contact relay
Mounting accessories
Instructions in Italian (mechanical and electronic)
PDF manuals
Mechanical installation manual (PDF)
Electronic installation manual (PDF)
Sonoff Mini D WiFi guide (PDF)
24-month warranty
