CAME 001U2313
801MS-0030 - 230 V AC

Sliding gates up to 800 kg - Max. gate leaf length 14 m

Key features
Operators for gates weighing up to 800 kg, with encoder control. Magnetic limit switches can be installed. The electronic control board includes separate terminal blocks and a display to facilitate start-up and diagnostics. The ZBX7N has an integrated display and memory roll, with connectors for RIOCN8WS, R700, R800, RSE cards and AF receiver. Stores up to 250 users with rolling code. Integrated decoding of rolling code and Key Code (Twin). Configurable safety inputs for resistive safety edges (8k2O). Management of wireless safety accessories via Rio plug-in accessory. Self-diagnostics for wired and wireless safety devices. Cloud connection via CAME Connect. Compatible with CAME keypads via the R800 accessory and CAME transponder selectors via the R700 accessory. Compatible with CAME KEY.

Additional features

Management of Rio wireless safety accessories, provision for magnetic limit switches and connection of Rio wireless safety devices.

Technical Specifications

MODELS 801MS-0030
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 230 AC
Motor power supply (V) 230 AC
Current draw (A) 2.6
Power (W) 530
Operating speed (m/min) 10
Duty cycle (%) 30
Operating temperature (°C) -20 ÷ +55
Motor thermal protection (°C) 150

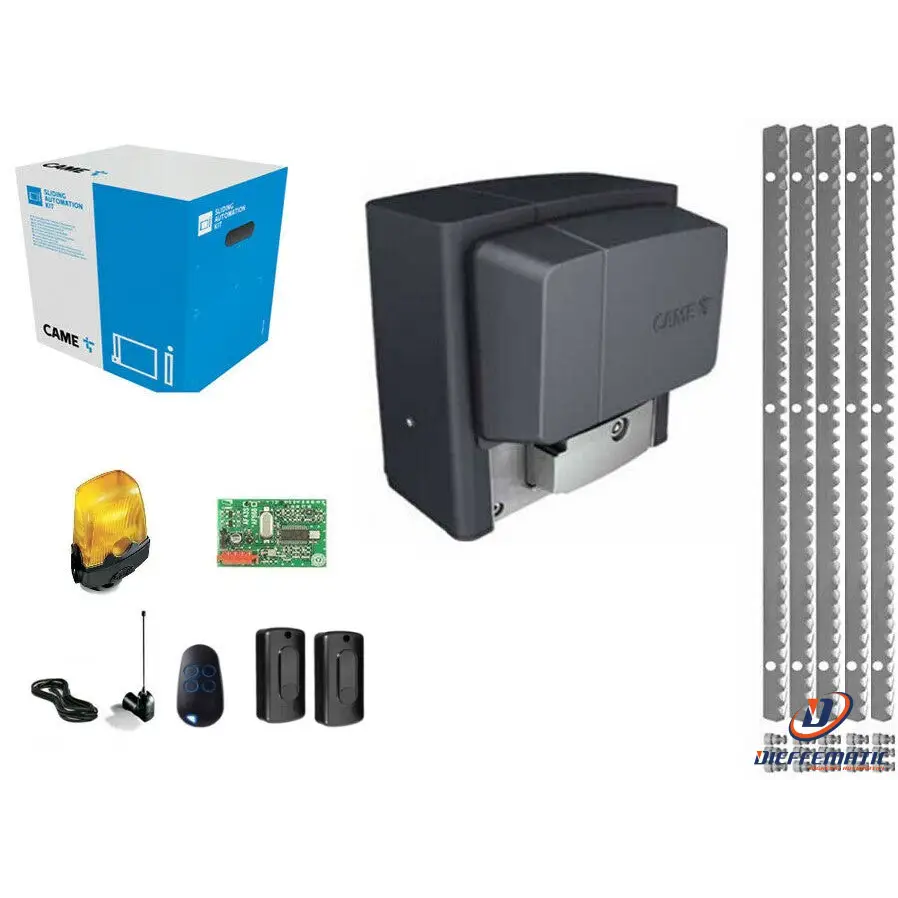

KIT CONTENTS:
1 801MS-0030 (ex. 001BX-78) Complete automation system with electronic control board
1 001AF43S Plug-in radio card at 433.92 MHz
1 001TOP-RG58 RG58 cable for antenna connection, 5 m
1 001DIR-10 Pair of photocells
1 001KLED 230V LED warning light
1 806TS-0102 TOPD4FKS 4-CHANNEL dual-frequency transmitter
1 001TOP-A433N Tuned antenna 433.92 MHz
1 Memory MEMORY ROLL came for saving settings

+ 5 METERS OF 30X12 GALVANIZED RACK

24-month warranty
