Description
CAME U2313
BX SERIES
Ideal solution for applications on sliding gates
Up to 800kg
MAIN FEATURES
Motorizations up to 400 and 800 kg, all with encoder control.
Possibility of installing magnetic limit switches.
Electronic board, with separate terminal blocks and display, to facilitate the start-up and diagnosis phases.
Storage of up to 250 different users.
Integrated Rolling code and Key Code (Twin) radio decoding.
Configurable safety inputs for the direct management of resistive sensitive edges (8k2¦¸).
Management of Rio series wireless security accessories using the dedicated plug-in accessory.
Max. length door (m)
14
Max. weight door (kg)
400
Pinion module
4
MODELS 801MS-0030
Degree of protection (IP) 44
Power supply (V - 50/60 Hz) 230 AC
Motor power supply (V) 230 AC
Absorption (A) 2.6
Power (W) 530
Maneuvering speed (m/min) 10
Intermittency/Work (%) 30
Operating temperature (°C) -20 ¡Â +55
Engine thermal protection (°C) 150

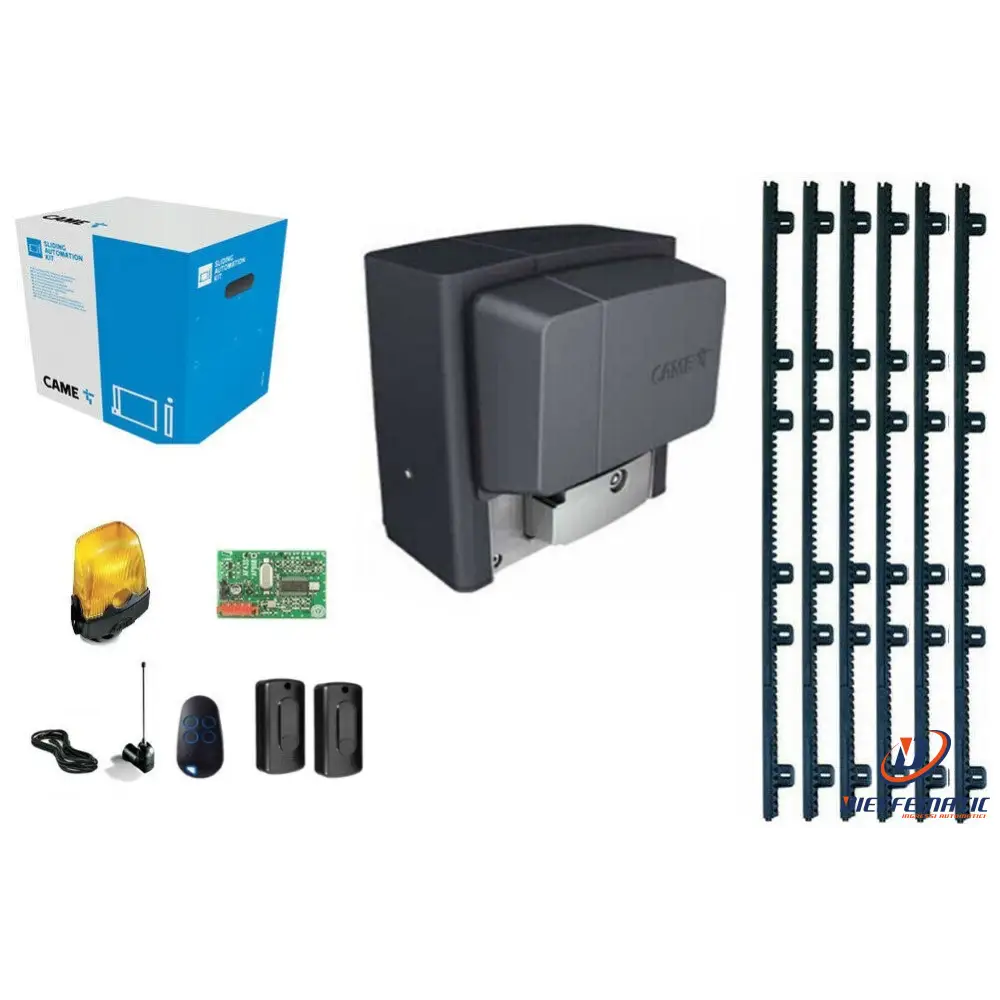

KIT COMPOSITION:
001U2313
Sliding gates up to 800 kg - Max length. 14 m door
1801MS-0030
BX708AGS - Automation complete with electronic board with programming display,
Built-in radio decoding, motion control and obstacle detection device
and mechanical limit switches for sliding gates up to 800 kg and 14 m in length.
1001AF43S
Plug-in radio frequency card.
1001TOP-A433N
Tuned antenna.
1806TS-0102
TOPD4FKS - Dual frequency transmitter, black colour.
1001DIR10
Pair of 12 - 24 V AC - DC outdoor photocells. Range: 10 m.
1001KLED
LED warning flasher.
+ 6 METERS OF NYLON RACK
24 month warranty
