600 kg Sliding Gate Automation Kit - 230V - KV6 Model with Sonoff WiFi Dry Contact Relay Included
Complete professional solution - 230V motor - Smartphone control included
Automate your sliding gate with the professional KV6 230V kit, designed to ensure reliable performance even in harsh environmental conditions, such as snow and freezing temperatures. Equipped with a powerful gearmotor, adjustable mechanical limit switch and smart control unit, it now also includes the Sonoff Mini D WiFi, so you can control the gate wherever you are, even by voice!
_________________________________________________
Main technical features
• 230V irreversible electromechanical motor for sliding gates weighing up to 600 kg
• All-metal gears and painted die-cast aluminium housing
• Adjustable mechanical limit switch, resistant to snow and ice (without contact with the rack)
• Manual key release in the event of a power failure
• Integrated control unit in the motor, protected by a moisture-resistant gasket
• Flexible operating modes: step-by-step, semi-automatic, automatic condominium mode
• Obstacle detection, torque adjustment, and opening/closing slowdowns
• Integrated radio receiver, antenna included (range 20 m)
• Compatible with photocells, courtesy light, safety edge and pedestrian entrance
• Encoder can be installed on request (optional)
_________________________________________________
Smart remote control included - Sonoff Mini D WiFi
The kit includes the Sonoff Mini D WiFi dry contact relay for remote gate control via smartphone:
• Free eWeLink app (iOS and Android)
• Compatible with Alexa, Google Home, Matter and SmartThings
• Voice control, timer management, scenes and notifications
• Ideal for residential or professional installations, including existing systems
_________________________________________________

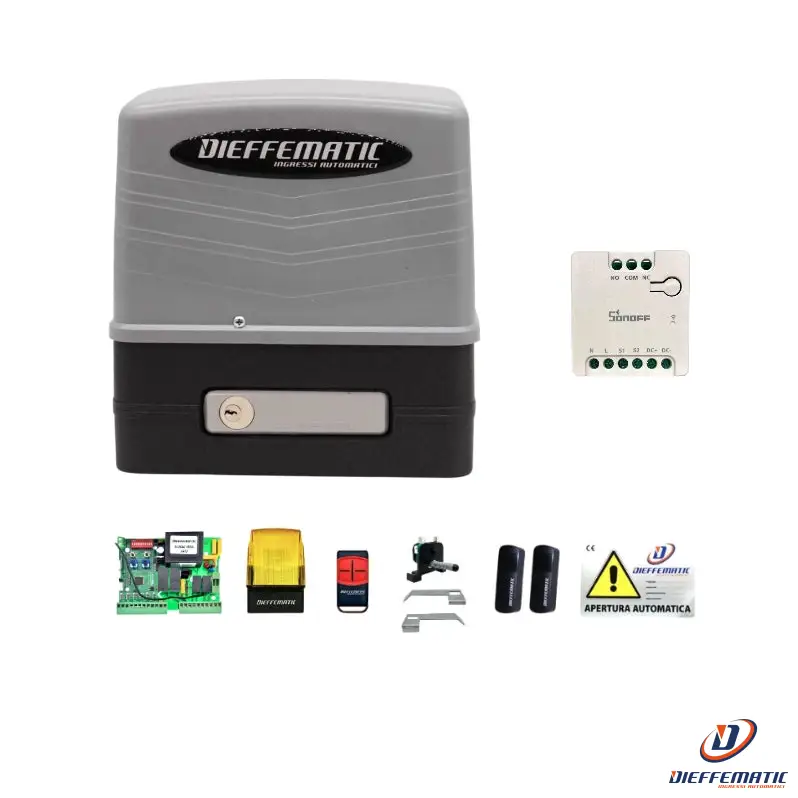

KV6 230V kit contents
• 1x 230V electromechanical motor - 600 kg - H270 x L230 x D210 mm - 8 kg
• 1x Galvanised foundation plate
• 1x Integrated electronic control unit
• 1x Single-channel 433.9 MHz radio receiver
• 1x Integrated antenna (range 20 m)
• 1x 4-channel rolling-code remote control
• 1x Pair of wall-mounted photocells
• 1x 230V flashing light
• 1x Warning sign
• 1x Installation accessories kit
• 1x Installation manual (mechanical and electronic) in Italian
• 1x Sonoff Mini D WiFi included
_________________________________________________
Available manuals
• Mechanical installation manual (PDF)
• Electronic installation manual (PDF)
• Sonoff Mini D manual (PDF)
24-month warranty
