Shipping
shipping in 10 working days
Description

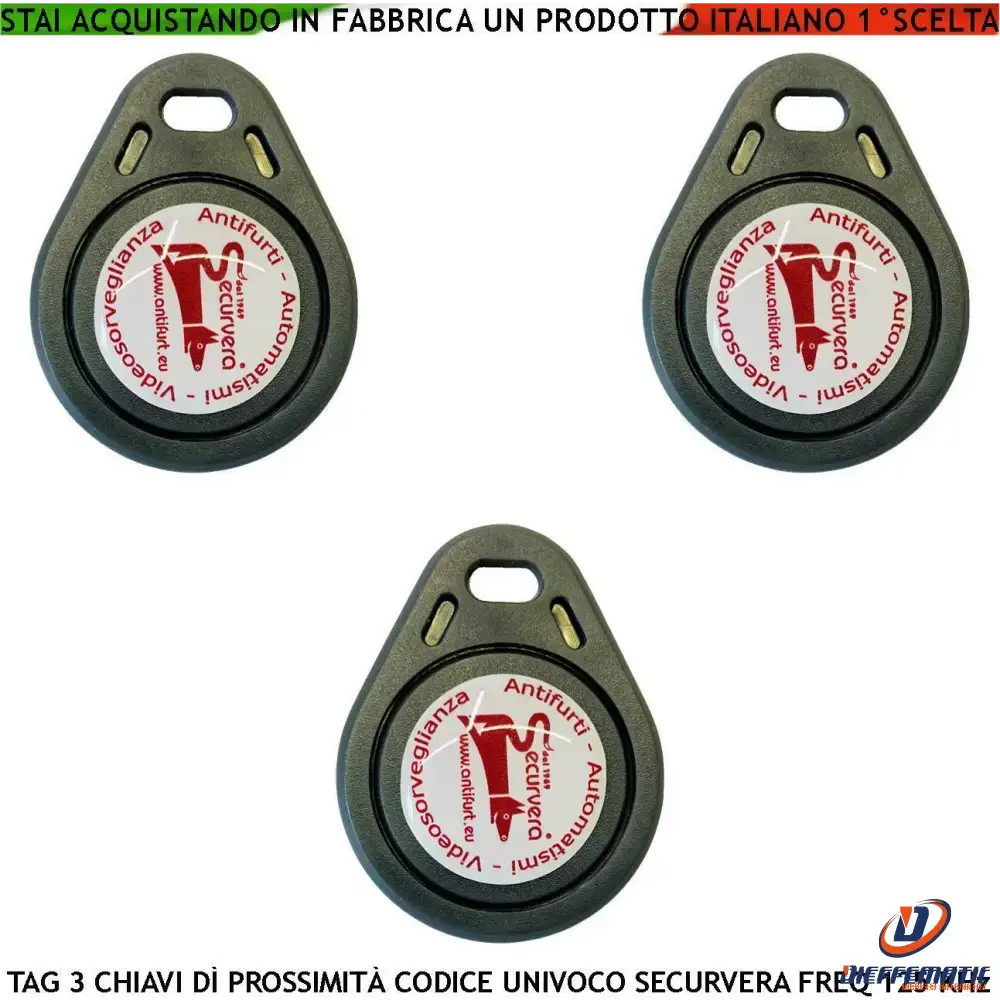

Key 3 High Security RFID Proximity Transponder Unique Code Securvera Radio Frequency 125 KHz with Keyring Hole Dimensions L40XL32XS6 mm Weight 5 g - SV-RKM3CPTCSC
Mod. SV-RKM3CPTCSC
SKU: SV-RKM3CPTCSC
SV-RKM High Security Proximity Electronic Keys; Three Transponders or TAGs with a hole for attaching to the key ring. EM-4100 Frequency 125 KHz. Securvera unique magnetic code. When brought close to the reader, the coil that powers the circuit is energized which returns 2 codes, one basic Securvera and one Rollin Code. The processor, after having recognized them, activates the control relay. Characteristics of the computer where it is to be used: Learns 400 SV-RKM proximity keys Securvera high security code. With the Learning function activated; the key is brought closer to the SV-LPD inserter; the LED turns on which confirms recognition of the new key. Three negative OC 100 mA outputs for zone partitioning, or microrelay activation. Negative output for false key. INB Input +/- control unit status signalling. Sleep absorption 3 mA. Power supply 12/24 Vacdc. Free exchange relay 2 A at 24 V. Key dimensions L40XL32XS6 mm. Weight 5 g. Compliance with CEI 79/2-3 safety standards. CEI EN 50130-4 Directives CE marking directive 99/5/CE. Product assembled and selected in the Securvera Roma factory. Guaranteed by law against defects and manufacturing defects
LIST OF COMPONENT(S) ELECTRONIC KEY KIT USEFUL FOR ACTIVATING ALARM SYSTEMS OR OPENING DOORS AND GATES:
03 SV-RKM Proximity Key TAG Securvera Codes Fr. 125 KHz We do not recommend the use of non-original keys Enters Lock
01 SV-GAR 24 Month, Lifetime Warranty Certificate Against Factory Defects: Installation by Qualified Personnel DM37/2008
01 SV-IST Detailed Assembly Instructions; Must Be Respected: Fixings, Special Connections (PDF Manual)
Securvera Registered Trademark 663069: Automated Entrance Control Sensors Alarm Wire and Fire Radio
Instructions or Installation Manual: You can find under the writing "CLICK TO GET THE GUIDE OR MANUAL"
Use Application Functions: Proximity Key Activation Intervention Switching Off Alarm System
Italian Manufacturer CE Products: Fire Alarm Control Panels Smoke Sensors Temperature Badenie Sirens
Electrical Stress Protection: Polarity Reversal False Key Control Sabotage Inhibition Circuit
Country of origin and Manufacturing: Made in Italy in the Securvera factory and Carefully Selected
Payment Forms or Systems: State Deductions or Tax Accounting via Traceable Bank Transfer
Warranty Beyond the Legal Terms: Product Guaranteed by Securvera for Life Against Factory Defects and Defects
Compatibility with other brands: Alarm systems any brand and type of security door openings
Installation Instruction Manual: Read the Manual Weights Measurements Functions Necessary Accessories Carefully
Article Code Model Type: SV-RKM3CPTCSC Proximity Key for Door Opening Alarm Systems
CLICK HERE TO DOWNLOAD THE MANUAL OR PRACTICAL DIY GUIDE:
MANUFACTURER'S MANUAL
24 month warranty
