Shipping
Shipping in 5-10 business days
Description
NOTICE
DELIVERY OF PRODUCTS IN THE BFT CATALOGUE MAY BE DELAYED.
PLEASE CHECK THE ALTERNATIVES AVAILABLE ON OUR WEBSITE OR CONTACT US WITH ANY QUESTIONS.
THANK YOU FOR YOUR PATIENCE AND UNDERSTANDING.

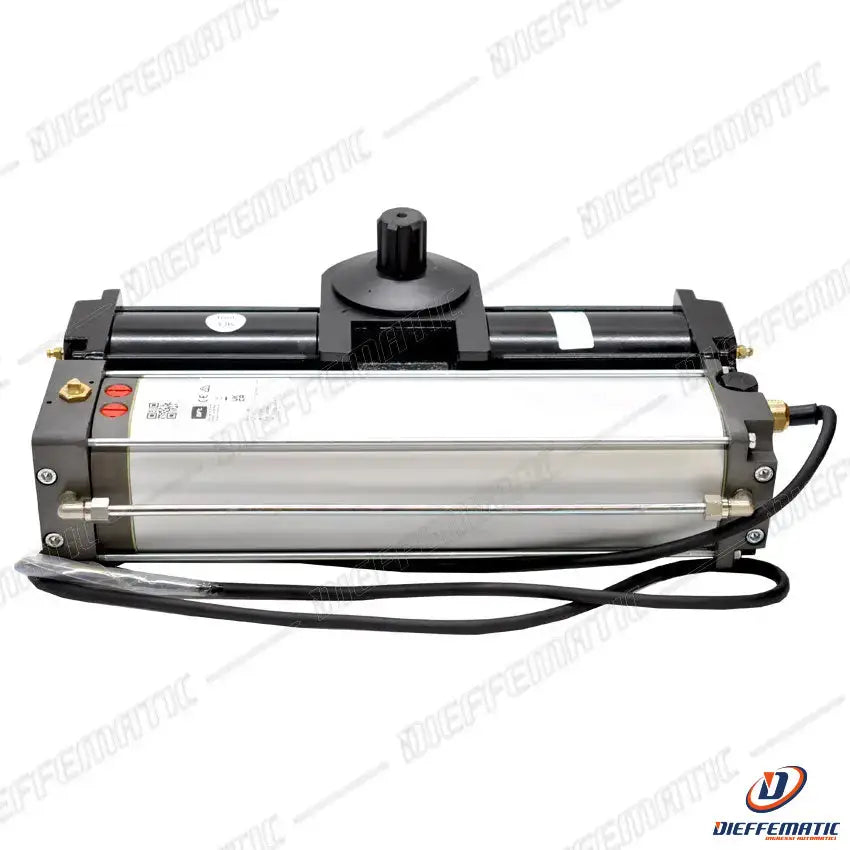

Irreversible underground hydraulic operator for swing gates up to 1.8 m. Operating time: 24 sec.
SKU: P930026 00001
U-Link: No
Control unit: Alcor N. Rigel5
Power consumption: 250 W
Limit switch type: Operating time
Slowdown: -
Impact response: Hydraulic clutch
Locking: Hydraulic on opening/closing
Release: Irreversible
Frequency of use: Very intensive
Ambient conditions (min): -10 °C
Ambient conditions (max): 60 °C
Protection rating: IP67
Actuator weight: 22 kg
Voltage: 230 V
Gate leaf weight: 800 kg
Kit: -
Application environment: Communal, industrial, residential, tertiary
Complete system: X
Maximum angle: 130 °
Operating time: 24 sec
Gate leaf length: 1.8 m
Motor power supply: 230 V
Declaration of conformity
Compatible control panel
ALPHA SD
Universal control panel for a 230V/500W single phase operator
Mod. SUB DX
Recommended accessories:
D113693 00003 RIGEL 5
D111013 ME
D113680 00002 ALPHA SD
D113706 00002 ALCOR N
D113748 00002 RADIUS B LTA 230 R1
D113749 00002 RADIUS B LTA 230 R2
D121018 ECB VERTICAL
D831081 CMS
P123001 00013 EBP 24
P123006 00001 EBPE 52
P123008 00001 EBPE 75
P123001 00001 EBP
N190104 BIR C
P111401 00001 VENTIMIGLIA NS
N733066 00004 FCS SX
N733066 00003 FCS DX
N733066 00002 CPS SX
N733066 00001 CPS DX
N733092 CPS G
N728002 BSC
P123025 B 00 R02
D111904 MITTO B RCB02 R1
P121024 Q.BO TOUCH
P121022 Q.BO KEY WM
P121023 Q.BO KEY WM AV
P111526 DESME A15
P903018 PHP
24-month warranty
eb: 371772775784
BFT INTERNATIONAL CODE 2600858
