Description

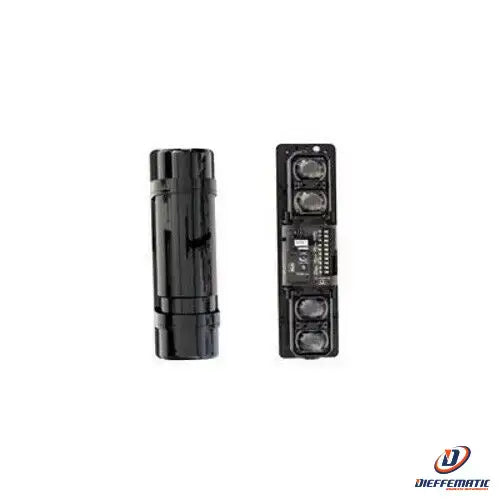

IR barrier, 2 dual beams, max. range 200 m * outdoors, IP55
Mod. 4PH-200A
The PH range consists of a barrier with a maximum outdoor range of 60 m and 1 dual IR beam, a barrier with a maximum outdoor range of 150 m and 1 dual IR beam, and a barrier with a maximum outdoor range of 200 m and 2 dual beams.
They operate on 4 different frequencies selectable via dip switch and feature high-quality aspherical lenses and a housing with gaskets, making them suitable for outdoor pole-mounted installations too (brackets included).
nominal range indoors 500 m, outdoors 250 m
2 dual I.R. beams
transmission selectable on 4 different frequencies
no synchronization wire
disqualification output
dual sight for optical alignment with micrometric adjustment
beam adjustment from 0° to 180°
beam interruption time adjustment
standalone use or in an INFRA column
Power supply: 10.5-28 Vdc
Current consumption: 77 mA
Relay response time: 50 to 700 ms
Detection mode: interruption of the 4 beams
Output relay: 1 alarm N.O./N.C. - rating 0.2 A -30 Vdc
1 disqualification N.O./N.C. - rating 0.2 A -30
Vdc 1 tamper N.O./N.C. - rating 0.2 A -30 Vdc
Adjustment angle: horizontal 0 - 180° - vertical ± 10°
Power supply cable cross-section: 2 x 0.75 mm2 for 5 m - 2 x 2.5 mm2 for 150 m
Signal cable cross-section: 2 x 0.22 mm2 for 150 m of cable
Protection rating: IP 55
Operating temperature: -20° to +55° C
Dimensions and weight: 100 x 390 x 100 mm - 3700 g
