Shipping
Shipping in 5-10 business days
Description

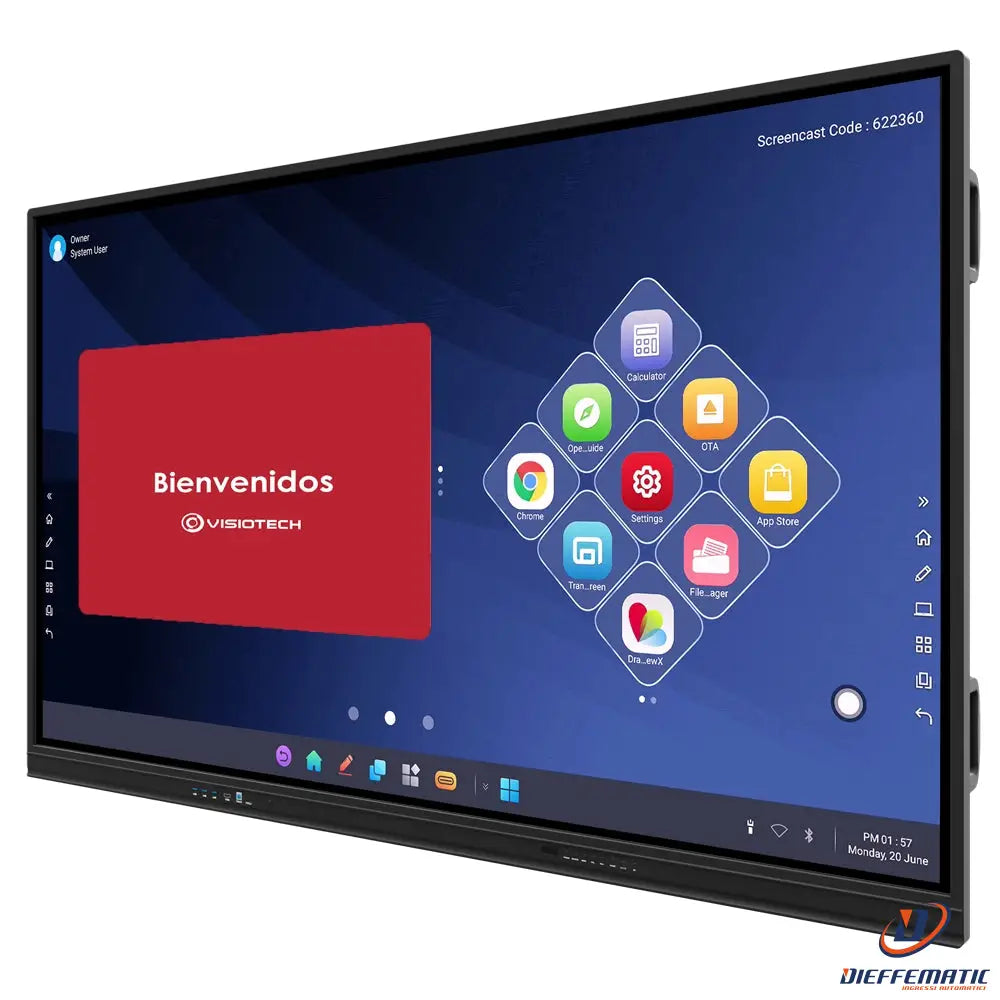

75" 4K interactive touchscreen
Model IB-TE-MP-75E1-V3L
SKU: IB-TE-MP-75E1-V3L
• IBOARD 75" 4K interactive touchscreen
• Resolution 3840x2160
• HDMI, VGA, DP, Type-C, LAN, USB, OPS inputs
• 178° viewing angle
• Built-in speakers
• Android 14.0
DESCRIPTION:
• IBOARD - 75" 4K interactive touchscreen
• TE-MP-E1-V3L Series
• 4 mm anti-glare glass
• D-LED panel
• Resolution 3840 x 2160
• Brightness 400 cd/m2
• 5000:1 contrast
• 178° viewing angle
• Android 14.0
SPECIFICATIONS:
Brand
IBOARD
Size (inches)
75"
Resolution
3840x2160 (4K) @ 60Hz
Aspect ratio
16:9
Backlight
DLED
Brightness
400 cd/m2
Automatic brightness sensor
Yes
Contrast
5000:1
Viewing angle (H/V)
178° / 178°
Anti-glare glass
4mm
7H hardness on the Mohs scale
Touch technology
Infrared touch frame
Touch accuracy
Opaque objects < 2mm
Simultaneous touches
? 20 (Android)
? 50 (Windows)
Inputs
Front:
1x HDMI 2.0
1x USB-C (Touch, data, audio, video and 15W charging)
3x USB-A 3.0
1x USB-B (Touch)
Rear:
2x HDMI 2.0
1x VGA & AUDIO
1x DP
3x USB-A 3.0
1x USB-C (Touch, data, video and audio)
1x Touch USB
1x TF card slot
1x RS232
1x RJ45 (10/100/1000Mbps)
1x OPS slot
Outputs
1x HDMI OUT
1x SPDIF (Optical)
1x Headphones
1x RJ45
Front buttons
- Power on/off (Power)
- Source (Source)
- Menu (Menu)
- Volume down (Vol - )
- Volume up (Vol +)
- Home (Home)
- Confirm (Enter)
- Panel off (ES)
Operating system
Android 14.0
CPU: 2 x A76 @ 1.9G + 2 x A55 @ 1.9
GPU: Mali G57 (4 cores)
Wi-Fi
Wi-Fi 6 (2.4G / 5G)
Bluetooth
5.2
Ethernet
10/100/1000Mbps
RAM
8 GB
Storage
128 GB
Response time
8ms
Wireless screen sharing
Yes, via application
Whiteboard application
Drawview X
App Store
App Store (Manufacturer's own application)
Italian version
MDM
RADIX (Remote management, configuration and monitoring of multiple devices, with OTA updates and centralized control)
Speaker
2 x 20W
VESA
600 x 400mm
Power supply
AC 100 V ~ 240 V, 50/60 Hz
Power consumption
<1W (Standby)
< 350W (Rated power)
Dimensions
1707mm (W) x 1030mm (H) x 85mm (D)
Weight
48 kg
Certifications
CE
FC
ROHS
Energy Star
CONTENTS:
75" IBOARD 4K interactive touchscreen
• 2 styluses
• 1 3 m HDMI cable
• 1 3 m USB-B to USB-A cable
• 1 2 m USB-C cable
• 1 1.8 m power cable
• 1 remote control
• 1 wall mount
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF datasheet
24-month warranty
