Description

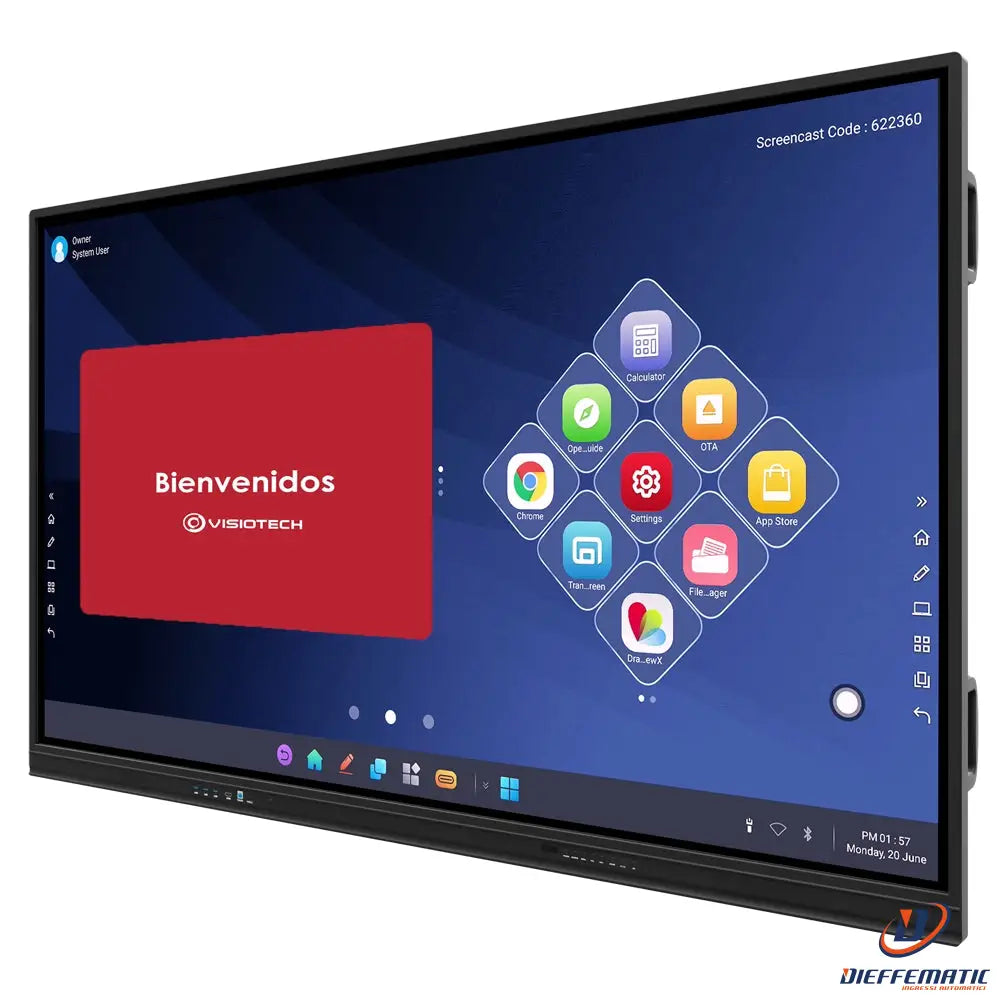

55" 4K Interactive Screen
Model IB-TE-MP-55E1-V2
SKU: IB-TE-MP-55E1-V2
• IBOARD 55" 4K Interactive Screen
• 3840x2160 resolution
• HDMI, VGA, DP, Type-C, LAN, USB, OPS inputs
• 178° viewing angle
• Integrated speakers
• Android 13.0
DESCRIPTION:
• IBOARD - 55" 4K Interactive Touch Screen
• TE-MP-E1-V2 Series
• 4mm anti-glare glass
• D-LED panel
• 3840 x 2160 resolution
• 350 cd/m2 brightness
• 1200:1 contrast
• 178° viewing angle
• Android 13.0
SPECIFICATIONS:
Brand
IBOARD
Size (inches)
55"
Resolution
3840x2160 (4K) @ 60Hz
Aspect ratio
16:9
Backlight
DLED
Brightness
350 cd/m2
Automatic brightness sensor
Yes
Contrast
1200:1
Viewing angle (H/V)
178° (H/V)
Anti-glare glass
4mm
Touchscreen technology
Infrared touch frame
Touch accuracy
Opaque objects < 2mm
Simultaneous touches
? 20 (Android)
? 50 (Windows)
Inputs
Front:
1x HDMI 2.0
1x USB-C (Touch, data, audio and video)
3x USB 3.0
1x USB-B (Touch)
Rear:
2x HDMI 2.0
1x VGA & AUDIO
1x YPBPR
2x USB 3.0
1x USB 2.0
1x Touch USB
1x TF card slot
1x RS232
1x RJ45
1x AV
1x MIC
1x DP
1x USB-C (data)
1x OPS slot
Outputs
1x HDMI
1x SPDIF (optical)
1x Headphones
1x RJ45
1x AV
Front buttons
- Power
- Source
- Menu
- Volume down (Vol - )
- Volume up (Vol+)
- Home
- Enter
- Panel off (ES)
Operating system
Android 13.0
4x ARM Cortex-A55@1.9GHz
Quad-Core MaliG52
Wi-Fi
Dual Wi-Fi module
802.11 a/b/g/n/ac
Bluetooth
5.0
Ethernet
10/100/1000M
RAM
4G
Storage
32G
Response time
8ms
Wireless screen sharing
Yes, using the application
Whiteboard application
Drawview X
Speaker
2x15W
Minimum touch contact surface
< 2mm
VESA
400x400 mm
Power supply
AC 100 V ~ 240 V, 50/60 Hz
Power consumption
<1W (Standby)
< 150W (Rated power)
Dimensions
1263mm (W) x 780mm (H) x 84mm (D)
Weight
31 kg
CONTENTS:
55" IBOARD 4K interactive touch screen
• 2 styluses
• 1 2 m HDMI cable
• 1 USB-B to USB-A cable, 1.5 m
• 1 1.8 m power cable
• 1 remote control
• 1 wall bracket
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF data sheet
24-month warranty
