Description

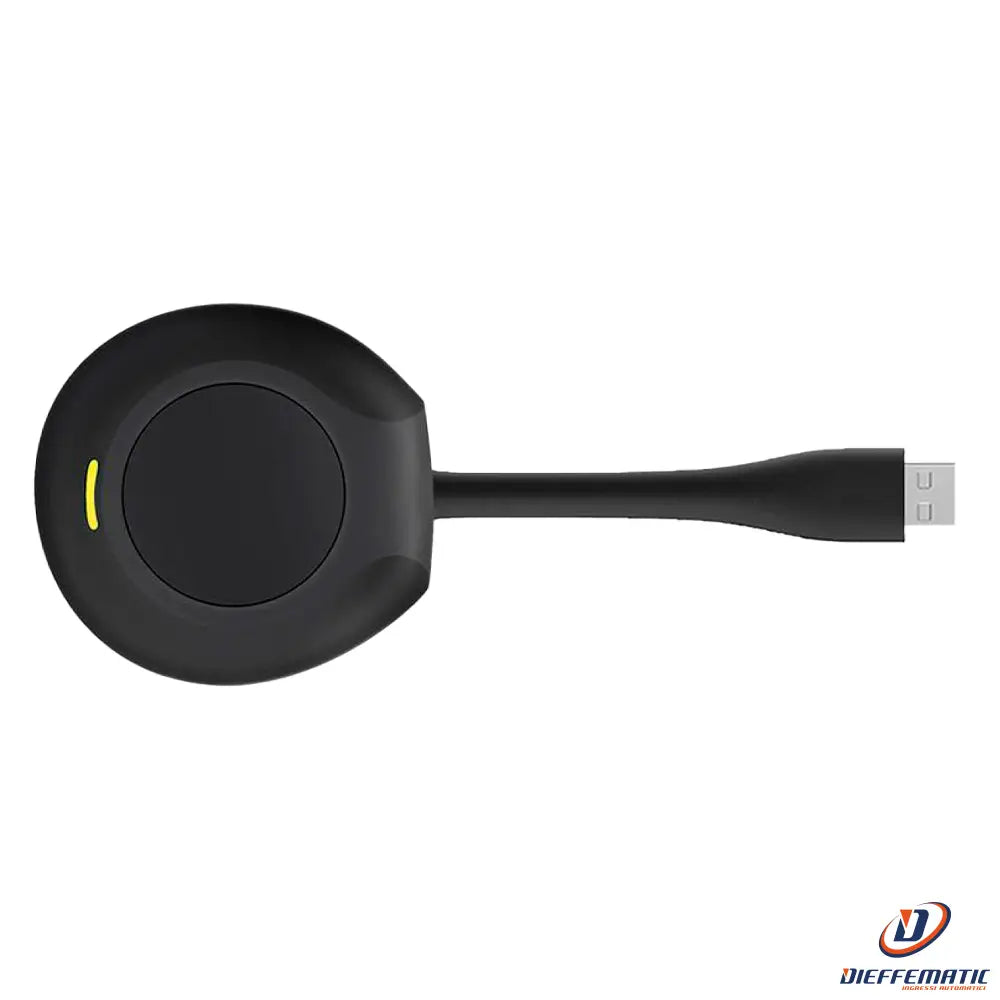

Wireless transmission dongle
Model IB-PTB1209
SKU: IB-PTB1209
• Compatible with iBoard interactive displays
• Wireless transmission dongle
• Maximum resolution 1920x1080p
• USB-A connection
DESCRIPTION:
A wireless dongle is a device that lets you share an image from a PC to an external display in real time without cables. It connects to the PC via a USB port and uses Wi-Fi or Bluetooth to sync with the receiving display.
It is a very useful tool in meeting rooms, classrooms, and other settings, as it makes presentations, video conferences, and collaborative work simple and efficient.
• IBOARD
• Wireless screen-sharing dongle
• 1920x1080p resolution
• Compatible with iBoard interactive displays
SPECIFICATIONS:
Brand
IBOARD
Interface
USB-A
Maximum transmission resolution
1920x1080p
Power supply
5.0V - 500mA (via USB)
Pairing and transmission mode
1. Connect the dongle to the interactive display via USB
2. Connect the dongle to the PC via USB
3. Install the software on the PC (first use)
4. Click the dongle to start transmitting
Video transmission delay at maximum quality
< 130ms
Mouse transmission delay
< 60ms
Wi-Fi (dongle-to-interactive display connection)
2.4GHz - 5GHz
Transmission distance
< 30m
Compatibility with interactive displays
iBoard interactive displays
Compatibility with PC startup
Windows 7/8/10
Mac OS 10.8/9/10/11/12
Touch points for sharing
10
Dimensions
186mm (H) x 74mm (W) x 19.5mm (D)
Weight
85g
CONTENTS:
• IB-PTB1209 Dongle
• User manual
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF Datasheet
IB-PTB1209 User Manual
IB-PTB1209 User Manual
24-month warranty
