Description
Complete Kit for Automating a Two-Leaf SWING GATE
for HYDRAULIC MOTORS - COMPATIBLE WITH FAAC 400
NON-REVERSIBLE (LOCKED)
Professional
Mod. PH1 230v
**For leaves up to 2.00 m**
Refined mechanics: oil-based operation lubricates all mechanical components internally, ensuring performance and reliability.
Safe: anti-crush protection with bypass valves for setting the maximum thrust.
Spherical joint for millimetric adjustment.
Convenient release with triangular key.
Extruded aluminium structure.
Control unit with built-in receiver for controlling 1 or 2 leaves.
Electronic clutch with convenient, quick travel adjustment; second-leaf delay can be adjusted.
Slowdown during opening and closing.
Suitable for symmetrical and asymmetrical gates thanks to the ability to control each leaf's travel independently.
CLICK THE LINKS FOR THE INSTRUCTION MANUALS:
MECHANICAL INSTALLATION MANUAL
ELECTRONIC INSTALLATION MANUAL

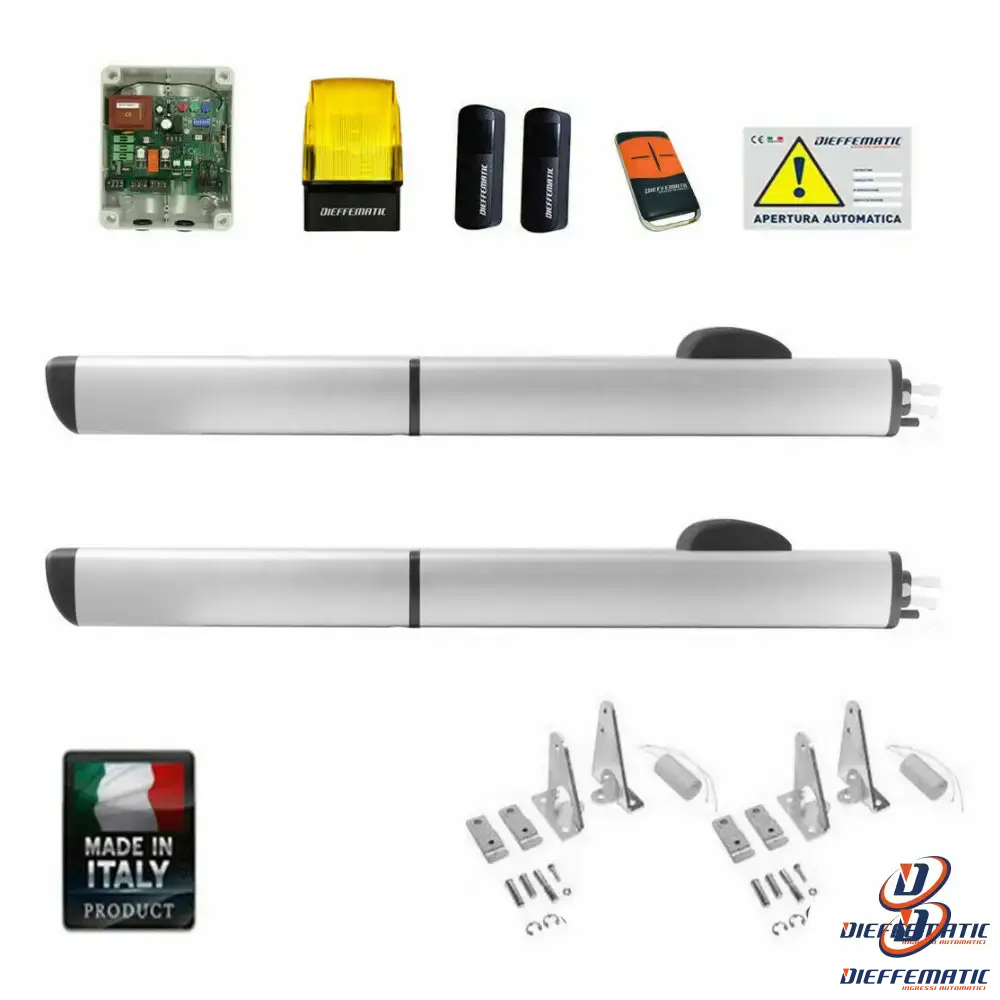

KIT CONTENTS:
No. 2 Hydraulic operators for residential swing gates with leaves up to 2 m. No electric lock required.
Motor speed 1,400 rpm. Power 200 W. Adjustable thrust from 500 to 3,000 N. Maximum opening angle 120°. Power supply 220 V. 50 Hz. Weight 6.3 kg
No. 1 Control unit with watertight enclosure, motor force adjustment trimmer and obstacle detector, slowdown during opening and closing, 4 operating modes: step-by-step, semi-automatic 1 and 2, automatic condominium mode. Pedestrian entrance, courtesy light, overvoltage protection, input for photocells and safety edges, electric lock control, reverse stroke, adjustable leaf offset during closing/opening.
No. 1 Single-channel radio receiver built into the control unit (433.9 MHz)
No. 1 Antenna built into the control unit, range 20 metres (433.9 MHz)
No. 1 4-channel Rolling Code remote control
No. 1 Pair of wall-mounted photocells
No. 1 230 V flashing light
No. 1 Warning sign
No. 1 Installation accessories
No. 1 Mechanical and electronic installation instructions in ITALIAN
24-month warranty
