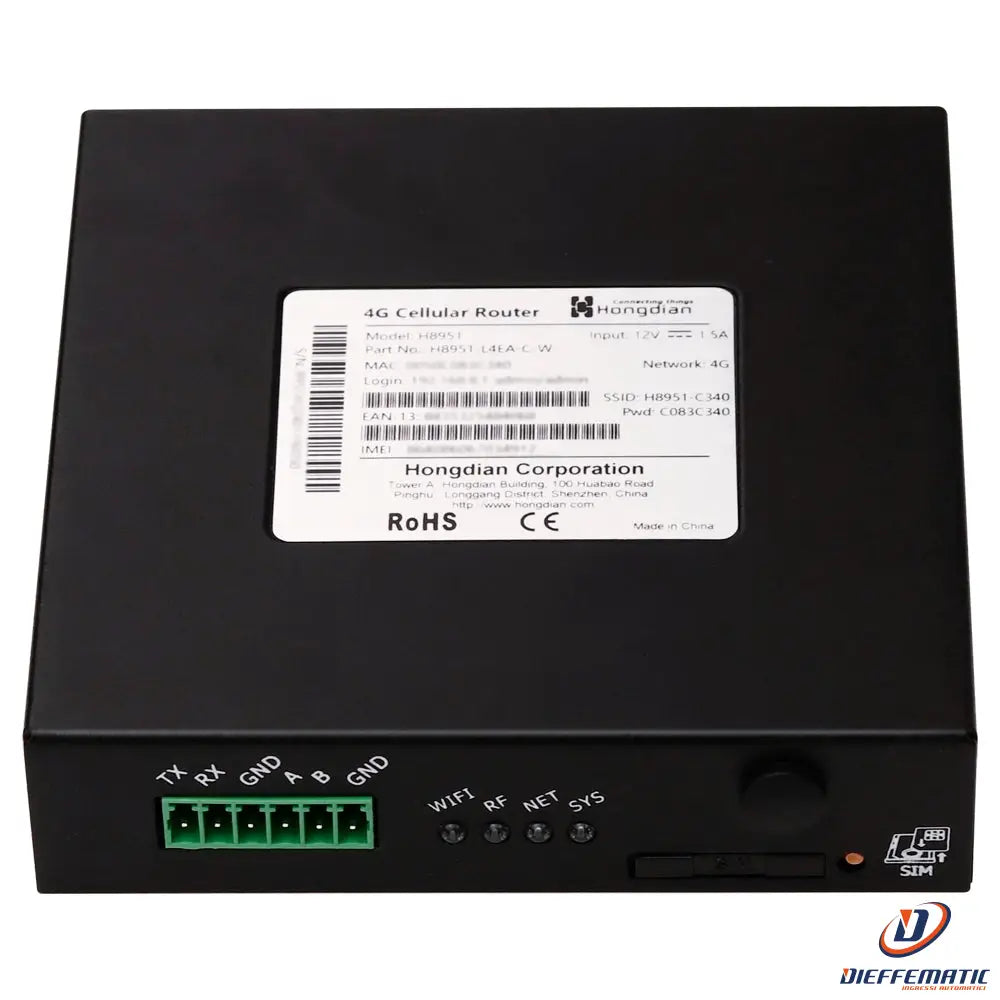

Hongdian HG-H8951-L4EA-S-WG 4G Industrial Router

4G industrial router

Model HG-H8951-L4EA-S-WG

SKU: HG-H8951-L4EA-S-WG

• Hongdian 4G industrial router

• 4G Cat 4 - GPS

• 2 RJ45 Fast Ethernet ports

• 4G/3G SIM card slot

• RS232/RS485 ports

• 2.4GHz Wi-Fi 802.11b/g/n


DESCRIPTION:

Hongdian routers feature a stable, always-on connection, essential for mission-critical applications. They provide secure data protection through advanced VPN and encryption protocols, ensuring secure transmission of information. These devices are designed to withstand harsh environments and ensure continuous operation.


• 4G industrial router with Wi-Fi and GPS

• 2 RJ45 Ethernet ports, 10/100 (1xWAN/LAN+1xLAN)

• RS232/RS485 serial ports

• 2.4GHz Wi-Fi 802.11b/g/n

• 4G/3G SIM card slot (SIM card not included)

• 4G LTE CAT4

• Wi-Fi and LTE antennas included

• Wall-mounted or desktop installation

• 5 to 36 V DC power supply (12 V power supply included)

• Status LED


SPECIFICATIONS:

Brand
Hongdian

Device
4G industrial router

SIM
1 slot for 4G/3G 2FF SIM card (not included)

Positioning
Supported technologies: GPS, GLONASS, BeiDdou, Galileo
Protocol: NMEA 0183
Coordinates: WEB UI, RMS

Ethernet
2 RJ45 Ethernet ports, 10/100 Mbps LAN or 1 x LAN/WAN + 1 x WAN

Serial ports
Switchable between RS232 and RS485 via web interface
Transparent, Modbus RTU
Port definitions: RX, TX, GND (RS-232), A+, B-, GND (RS-485)
6-pin 3.5 mm female socket connector
RS-232 transmission speed (300-115200bps), RS-485 (300-115200bps)

Wi-Fi
Wi-Fi 4 802.11 2.4GHz
WEP, WPA, WPA2 security
64/128-bit AES encryption, TKIP

LTE frequencies
4G (LTE-FDD): B1/B3/B5/B7/B8/B20
4G (LTE-TDD): B38/B40/B41
3G: B1/B5/B8
2G: B3/B8

Antenna connectors
Wi-Fi, LTE and GPS (antennas included)

CPU
MIPS 24Kc 580MHZ

RAM
128 MB

Flash
16 MB

Network protocols
PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP, ICMP, NAT, HTTP, HTTPS, DNS, ARP, NTP, Telnet, SSH2, DDNS, APN, VPDN, VLAN, QoS, Static Routing, Policy Routing, RIP, OSPF, BGP, Failover.

Monitoring and management
HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP

VPN protocols
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard

Security
NAT, PAT, DMZ, Port Forward, IP/Domain/MAC Filter, Access Control List, DDoS prevention, Anti-port scanning

Power supply
DC 5~36V (12V power supply included)

Power consumption
Idle: 100mA@12vDC
Data connection: 350mA@12vDC

Material
Metal

Protection rating
IP30

Operating temperature
-30° C ~ +75° C

Operating humidity
0 ~ 95% (non-condensing)

Installation
Wall-mounted or desktop

Dimensions
23.4 (H) x 98.8 (L) x 99.7 (D) mm

Weight
300 g

Region
Europe, Middle East, Africa, Korea, Thailand, India, Malaysia


CONTENTS:

• 4G industrial router

• 12 V DC power supply

• LTE, GPS and Wi-Fi antennas

• 1 m Ethernet cable

• Wall-mounting kit
