Shipping
Shipping in 5-10 business days
Description

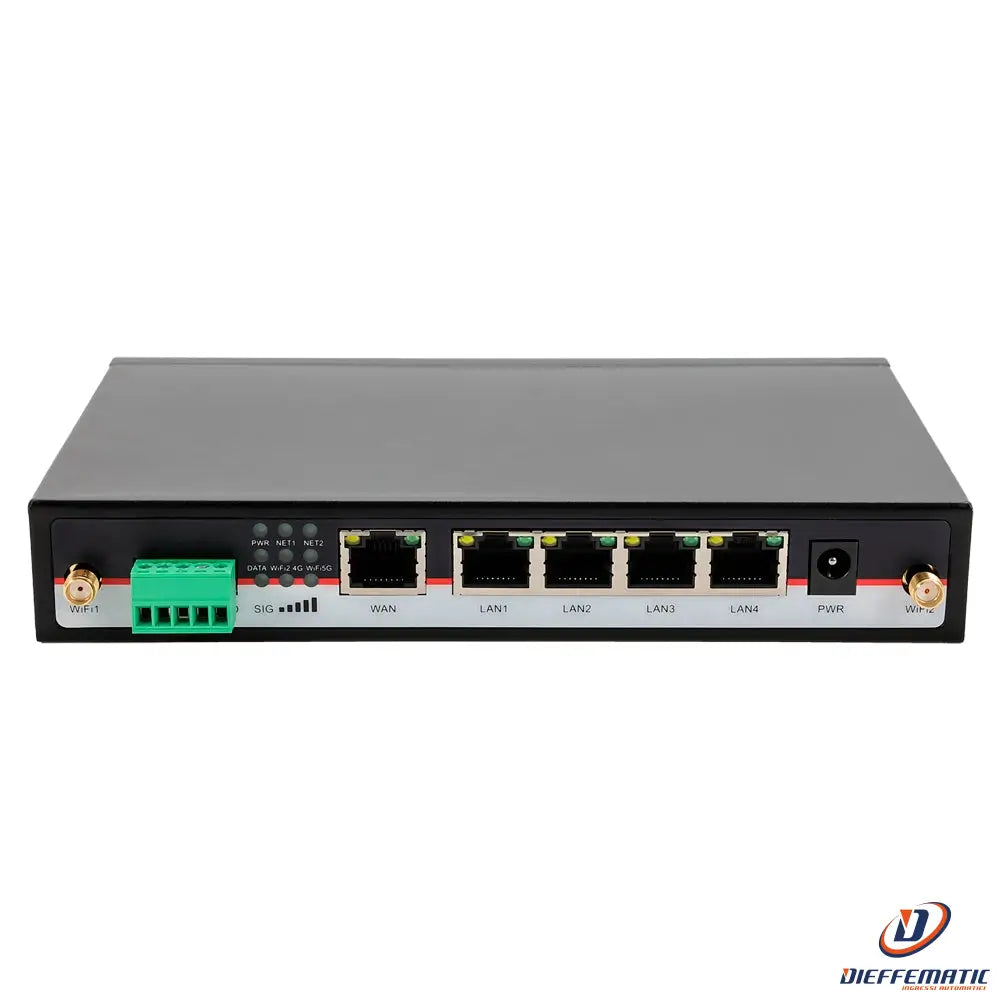

Industrial 5G Router
Model HG-H8923-NREA-CS-W2
SKU: HG-H8923-NREA-CS-W2
• Hongdian Industrial 5G Router
• 5G Sub-6Ghz SA/NSA
• 5 Gigabit RJ45 Ethernet ports
• Dual SIM Dual Modem
• RS232/RS485 ports
• Wi-Fi 802.11b/g/n/ac 2.4GHz-5GHz
DESCRIPTION:
• Hongdian
• Industrial 5G Router
• 2x Dual SIM modems
• Dual-band Wi-Fi 802.11b/g/n/ac 2.4GHz 5GHz
• RS232/RS485 serial ports
• 5 Gigabit RJ45 Ethernet ports (1xWAN+4xLAN)
• Wi-Fi and LTE antennas included
• 5G NSA/SA
• Wall-mounted or desktop
• Industrial 5-pin DC power connector
• 9 to 36V DC power supply, power supply included
• Status LED
SPECIFICATIONS:
Brand
Hongdian
Device
Industrial 5G Router
SIM
2 slots for 4G / 3G 2FF SIM cards (not included)
Dual SIM
Automatic failover in case of weak signal / data limit / roaming / no network
Serial ports
Transparent, Modbus RTU
Port definition: RX, TX, GND (RS-232) , A+, B-, GND (RS-485)
3.5 mm 5-pin female connector
RS-232 transmission speed (300-115200bps), RS-485 (300-115200bps)
Wi-Fi
Wi-Fi 5 802.11ac Dual Band 2.4GHz+ 5GHz 2x2 MIMO
LTE
5G Sub-6Ghz SA/NSA or 2 LTE-A or 1 LTE-A & 1 5G NR SA/NSA
5G and LTE frequencies
NSA/SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/
n75/n76/n77/n78
LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32
LTE TDD: B38/B40/B41/B42/B43
WCDMA: B1/B5/B8
Ethernet
5 RJ45 Ethernet ports 10/100/1000Mbps (1 WAN + 4 LAN)
Antenna connectors
Wi-Fi and LTE (antennas included)
CPU
MIPS1004Kc 880 MHZ
RAM
256MB DDR3
Flash
32MB
Network protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH, DDNS,APN, VPDN, VLAN, QoS, Static Routing, Policy routing, RIP, OSPF and BGP, Failover.
VPN protocols
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
Monitoring and Management
HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP
Security
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List, DDOS prevention, Anti port scanning
Power supply
Industrial 5-pin DC connector 9~36V Power supply included
Power consumption
Idle: 350mA@12vDC
Data connection: 900mA@12vDC
Material
Metal
Protection rating
IP30
Operating temperature
-30° C ~ +75° C
Operating humidity
? 95% (non-condensing)
Installation
Wall-mounted or desktop
Dimensions
28.5 (H) x 177.8 (L) x 105.22 (D) mm
Weight
550 g
Regions
Europe, Middle East, Africa, Korea, Thailand, India, Malaysia
CONTENTS:
• Industrial router
• 2x Wi-Fi antennas
• 4x LTE antennas
• 12V DC power supply
• 1m Ethernet cable
• Wall mounting kit
• Terminal Block 5 Pin
CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:
PDF data sheet
24-month warranty
