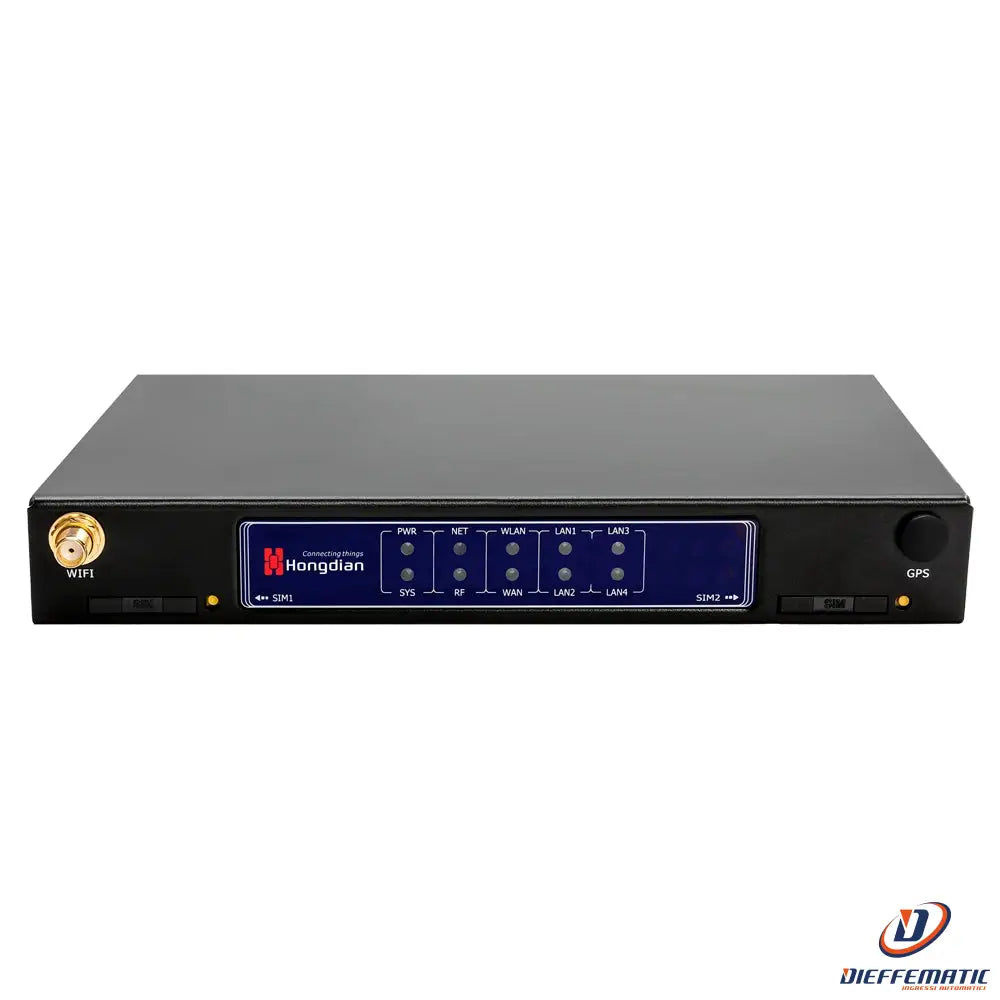

Hongdian HG-H8922-L4EA-CS-WG 4G Industrial Router

4G Industrial Router

Model HG-H8922-L4EA-CS-WG

SKU: HG-H8922-L4EA-CS-WG

• Hongdian 4G Industrial Router

• 4G Cat 4 - GPS

• 5 Fast Ethernet RJ45 ports

• Dual SIM Dual Modem

• RS232/RS485 ports

• Wi-Fi 802.11b/g/n 2.4GHz


DESCRIPTION:

• Hongdian

• 4G Industrial Router with Wi-Fi and GPS

• 5 RJ45 Ethernet ports 10/100 (1x WAN + 4x LAN)

• 2x Dual SIM modems (1x GPS and 1x data)

• Wi-Fi 802.11b/g/n 2.4GHz

• RS232/RS485 serial ports

• Wi-Fi and LTE antennas included

• 4G LTE CAT4

• Wall or desktop mounting

• 5 to 36V DC power supply (12V power supply included)

• Status LED


SPECIFICATIONS:

Brand
Hongdian

Device
4G Industrial Router

SIM
2 slots for 4G / 3G 2FF SIM cards (not included)
1 of the adapters must be used for GPS only

Positioning
Supported technologies: GPS, GLONASS, BeiDou, Galileo
Protocol: NMEA 0183
Coordinates: WEB UI, RMS

Ethernet
5 RJ45 Ethernet ports 10/100/1000Mbps (1 WAN + 4 LAN)

Serial ports
Transparent, Modbus RTU
Port assignment: RX, TX, GND (RS-232), A+, B-, GND (RS-485)
6-pin 3.5 mm female socket connector
RS-232 transmission speed (300-115200bps), RS-485 (300-115200bps)

Wi-Fi
Wi-Fi 4 802.11 2.4GHz
WEP, WPA, WPA2 security
64/128 AES, TKIP encryption

LTE frequencies
4G (LTE-FDD): B1/B3/B5/B7/B8/B20
4G (LTE-TDD): B38/B40/B41
3G: B1/B5/B8
2G: B3/B8

Antenna connectors
Wi-Fi, LTE and GPS (antennas included)

CPU
MIPS 24Kc 580 MHZ

RAM
128MB DDR3

Flash memory
16MB

Network protocols
PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, APN, VPDN, VLAN, QoS, Static Routing, Policy routing, RIP, OSPF,BGP,Failover.

VPN protocols
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard

Monitoring and Management
HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP

Security
NAT, PAT, DMZ, Port Forwarding, IP/Domain/MAC Filter, Access Control List, DDOS prevention, Anti port scanning

Power supply
5~36V DC connector (12V power supply included)

Power consumption
Idle: 200mA@12vDC
Data connection: 550mA@12vDC

Material
Metal

Protection rating
IP30

Operating temperature
-30° C ~ +70° C

Operating humidity
? 95% (non-condensing)

Installation
Wall or desktop mounting

Dimensions
25 (H) x 176 (L) x 105 (D) mm

Weight
540 g

Regions
Europe, Middle East, Africa, Korea, Thailand, India, Malaysia


CONTENTS:

• 4G Industrial Router

• 1x Wi-Fi antenna

• 1x LTE antenna

• 1x GPS antenna

• 12V DC power supply

• 1m Ethernet cable

• Wall mounting kit

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF specification sheet

24-month warranty
