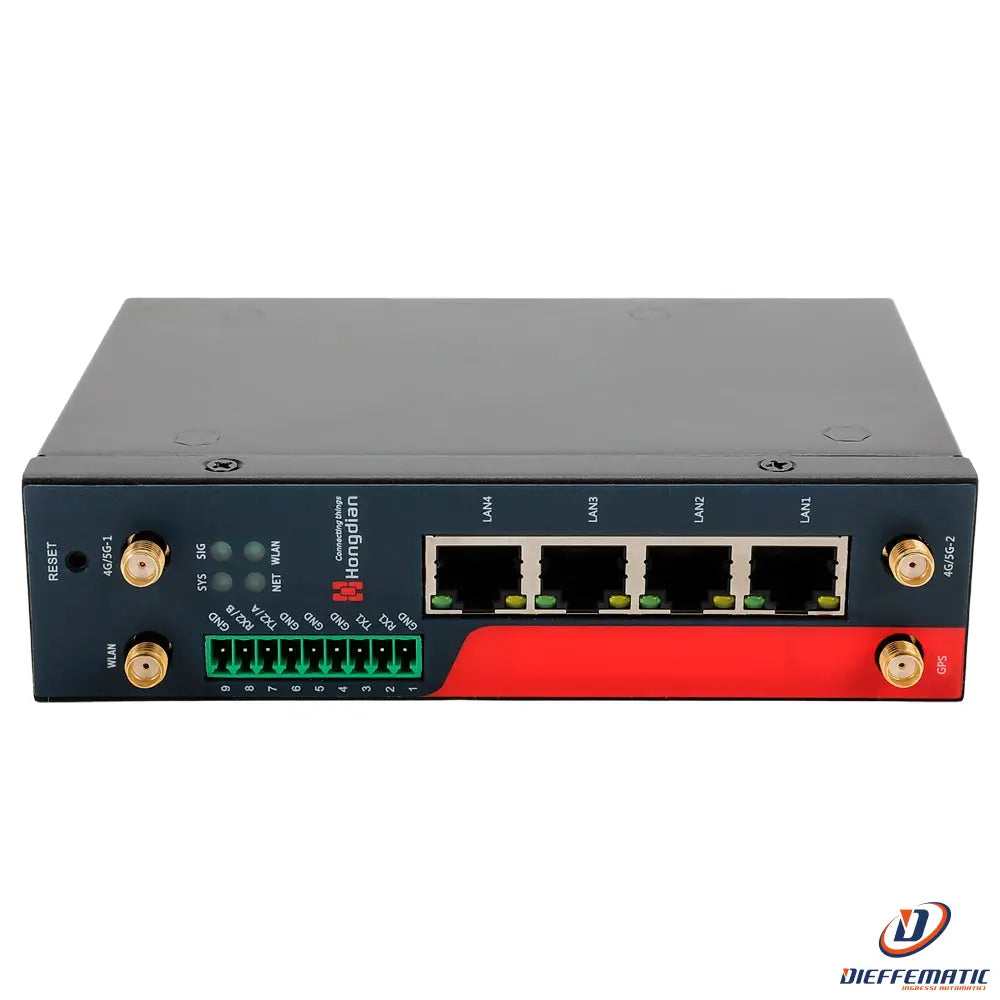

Hongdian HG-H7960-L4EA-CS-W-PSE 4G Industrial Router

4G Industrial Router

Model HG-H7960-L4EA-CS-W-PSE

SKU: HG-H7960-L4EA-CS-W-PSE

• Hongdian 4G Industrial Router

• 4G Cat 4

• 4 PoE+ Ethernet RJ45 10/100/1000 ports

• 2 slots for 4G/3G SIM cards

• RS232/RS485 ports

• Wi-Fi 802.11b/g/n 2.4GHz


DESCRIPTION:

• Hongdian

• 4G Industrial Router with Wi-Fi, GPS and PoE

• 4 RJ45 Ethernet ports, 10/100/1000 (1xWAN+4xLAN)

• 4 PoE ports (ports 1~4) 802.3 af/at

• RS232/RS485 serial ports

• Wi-Fi 802.11b/g/n 2.4GHz

• 4G/3G SIM card slot (card not included)

• LTE 4G CAT4

• Wi-Fi and LTE antennas included

• Wall or desktop installation; DIN rail mounting

• DC power supply, 9 to 54V (12V 1.5A power supply included)

• Status LED


SPECIFICATIONS:

Brand
Hongdian

Device
4G PoE Industrial Router

Ethernet
4 RJ45 Ethernet ports, 10/100 Mbps, LAN or 3 x LAN + 1 x WAN

PoE
Ports 1~4 IEEE 802.3af/at PoE
Total PoE power: 120W

SIM
2 slots for 4G / 3G 2FF SIM cards (not included)

Serial ports
Port pinout: RX, TX, GND (RS-232), A+, B-, GND (RS-485)
9-pin 3.5 mm female socket connector
RS-232 transmission speed (300-115200bps), RS-485 (300-115200bps) REVISION

Wi-Fi
1 x RP-SMA Wi-Fi antenna
Wi-Fi 802.11b/g/n 2.4GHz
WEP,WPA,WPA2 security
64/128 AES, TKIP encryption

LTE frequencies
4G bands 1/3/5/7/8/20/38/40/41

Antenna connector
2 x LTE SMA (220 cm long) (antenna included)

CPU
MIPS 24Kc 580MHZ

RAM
128 MB

Flash
16 MB

Network protocols
PPP, PPPoE, TCP, UDP, IPv4, IPv6, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, APN, VPDN, VLAN, QoS, Static Routing, Policy routing, RIP, OSPF,BGP,Failover.

Monitoring and Management
HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP

VPN protocols
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard

Security
NAT, PAT, DMZ, Port Forwarding, IP/Domain/MAC Filter, Access Control List, DDOS prevention, Anti port scanning

Power supply
DC 9~54V 4-pin industrial connector (12V 1.5A power supply included). A 48V 2A power supply must be used to enable PoE/PoE+ functions.

Material
Metal

Protection rating
IP30

Operating temp.
-30° C ~ +70° C

Operating humidity
0 ~ 95 % (non-condensing)

Installation
DIN rail, wall or desktop

Dimensions
36,6 (H) x 147 (L) x 98 (D) mm

Weight
480 g

Region
Europe, Middle East, Africa, Korea, Thailand, India, Malaysia


CONTENTS:

• 4G Industrial Router

• 12V 1.5A DC power supply

• LTE and Wi-Fi antennas

• Wall mounting kit

• DIN rail mounting kit

• 1m Ethernet cable

CLICK THE LINKS FOR THE MANUFACTURER'S DOCUMENTATION:

PDF datasheet

24-month warranty
